Performing a Reset

You can reset the gauge settings back to the default settings by performing a gauge reset.

Note: Performing a reset permanently deletes all of the saved parameters from the gauge

and replaces the settings with default values.

To perform a reset, follow these steps:

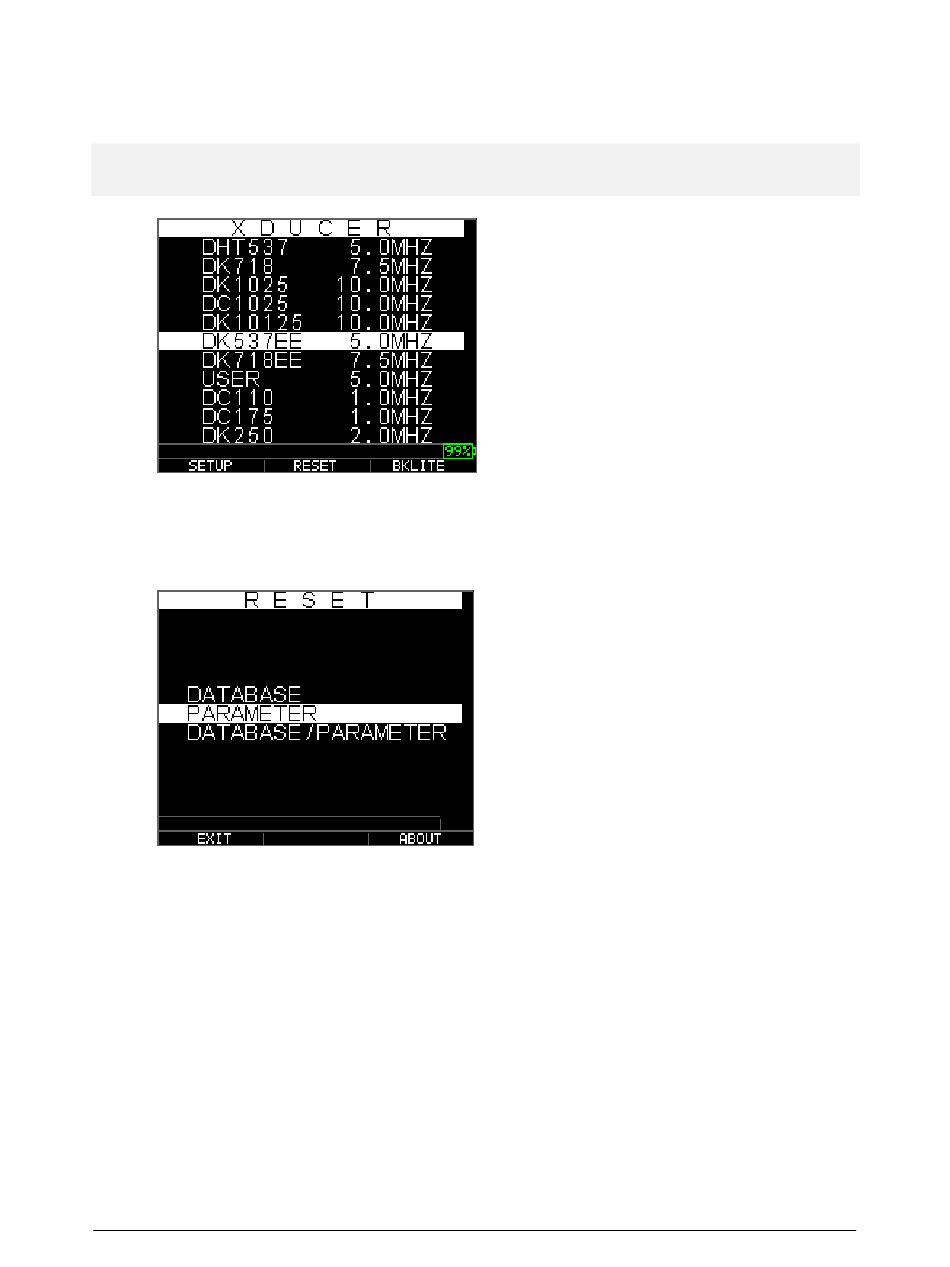

1. From the Home screen, press the F1 – Reset key. The following Reset screen

appears:

2. Select the Database, Parameter, or Database/Parameter option by using the up

and down arrow keys and press the Menu Ok key to make a selection. See the

following sections to perform each of these reset options.

Performing a Database Reset clears all the files in the database and keeps the first three:

Linear, Row increment and Col increment database files with cleared readings. All the

user created files in the database will be cleared and deleted. To perform a Database

Reset, follow these steps:

1. From the Home screen, press the F1 – Reset key. The Reset screen appears.

2. Select the Database option and press the OK key. The following screen appears:

TKG250- EN V2.4 11/13
