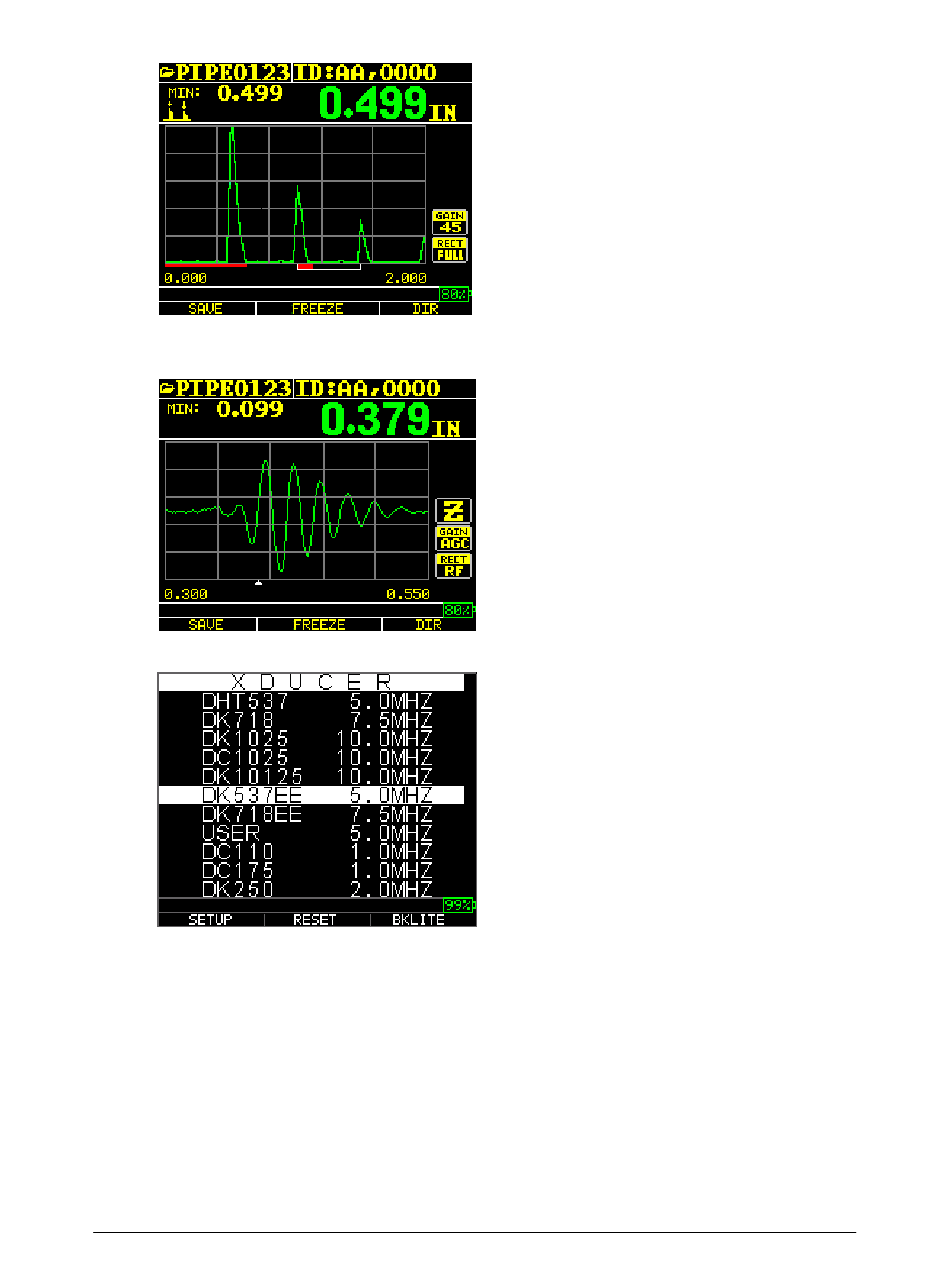

Color Waveform in Echo-to-Echo, filename, id, minimum, large thickness value, Echo-to-Echo,

range, echoes, blanking, gain, rectification, battery life, save, freeze and directory.

RF in Zoom mode "Z"

The top part of the display screen shows the File name, ID number, AA, and 0001 for

grid column and row. The lower part of the display acts as an interactive tool that allows

you to decide how you want to proceed with the information that is displayed on the

screen. The middle part of the screen shows the thickness value, In, mm or usec, Echo-to-

Echo symbol, LOS for loss of signal, Freeze, Fast Min or Max, Alarm indicator,

Differential mode, Low, Med or High gain and percent remaining battery life.
