Foscam FI9803EP Quick Installation Manual

Quick Installation Guide

（For Windows & Mac OS）

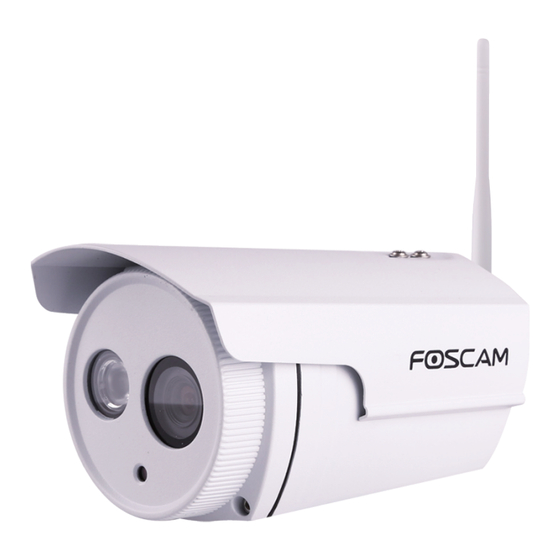

Outdoor HD P2P IP Camera
Model: FI9803EP Model: FI9803P
Model: FI9903P
V4.2
EQ990301
3
1. Enable the DHCP feature of your router (Enabled by default
normally), then open the IP Camera Tool program. It should
display the camera's IP address in your LAN (Local Area Network).
2. Double click the camera list here, and your default browser
will open up to the camera's login page. When logging in for the
first time, you will need to download and install the add-on.
Take Microsoft Internet Explorer as an example. For Google
Chrome, Apple Safari, or Mozilla Firefox, please refer to the User
Manual.
Note：
Doesn't support 64-bit browser.
ShenZhen Foscam Intelligent Technology Co., Ltd
www.foscam.com
1

Package Contents

IP Camera Power Adapter Resource CD
Ethernet Cable Mounting Bracket Wi-Fi Antenna
(only FI9803P)
Quick Installation Guide
（For Windows & Mac OS）
Outdoor HD P2P IP Camera
Model: FI9803EP Model: FI9803P
Model: FI9903P
Quick Installation Guide Warranty Card
Access the Camera
3. After installing the add-on, refresh the browser and
click Login.
Anonymous Http://192.168.1.100:88
4. When setting up your camera for the first time, it will request
that you modify the default username and/or password if both are
still set to default. Input the New username, New password and
Confirm the password, click Modify to complete the
modification. You will now use the new username and password
to log in to the camera in the future.
Click Install
Hardware Introduction
Physical Description
Antenna
LENS
LAN
Infrared Lamp Array
Induction IC Power
Reset Button
Differences
Model Wireless PoE(Power over Ethernet)
FI9803EP ×
√
×
FI9803P √
×
FI9903P ×
Default user is admin with no
password
Main stream offers the highest
quality video while Sub stream
offers less quality, but also less
delay when viewing.
Input the New username, Input the New username,
New password and New password and
Confirm the password. Confirm the password.
Hardware Connection
WPS
1. Mount the antenna and make it stand vertically(Only for the
device with external antenna).
2. Connect the camera to the LAN network (Router or Switch)
via ethernet cable.
3. Connect the power adapter to the camera.
5. After logging in, you should see live video on the interface.
Notes:
After logging in for the first time, it will go to "Setup Wizard"
automatically. Please set the basic parameters, such as camera
name, camera time, wireless settings and so on.
If you forget your username or password, you can press and
hold the reset button on the cable of the camera for 5 seconds.
This resets the camera to factory defaults.
If you want to access your camera over wireless or the Internet,
please continue with the setup by following the Wireless and
Remote Access steps below.
2

Software Installation

1. Insert the CD into the CD drive of your computer.
2. Go to the folder "IP Camera Search Tool" and find the folder "For
Windows OS"or "For Mac OS". Copy and paste the IP camera tool file
to your computer, or drag it onto your desktop.
Shortcut icon for Windows OS Shortcut icon for Mac OS
Notes:
If your computer ( Windows OS ) supports autorun function,
you can find the corresponding file in the opened control panel.
If your computer doesn't have CD drive, you can download
the IP camera tool from our website for free.
4

Wireless Connection

(For FI9803P)
1. Choose "Settings" on the top of the camera page, then go to
the "Network - Wireless Settings" section on the left side of
the screen, then click "Scan".
Click through different pages to see
other wireless networks if there are
more than 10.
