SERVICE MANUAL
EN

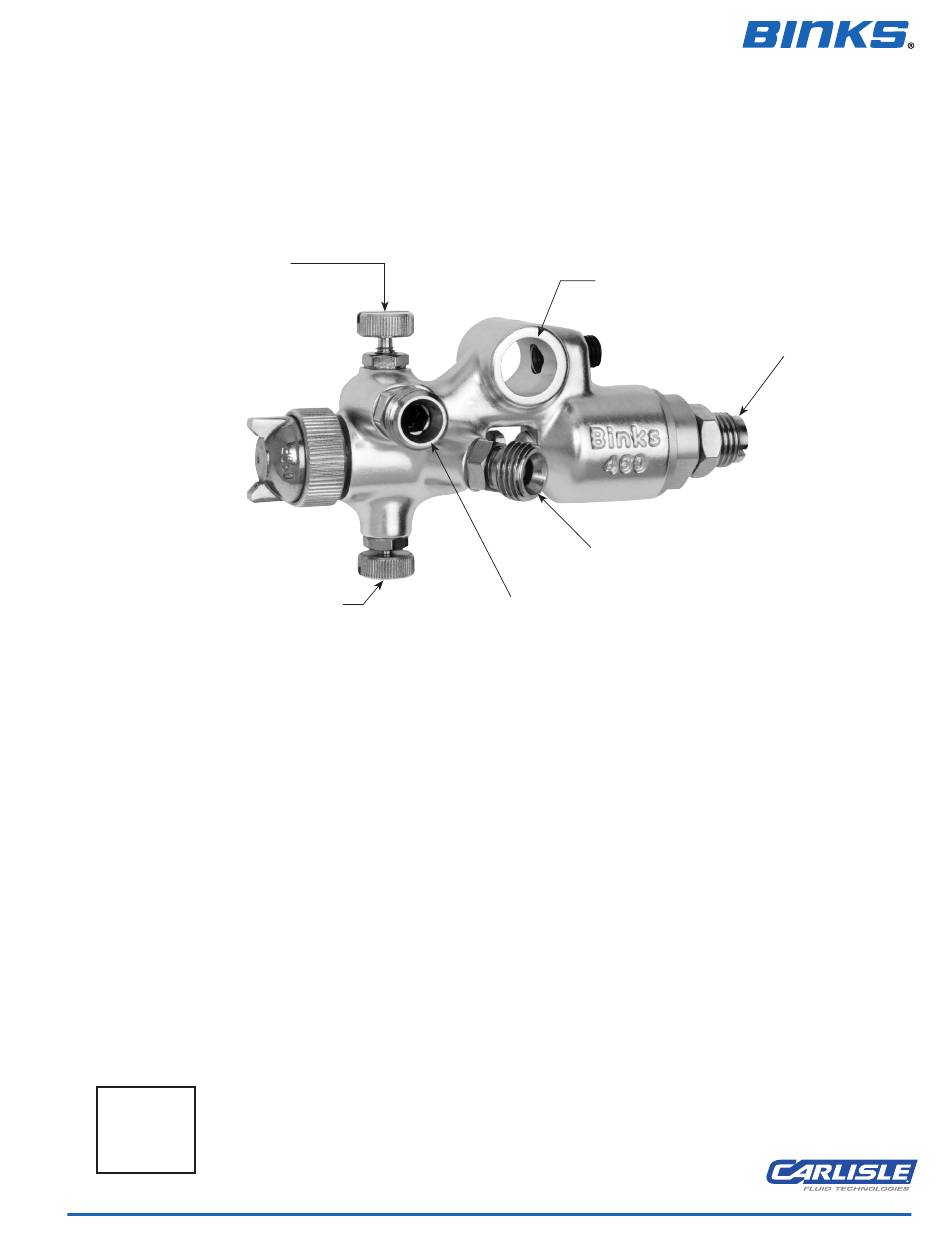

LIGHTWEIGHT AUTOMATIC SPRAY GUN
Clockwise to reduce pressure;
Counterclockwise to increase pressure.
Clockwise to reduce pressure;
Counterclockwise to increase pressure.
DESCRIPTION
The Binks 460 Automatic Spray Gun is a small precision
gun designed with accuracy in mind, for ease of fitting
to existing automatic and semi-automatic machine.
Its compact dimensions also enable the gun to be
installed neatly and at close quarters, where the standard
range of automatics cannot be accommodated.
FEATURES
• Aluminum alloy body with brass air nozzle.
• Stainless steel needle valve and springs.
• Both gun operation and spray variation is controlled
from a single air supply.
• Control valves for atomization fan and air flow.
• No lag, instant piston controlled "on and off".
• A range of fluid nozzles for applying many liquid coatings.
PROP 65 WARNING
CA PROP
65
WARNING: This product contains chemicals known
to the State of California to cause cancer and
birth defects or other reproductive harm.
77-2019-R4.2 (8/2017)
BINKS MODEL 460
1 / 8
1/2" DIA. MOUNTING HOLE
FLUID INLET
1/4 NPS (m)
AIR INLET
1/4 NPS (m)
GUN ASSEMBLY ORDERING INFORMATION
6401-1800-5
460 Gun J920SS-J92P with .020" Fluid Nozzle
6401-1900-5
460 Gun J930SS-J92P with .030" Fluid Nozzle
6401-2000-5
460 Gun J940SS-J92P with .040" Fluid Nozzle
6401-2100-8
460 Gun K960SS-K92P with .060" Fluid Nozzle
SPECIFICATIONS:
Max Air Pressure: 100 PSI/6.8 Bar
Min Air Pressure: 50PSI/3.4 Bar
Max Fluid Pressure: 100 PSI/6.8 Bar
Air Volume Requirements: 20 SCFM Max
Gun Body: Aluminum Forging
Fluid Path: Stainless Steel
Fluid Inlet: 1/4" NPS (M)
Air Inlet: 1/4" NPS (M)
Gun Weight: .43 Ibs/.2kg
Gun Mounting Hole: 1/2" Dia.
FLUID NEEDLE
ADJUSTMENT
www.carlisleft.com
