MuxLab Prodigital DisplayPort 1.2A Quick Installation Manual

Specifications

Environment DisplayPort 1.2a
Devices Installation of DisplayPort or Mini DisplayPort output source
equipment with DisplayPort input monitors
Transmission Transparent to the user.
Video Bandwidth 21.6 Gbps (5.4Gbps per lane)
Signals DisplayPort 1.2a & Dual mode DisplayPort protocol
Transport Supports Multi-Stream Transport (MST) of up to eight streams
Resolution Up to 3840 X 2160 @ 60 FPS
HDCP Revision 1.4 compliant.
Audio LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
Connectors DisplayPort receptacle.
Cabling Requirement Input port : 1x Standard DisplayPort Cable
Output port : 2x Standard DisplayPort Cables
(Select appropriate cable length for video resolution selected)
Input & Output Link: Blue
LEDs
One (1) 110-240V/5VDC , 2A power supply
Power Supply
Operating: 0° to 40°C (32° to 104°F)
Temperature
Storage: -20° to 60°C (-4° to 185°F)
Humidity Maximum 90% (non-condensing)
Enclosure Black metal enclosure
Dimensions 4.33" x 2.95" x 1.00" (110 mm x 75 mm x 25 mm)
Weight 0.55lbs (250g)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500506 DisplayPort 1.2a 1x2 Hub, MST
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc. 2016
Fax: (514) 905-0589
URL: www.muxlab.com
94-000848-A SE-000848-A
DisplayPort 1.2a 1x2 Hub, MST (500506)
Quick Installation Guide
Overview
The DisplayPort 1.2a 1×2 Hub, MST (500506) is a device that allows you to
extend different DisplayPort 1.2a content from one DisplayPort connector to two
monitors. The hub supports up to 4K (3840 X 2160) video and HD audio, and
supports Multi-Stream Transport (MST) of up to eight streams. The hub is HDCP
1.4 compliant and features LED diagnostics. Applications include; commercial and
residential AV systems, classroom projector systems, digital signage, boardroom
systems, collaborative PC systems, medical information systems.
Pre-Installation Check

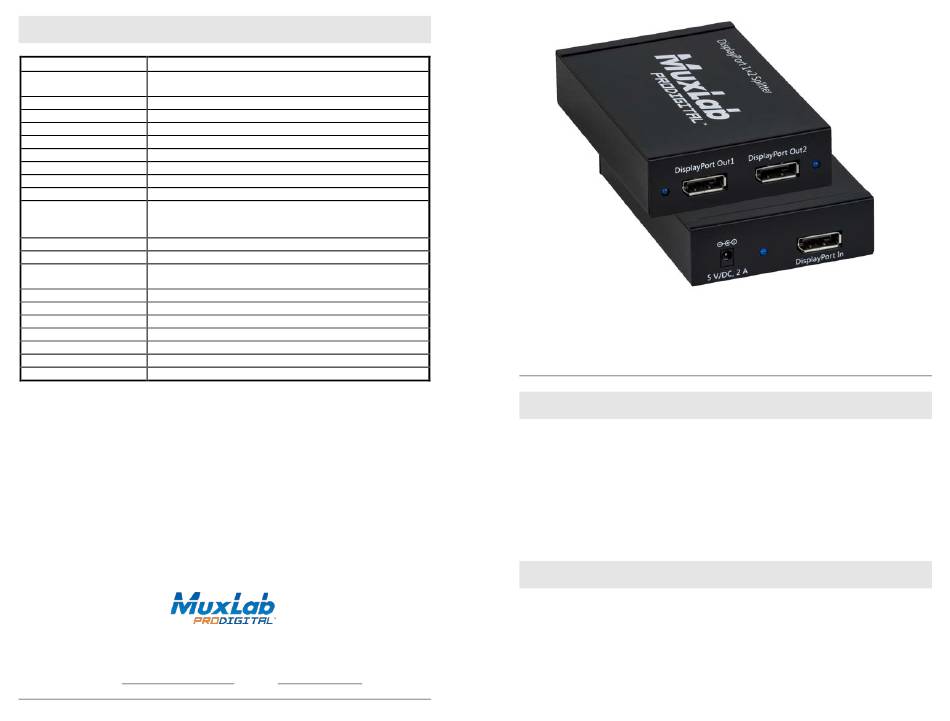

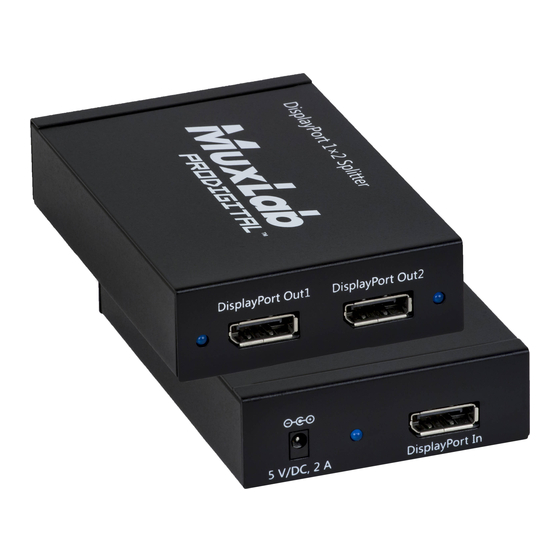

Identify the connectors as indicated on the product diagram above. LEDs are
located on the front and rear of the unit, next to each connector to indicate traffic.
