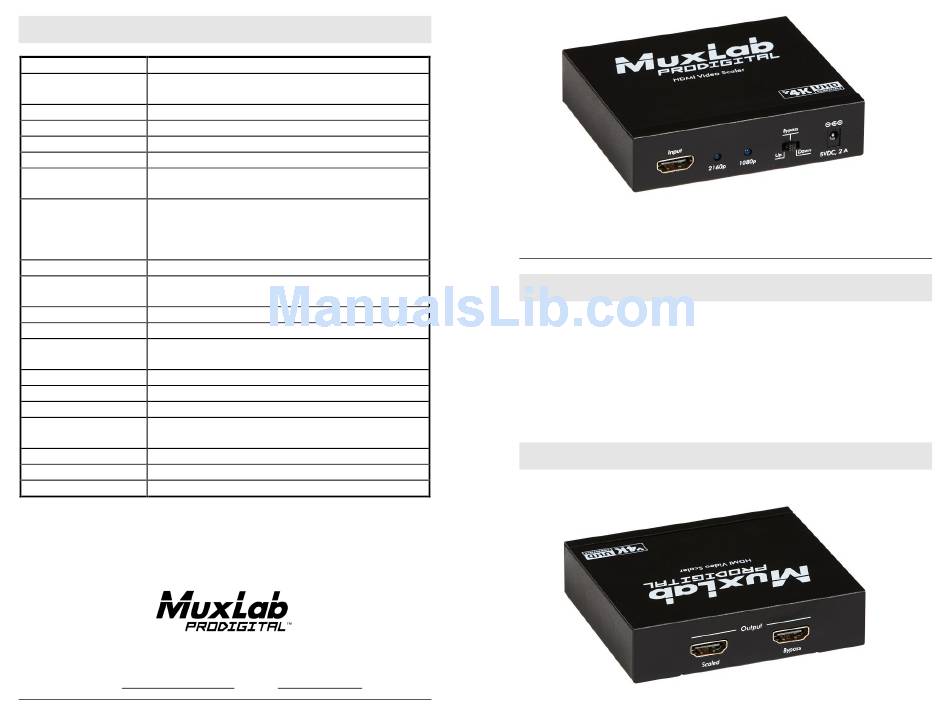

MuxLab UHD-4K Quick Installation Manual

Specifications

Environment HDMI 1.4 (3D)
Devices DVD/Blu-Ray, plasma, projectors, monitors, TV, PC,
laptops
Transmission Transparent to the user
25 to 340 MHz
Frequency
HDMI 1.4 protocol
Signals
Connectors HDMI Type A 19-pin female
LEDs One (1) 2160p: Blue
One (1) 1080p: Blue
Resolution 1080p @ 24 fps
3840 X 2160 @ 24 fps
All other resolution and refresh rate cannot be scale
but will be transmit untouched
Color 8, 10 & 12 bit
Audio LPCM, Dolby Digital, DTS, Dolby Digital Plus,
Dolby True-HD, DTS-HD Master Audio
HDCP Revision 1.3
Cable HDMI Cable
Temperature Operating: 0° to 40°C
Humidity: up to 90% non-condensing
Enclosure Metal enclosure
3.74" x 3.27" x 0.91" (95 mm x 83 mm x 23 mm)
Dimensions
Weight 1.0 lbs (0.45 Kg)
Power Supply 5VDC, 2A with interchangeable blade for US, UK
and Euro
Compliance Regulatory: FCC, CE, RoHS
2 years
Warranty
500433 HDMI Video Scaler, UHD-4K
Order Information
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc. 2015
Storage: -20° to 60°C
Fax: (514) 905-0589
URL: www.muxlab.com
94-000789-A SE-000789-A
HDMI Video Scaler, UHD-4K (500433)
Quick Installation Guide

Overview

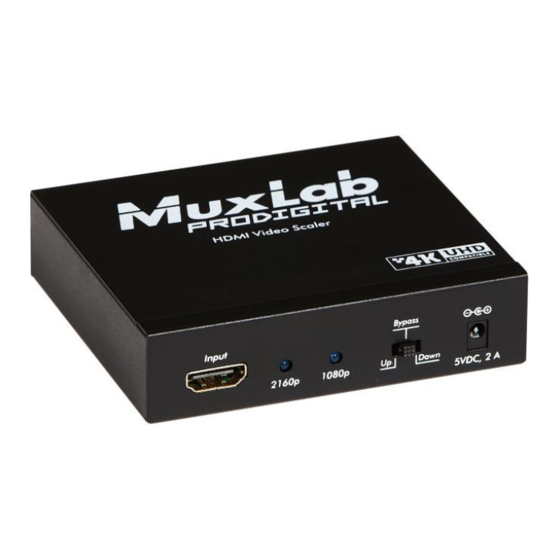

The HDMI Video Scaler (500433) allows one (1) HDMI sources to be
distributed to one (1) HDMI display. The scaler supports up to 4K (3840 x
2160), 8-bit color and HD audio. The scaler can upscale a 1080p/24Hz
video to 4K/24Hz or downscale a 4K/24Hz to 1080p/24Hz. The scaler is
HDCP 1.3 compliant and features LED diagnostics. Applications include;
commercial and residential AV systems, classroom projector systems,
digital signage, boardroom systems, collaborative PC systems, medical
information systems.

Pre-Installation Check

Identify the connectors as indicated on the product
