Assembly instructions

Look carefully at all the illustrated assembly steps before the assembly and do the assembly according
to the given order.

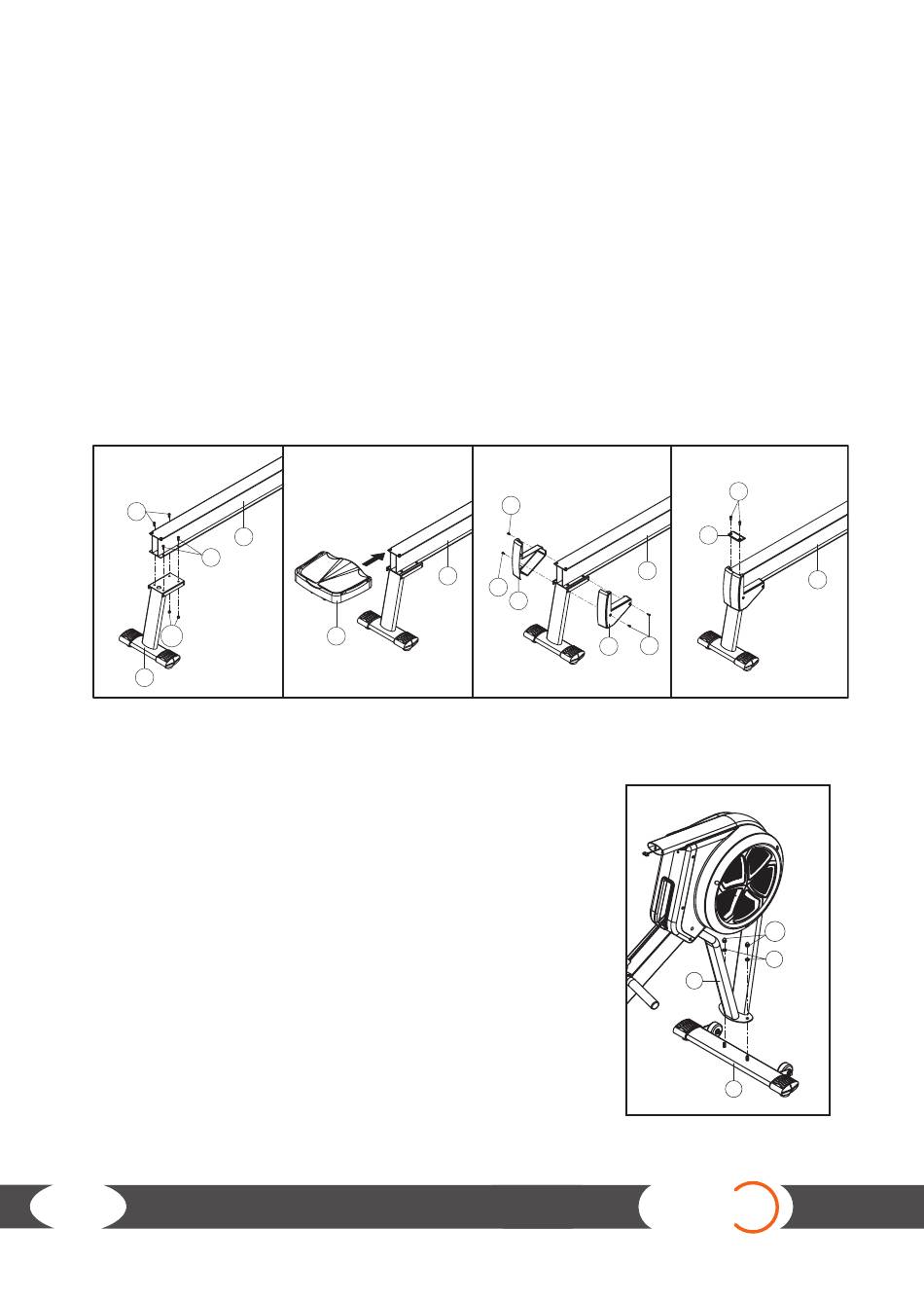

Step 1: Rear base & mono rail
A1. Mount the rear base (1) on the mono rail (2) with M6 X 16L hexagon screws (80) and two M6
Nylon nuts (101). Tighten the screws.
A2. Slide the seat pad (29) on the mono rail (2).
A3. Mount the left (30L) and right rear cover (30R) with four M4 X 12L screws (90).
A4. Mount the bumper (47) on the mono rail (2) with two M6 X 16L hexagon screws (80). Please pay
attention to that the left (30L) & right rear cover (30R) are correctly positioned. Then tighten all
screws.
A 1
80
2
80
101
1
Step 2: Front base & computer assembly
B1. Mount the front base (5) on the front frame (4) with two 3/8"
spring washers (94) and two 3/8" caps for nuts (103). Tighten all
screws.
12
A 2
2
29
A 3
90
2
90
30L
90
30R
B 1
A 4
80
47
2
103
94
4
5
ROW X
B 2
32
