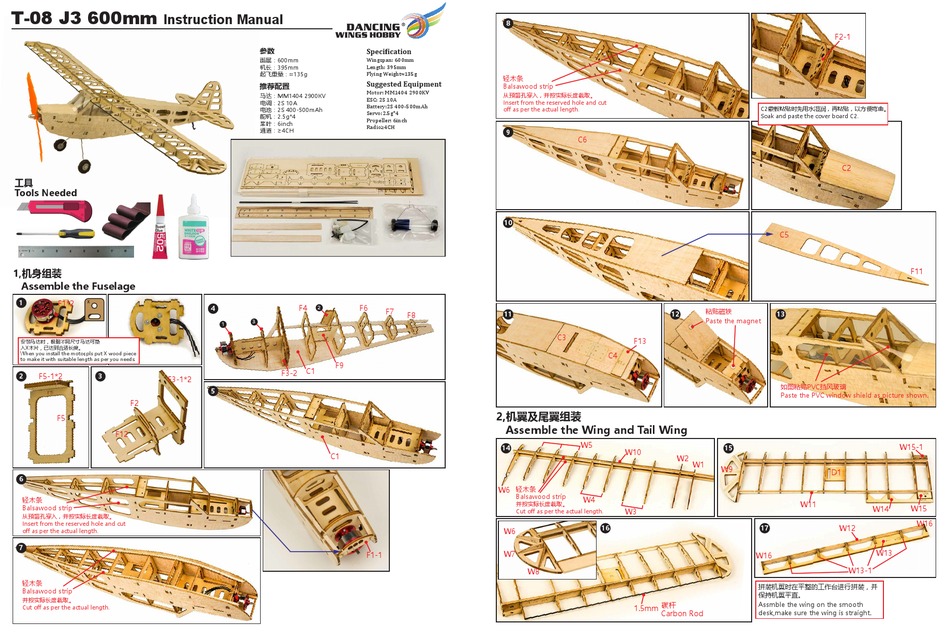

Dancing Wings Hobby T-08 J3 Instruction Manual

T-08 J3 600mm
Instruction Manual
工具
Tools Needed
1,机身组装
Assemble the Fuselage
1 F1*2
X
安装马达时，根据不同尺寸马达可垫
入X木片，已达到合适长度。
When you install the motor,pls put X wood piece
to make it with suitable length as per you needs.
2 F5-1*2 3
F3-1*2
F2
F5
F12
6
轻木条
Balsawood strip
从预留孔穿入，并按实际长度截取。
Insert from the reserved hole and cut
off as per the actual length.
7
轻木条
Balsawood strip
并按实际长度截取。
Cut off as per the actual length.
Wingspan: 600mm
参数
Speci�ication
Length: 395mm
翼展：600mm
Flying Weight≈135g
机长：395mm
起飞重量：≈135g
Motor: MM1404 2900KV
Suggested Equipment
推荐配置
ESC: 2S 10A
Battery:2S 400-500mAh
马达：MM1404 2900KV
Servo:2.5g*4
电调：2S 10A
Propeller: 6inch
电池：2S 400-500mAh
Radio≥4CH
舵机：2.5g*4
桨叶：6inch
通道：≥4CH
F4 F6
4 2
F7
3
1
F9
C1
F3-2
5
C1
F1-1
8
轻木条
Balsawood strip
从预留孔穿入，并按实际长度截取。
Insert from the reserved hole and cut
off as per the actual length.
9
C6
10
11
F8
C3
2,机翼及尾翼组装
Assemble the Wing and Tail Wing
W5
14
W6 轻木条
Balsawood strip
W4
并按实际长度截取。
Cut off as per the actual length.
W6
W7
W8
C2蒙板粘贴时先用水湿润，再粘贴，以方便弯曲。
Soak and paste the cover board C2.
粘贴磁铁
12 13
Paste the magnet
F13
C4
15
W10
W2
W1
W9
W3
16 17
W16
拼装机翼时在平整的工作台进行拼装，并
保持机翼平直。
碳杆 Assmble the wing on the smooth
1.5mm
Carbon Rod desk,make sure the wing is straight.
F2-1
C2
C5
F11
如图粘贴PVC挡风玻璃
Paste the PVC window shield as picture shown.
W15-1
D1
W11
W14 W15
W16
W12
W13
W13-1
