Dancing Wings Hobby S23 1.2M Piper J3 Cub Instruction Manual

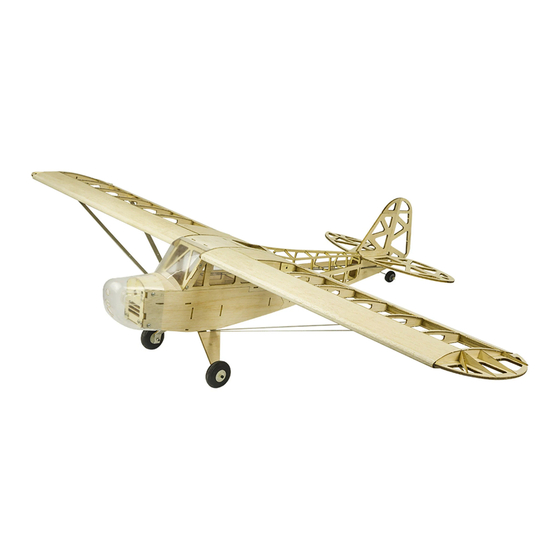

S23 1.2M Piper J3 Cub
散件 KIT

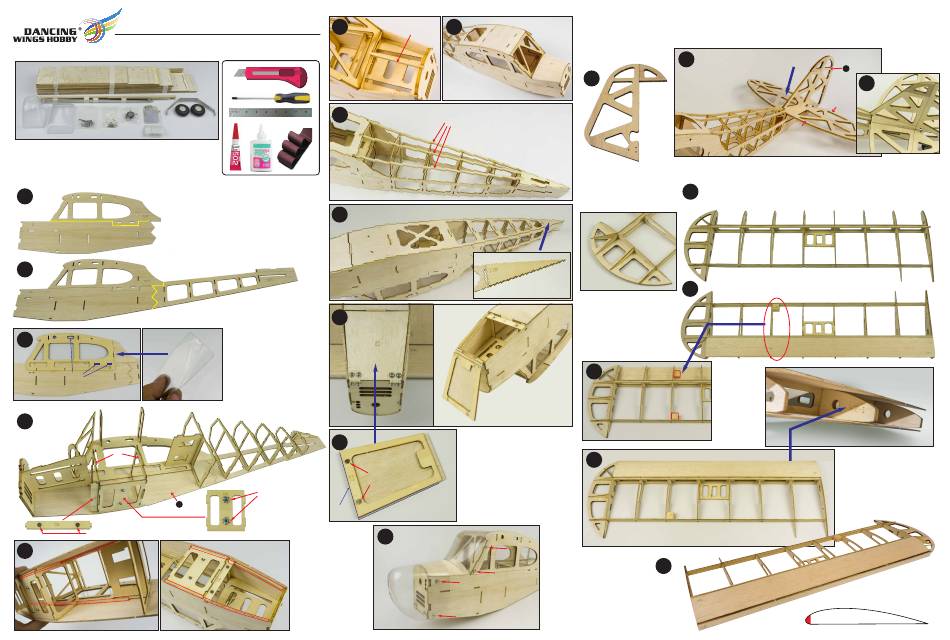

机身组装
Assemble the Fuselage
第一步拼装侧板，C1，C1-1，C1-2按图
1
示粘贴在一起，粘贴时保持平整，左右2
C1-2 片相同拼装。
The first step is to assemble the side
panels. C1, C1-1, and C1-2 are pasted
C1 together as shown in the figure. They
are kept flat when pasted, and the
two pieces at left and right are
assembled in the same way.
2
3 C2
中间
In the middle
对齐
撕掉保护膜
Align
Remove the
protective film
F11
F11
F4
4
C4
F10
F2
F1*2 F3
F14
3
C6
磁铁 Magnet
5
6

Instruction Manual

工具 Tools Needed
8
9
C3-1
C1-1
11
PVC片粘在侧板和C2中间，
粘之前撕掉保护膜。
The PVC sheet is stuck in
the middle of the side
plate and C2, and the
protective film is peeled
off before sticking.
F5
F6
F7
F8 F9
F13
10
C3
磁铁
C7 Magnet
爪牙螺母
Claw nut
F12 对齐
Align
12
拼装另一边侧板，并在
图示位置嵌入3x3mm
轻木条，胶水固定。
Assemble the other
side panel and
embed the 3x3mm
balsa wood strip in
the position as
picture shown,finally
glue it.
3X3mm轻木
7
Balsawood
C5-1
C5
M1
3X3mm轻木
Balsawood
此处按实际长度截取
Cut here by actual length
F13
F15
背面
back
此处磁铁安装时与C6处磁铁为相吸状态。
When the magnet is installed, it is in
a state of attraction with the magnet
at C6.
调整好头罩位置后，用自攻螺丝固定
头罩到机身上。
After adjusting the position of the
cowling, fix the cowling to the
body with self-tapping screws.
头罩组装
Cowling Installation
自攻螺丝
Self-tapping screws
自攻螺丝
Self-tapping screws
机翼，尾翼组装
水平尾翼和垂直尾翼在机身尾部
Assemble the Wing and Tail
调整好后，用胶水粘合固定。
尾翼组装
Assemble the Tail
14
R2-1
13
机翼组装
机翼组装参照机翼1：1图纸进行，并在平整
Assemble the Wing
工作台上进行组装，保持机翼平直。
16
The wing is assembled as per the 1:1
drawing,and assembled on the leveling table
to keep the wing straight.
W5
L1
W7
W8
17
底面 Bottom
WM2
翻转
Turn over
18
顶部 Top
19
20
粘贴机翼前缘L3并按机翼弧
度打磨成弧形
The leading edge of the wing
is polished to an arc according
to the curvature of the wing.
After the horizontal tail and the
vertical tail are adjusted at the rear of
the fuselage,they are glued and fixed.
13
15
R1
E2
F13-1
E1
F13-1打磨成机身一体的弧度
后再粘贴到尾部。
F13-1 is polished into the
arc of the fuselage and
then pasted to the tail.
W2-1
机翼前缘
L3
Leading edge of the wing
