Dancing Wings Hobby E23 ICE CREAM 220 Instruction Manual

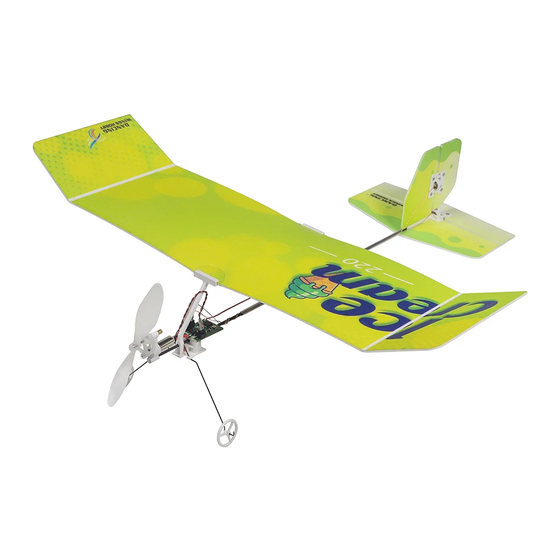

E23 ICE CREAM 220
飞行参数
翼展: 220mm
机长: 220mm

Specification

起飞重量≈ 6.8g
飞机材质：高强度pp发泡板材、abs工程塑料、碳纤维
动力组：412空心杯减速组
接收机：微型三通道电磁舵接收机（内置电调）
电池：3.7V 40-60mAh 锂电池
舵机：0.2g 电磁舵*2pcs
Material: high-strength PP foam board, ABS engineering plastic, carbon fiber
Power system: 412 brushed motor gearbox
Receiver: Micro 3-CH electromagnetic servo receiver (built-in ESC)
Battery: 3.7V 40-60mAh lithium battery
Servo: 0.2g electromagnetic servo *2pcs
1
4
Instruction Manual
Wingspan: 220mm
Length: 220mm
Flying Weight≈ 6.8g
不干胶贴片

Self-adhesive patch

不干胶贴片
Self-adhesive patch

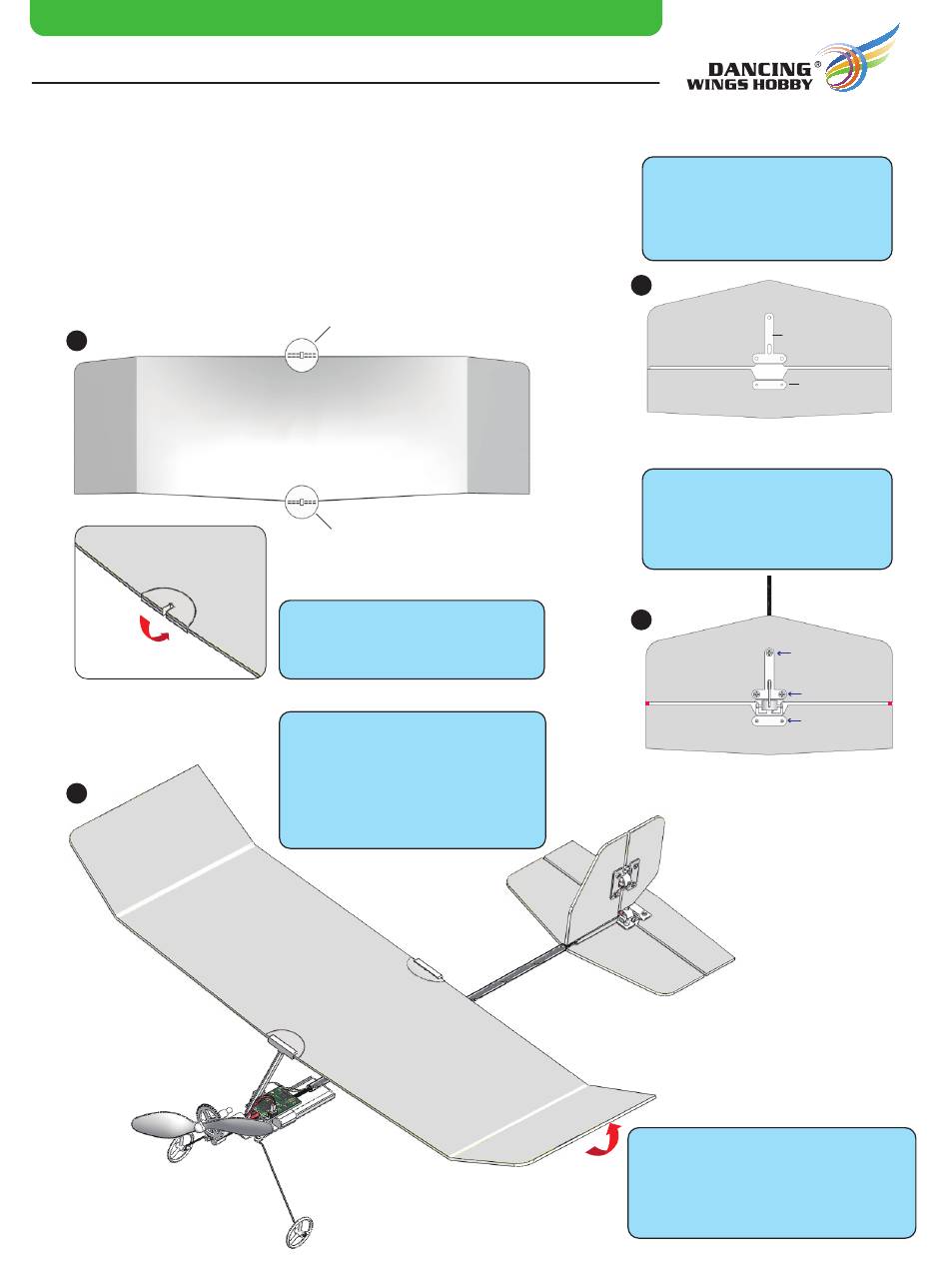

不干胶贴片对准机翼上的缺口粘贴。
Align the adhesive patch with the
notch on the wing and stick it on
轻捏机翼前后缘使机翼上表面隆起，
然后机翼装入机身卡槽。
Gently pinch the front and rear
edges of the wing to make the
surface of the wing bulge, and
then install the wing into the
fuselage slot.
不干胶贴片对准尾翼上的螺丝孔。在
背面粘贴 。
Align the adhesive patch with the
screw holes on the tail wing. Paste
on the back.
2
不干胶贴片
Self-adhesive patch
不干胶贴片
Self-adhesive patch
箭头位置螺丝固定到电磁舵上。红点
处用美工刀切除。
Fix the screw marked by the arrow
to the electromagnetic servo. Cut
off the red dots with an art knife.
3
背面
Reverse side
延白色辅助线弯折翼尖，左右相同操作，
保持对称。
Extend the white auxiliary line to bend
the wing tip, operate left and right
the same way, maintaining symmetry.
