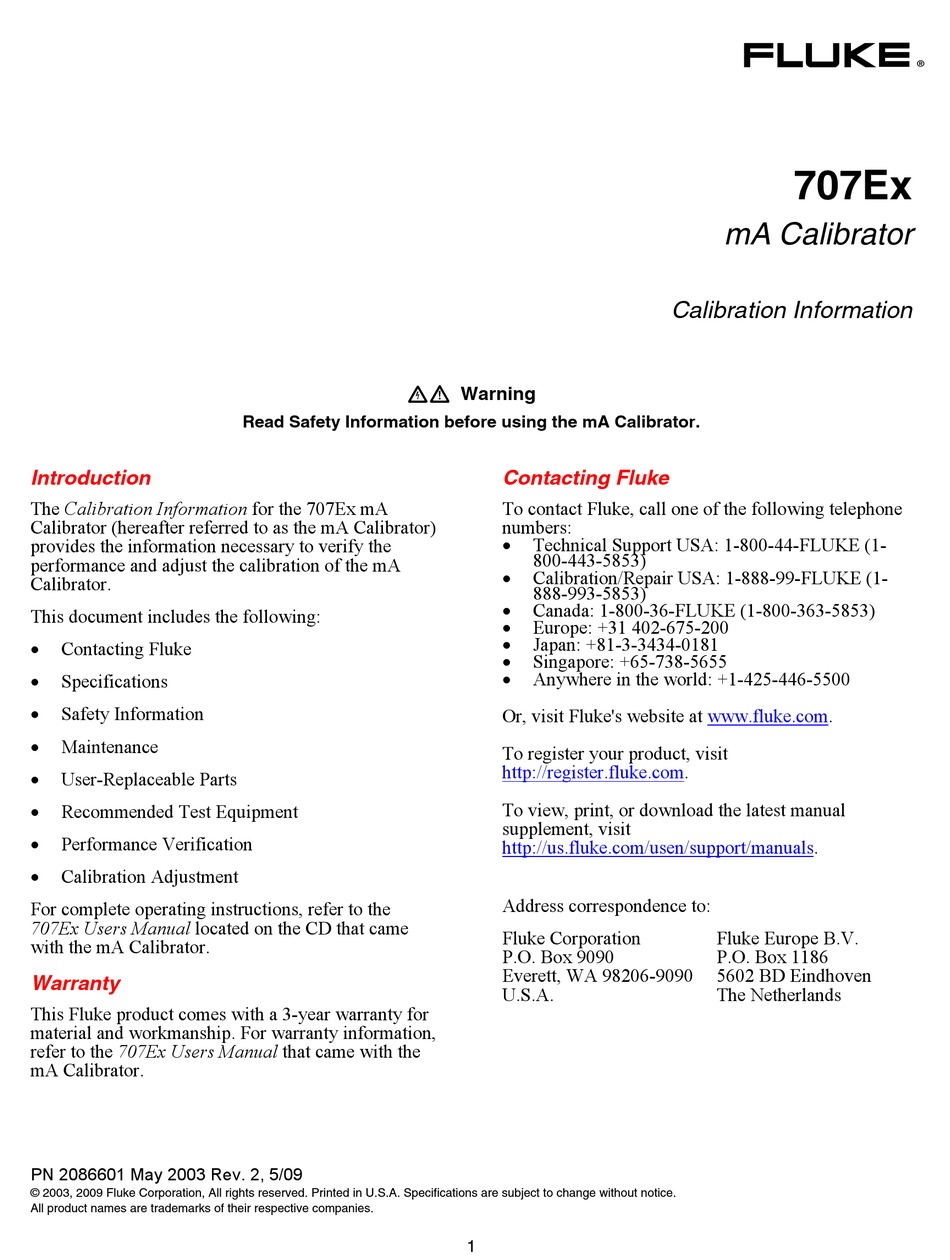

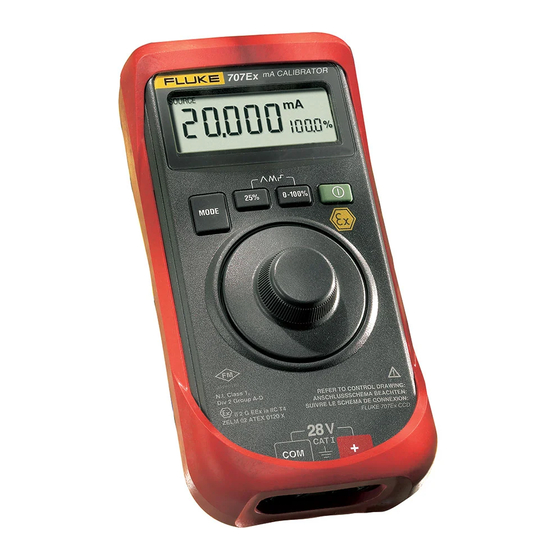

Introduction
The Calibration Information for the 707Ex mA
Calibrator (hereafter referred to as the mA Calibrator)
provides the information necessary to verify the
performance and adjust the calibration of the mA
Calibrator.
This document includes the following:
•
Contacting Fluke
•
Specifications
•
Safety Information
•
Maintenance
•
User-Replaceable Parts
•
Recommended Test Equipment
•
Performance Verification
•
Calibration Adjustment
For complete operating instructions, refer to the
707Ex Users Manual located on the CD that came
with the mA Calibrator.
Warranty
This Fluke product comes with a 3-year warranty for
material and workmanship. For warranty information,
refer to the 707Ex Users Manual that came with the
mA Calibrator.
PN 2086601 May 2003 Rev. 2, 5/09
© 2003, 2009 Fluke Corporation, All rights reserved. Printed in U.S.A. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
XW Warning
Read Safety Information before using the mA Calibrator.
Contacting Fluke
To contact Fluke, call one of the following telephone
numbers:
•
Technical Support USA: 1-800-44-FLUKE (1-
800-443-5853)
•
Calibration/Repair USA: 1-888-99-FLUKE (1-
888-993-5853)
•
Canada: 1-800-36-FLUKE (1-800-363-5853)
•
Europe: +31 402-675-200
•
Japan: +81-3-3434-0181
•
Singapore: +65-738-5655
•
Anywhere in the world: +1-425-446-5500
Or, visit Fluke's website at www.fluke.com.
To register your product, visit
http://register.fluke.com.
To view, print, or download the latest manual
supplement, visit
http://us.fluke.com/usen/support/manuals.
Address correspondence to:
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
1
707Ex
mA Calibrator
Calibration Information
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
®
