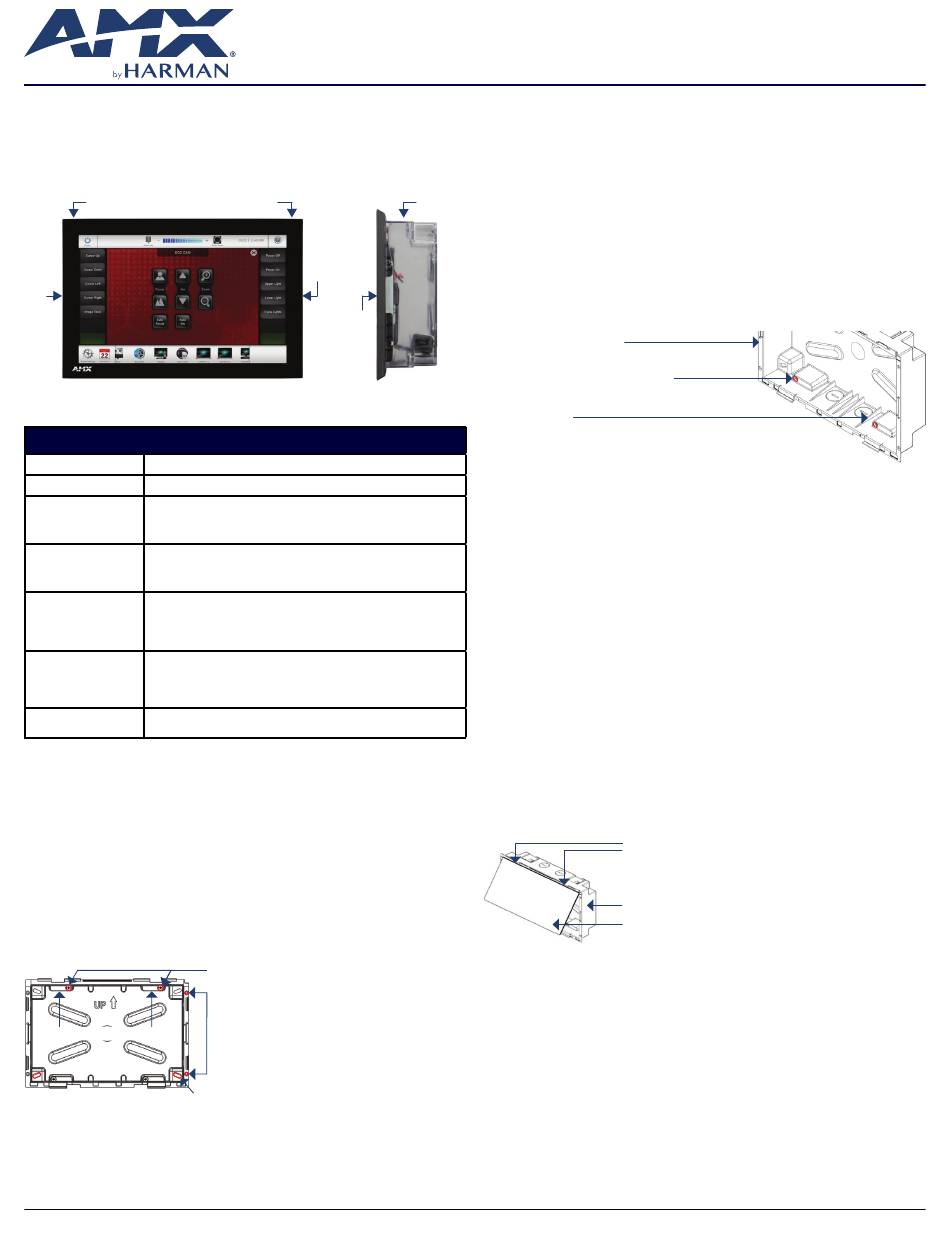

AMX MD-1002 Quick Start Manual

Overview

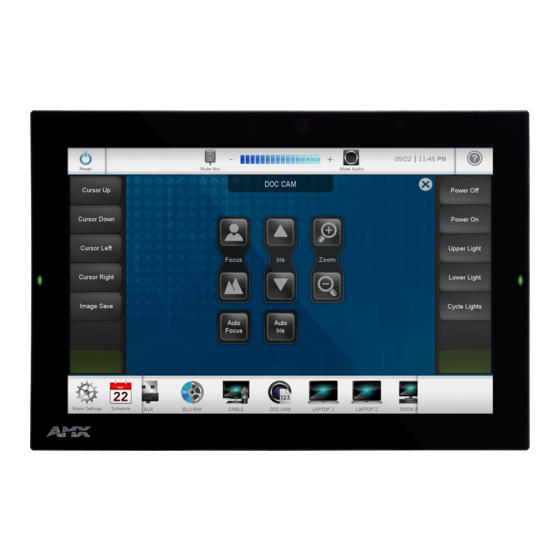

The MD-1002 (FG5969-49BL) 10" Modero G5 Wall Mount Touch Panel features
the G5 Graphics Engine, Quad Core Processor, and a capacitive multi-touch
display. This panel now supports two operational modes: as a customizable
Modero panel to be configured with RPM or TPDesign5/Netlinx Studio, or as
an Acendo Book scheduling panel which connects directly to popular room
scheduling software.
Sleep button Optional Microphone
Left
LED
FIG. 1
MD-1002

Product Specifications

MD-1002 SPECIFICATIONS
Dimensions (HWD) 6 13/16" x 10 1/16" x 2" (174mm x 255mm x 51mm)
Weight 1.95 lbs (.885 Kg), with Backbox / 1.5 lbs (.680 Kg), without Backbox
Power • Full-On: 12.95 W maximum
Consumption • Standby: 5.8 W
• Shutdown: 1 W
• Start-Up Inrush Current: Not applicable due to PoE standard
External Power Optimal performance requires use of one of the following AMX PoE power
Supply Required supplies (not included):
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-POE+, Gigabit PoE Ethernet Switch (FG2178-64)
Certifications • FCC Part 15 Class B
• AUS/NZ
• EN 55032:2012/AC:2013 Class B
• CISPR32:2015
• Brazil InMetro
Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)
• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation: On: 27.3 BTU/hr, Standby: 10.9 BTU/hr
Included • Installation Template, 10.1 (68-2265-03)
Accessories • Backbox, Wall Mount, 10.1" (60-2265-44)
MD-1002 Installation
The MD-1002 can be installed via several mounting options: Use the included
clear plastic Backbox to attach the panel to most standard wall materials. Other
optional AMX mounting solutions include the MSA-MMK2-10 Multi Mount Kit, the
MSA-AMK2-10 Any Mount Kit, CB-MXSA-10 Rough-In Box and the MSA-RMK-10
Rack Mount Kit. Refer to the Quick Start Guide included with each mounting kit
for instructions.
Power Over Ethernet
Power for the MD-1002 is supplied via Power Over Ethernet (PoE), utilizing an
AMXcertified PoE injector such as the PS-POE-AF-TC PoE Injector (FG423-83).
Connect the incoming Ethernet cable to the RJ-45 port on the MD-1002.
Plastic Backbox
The MD-1002 comes with a clear plastic Backbox. This Backbox can be used to
mount the touch panel into most standard wall materials. The Backbox can also
used to mount the panel into other mounting options.
Locking Tab (x4)
Mounting holes (x4) for installing the backbox into a Rough-In Box (screws not included)
FIG. 2
10" BACKBOX (FRONT VIEW)
STEP 1: Install the Plastic Backbox
Use the included Installation Template to determine the placement of the
Backbox in the mounting surface. The outside edges of the template are the
same dimensions as the touch panel, which allows you to troubleshoot possible
conflicts with wall edges, doors, and other potential obstacles.
Right
LED
Side
LED
(side view)
• IEC/EN-60950
• KN32 Class B
• CAN-ICES-3(B)/NMB-3(B)
• UL 60950-1
• RoHS/WEEE compliant
Locking Tab screw (x4)
Mounting holes (X4) for use with mounting screws
(not included)
Use these mounting holes to install the Backbox
into thin walls (less than 0.5" thick) or solid
surfaces
MD-1002
1. After ensuring proper placement, cut an opening in the mounting surface
for the Backbox, using the included Installation Template as a guide. Note:
Consider making the actual cutout opening slightly smaller than the provided
dimensions. This provides a margin of error if the opening needs to be
expanded. Too little wall material removed is always better than too much.
2. Thread the incoming cables (Ethernet and Micro-USB) from their terminal
locations through the surface opening, leaving enough slack in the wiring to
accommodate any re-positioning of the panel.
3. Remove the Backbox knockouts and thread incoming cables through the
Backbox
knockout holes.
4. Gently push the Backbox into the mounting surface.
• This Backbox uses four Locking Tabs to secure the Backbox to the wall.
For typical mounting surfaces, such as drywall, the locking tabs are the
primary method for securing the Backbox to the wall.
• To ensure a stable installation, the thickness of the wall material must be a
minimum of .50 inches (1.27cm) and a maximum of .875 inches (2.22cm).
The mounting surface should also be smooth and flat. For thin walls or
solid surfaces, use mounting screws (not included) - see FIG. 2.
5. Extend the Locking Tabs by tightening the Locking Tab screws until snug (FIG. 3):
10.1" Wall Mount Backbox
Locking Tab screw (x4) - tighten to
extend each of the four Locking Tabs
(max torque = 5 IN-LB)
Locking Tab (x4)
FIG. 3
10.1 BACKBOX - LOCKING TAB AND LOCKING TAB SCREW (X4)
CAUTION: The maximum recommended torque to screw in the locking
tabs on the plastic Backbox is 5 IN-LB [56 N-CM]. Excessive torque on the
tab screws can strip out the locking tabs or damage the Backbox.
• Extend the Locking Tabs only AFTER the Backbox is inserted into the wall.
• When installing the Backbox, make sure that it is positioned correctly.
• The Backbox is clear to allow visual confirmation that the tabs have been
extended and are gripping the wall, as well as in assisting with removal
if necessary.
STEP 2: Insert Connectors on the Touch Panel
1. Before installing the touch panel into the Backbox, connect the Ethernet
and USB cables to the rear of the panel.
2. Remove power at the terminal end before continuing with the installation.
Note: Do not disconnect the connectors from the touch panel. The panel
must be installed with the attached connectors before being inserted into
the mounting surface.
STEP 3: Secure the Touch Panel To the Backbox
The Backbox uses notches and tabs on the front edges (top and bottom) to
secure the panel into place. Follow the steps below to install the panel into the
Backbox, starting the upper edge of the touch panel:
UPPER TABS FIRST
1. Center the top edge of the touch panel against the upper outside edge of the
Backbox and latch the top of the panel onto the Backbox top-hooks (FIG. 4):
FIG. 4
ENGAGING THE TOP EDGE OF THE PANEL WITH THE TOP HOOKS ON THE BACKBOX
2. Gently press the top edge of the touch panel into place to engage the
panel's notches and the top-hooks on the Backbox.
LOWER TABS- Gently Press Into Place
1. Swing the bottom edge of the touch panel into position until it rests against
the lower outside edge of the Backbox.
Note: If a gap is observed between the panel and the Backbox, or binding is
felt while locking down the panel, stop and verify there are no cables in the
way. Do not force the panel into position, or the touch screen or the panel
electronics may be damaged.
2. Gently press the bottom edge of the panel gently but firmly and ONLY IN
THE PLACES INDICATED BELOW until the tabs click into place to secure the
panel (FIG. 5):
QUICK START GUIDE
10" Modero G5 Wall Mount Touch Panel
Use the top-hooks on the top edge of the Backbox to
latch the top of the touch panel into place
Plastic Backbox
MD-1002 Touch Panel
A V FOR AN IT WORLD
®
