Installation Manual
Introduction
• Read this manual before installation and connection.
Read the "Setting Manual" and "Operation Manual". The manuals can be downloaded from our
homepage at "https://www.aiphone.net/product/support/" free of charge. (The manuals will be
available from 9 November 2018 onwards.)
• After completing installation and connection, program the system according to the "Setting Manual".
The system cannot operate unless it is programmed.
• After performing installation, review with the customer how to operate system. Leave
documentation accompanying the Master Station with the customer.
Perform installation and connection only after gaining sufficient understanding of the
system and this manual.
The illustrations used in this manual may differ from the actual stations.
Example of System Configuration
IX-MV7-HB
IX-MV
PC (third party)
PoE switch
PoE switch
(third party)
(third party)
LAN
PoE switch
PoE switch
(third party)
(third party)
Network video
Network camera
recorder
(third party)
(third party)
IX-DA
IX-DVF
Status Indicator
Refer to "IX-MV7-* Operation Manual" for additional indicators not listed below.
Status (pattern)
Orange
Normal flashing
flashing
0.75 sec
0.75 sec
Rapid flashing
0.25 sec
0.25 sec
Long interval flashing
0.5 sec
4 sec
Long irregular flashing
1
0.25
0.25
0.25
0.25
sec
sec
sec
sec
sec
Short irregular flashing
1
0.25
0.25
0.25
sec
sec
sec
sec
Blue light

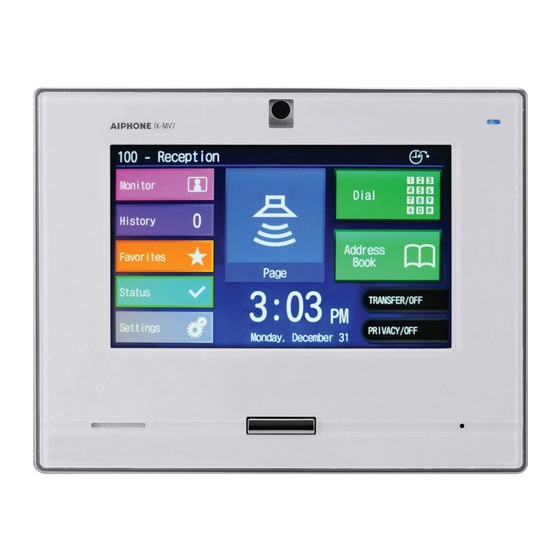

IX-MV7-HB, IX-MV7-HW, IX-MV7-B, IX-MV7-W
(Master Station)
Part Names and Accessories
IX-MV7-HW, IX-MV7-HB
Camera privacy cover lever (on top)
Front view
Camera
Handset
IX-MV7-W, IX-MV7-B
IX-RS-B
Front view
Camera
PoE switch
(third party)
PoE switch
PoE switch
(third party)
(third party)
Precautions
Warning
IX-SS-2G
IXW-MA
Do not disassemble or modify the
device.
May cause fire or electrical shock.
Do not, under any circumstances,
: Lit
: Off
open up the device.
Meaning
Voltage within some internal
Booting
components may cause electrical
shock.
Device error,
Startup error
Communication
Caution
failure, Line
supervision and
Do not install or connect the
device check error
device with the power on.
Firmware version
May cause electrical shock or
0.25
updating
sec
malfunction.
Initializing
Do not turn on power without first
checking to make sure the wiring
Standby (Depends
is correct and there are no
on setting)
improperly terminated wires.
May cause fire or electrical shock.
Install the device in a position
where it will not easily be brushed
against by somebody's shoulder,
etc.
Failure to do so could result in injury.
Side view
Status indicator
(Orange/Blue)
Reset button *
microSD
TM
card slot *
3.5 mm jack
Home button
Microphone
Speaker
Touchscreen LCD
* Accessible when terminal cover is
opened
Camera privacy cover lever (on top)
Side view
Status indicator
(Orange/Blue)
Reset button *
microSD
TM
card slot *
3.5 mm jack
Speaker
Home button
Microphone
* Accessible when terminal cover is
Touchscreen LCD
opened
Negligence could result in death or serious injury.
The device is not designed to
explosion-proof specifications.
Do not install or use in an oxygen
room or other such locations
filled with volatile gases.
May cause fire or explosion.
Negligence could result in injury to people or damage to
property.
Do not install the unit in location
subject to frequent vibration or
impact.
It may fall or tip over, resulting in
damage to the unit or personal
injury.
For testing and verification of
chime volume and call tone
volume, do not hold the handset
close to your ear.
May cause harm to the ear if a
sudden loud noise is emitted.
Do not put your ear close to the
speaker when using the device.
May cause harm to the ear if a
sudden loud noise is emitted.
Included accessories
Back view
Camera angle adjustment lever
MAC address
Installation Manual ×2
(English, Japanese)
LAN port
Desktop-stand fastening screw hole
Low-voltage connection terminal
Desktop stand ×1
Option connector terminal
(Shape depends on
presence of handset)
Back view
Camera angle adjustment lever
MAC address
Cable tie ×1
Wall-mounting
wood screws ×4
LAN port
Desktop-stand fastening screw hole
Low-voltage connection terminal
Option connector terminal
General Precautions
• If the device is installed in a dark place, but positioned in a direction where subjects will be back-lit by a
bright light, it may affect the clarity of the image shown on the liquid crystal display.
• Install low-voltage lines at least 30cm (11") away from high-voltage lines (AC100V, 200V), especially inverter
air conditioner wiring. Failure to do so may result in interference or malfunction.
• When installing or using the device, give consideration to the privacy rights of subjects, as it is the
responsibility of the system owner to post signs or warnings in accordance with local ordinances.
• Talk within 30cm (11") or less from the unit. If you stand too far away, it may be difficult for the other person
to hear the communication.
Notice
• The illustrations and images used in this manual may differ from the actual items.
• If the device is used in areas where there are business-use wireless devices such as a transceiver or mobile
phones, it may cause malfunction.
• If the device is installed close to a light dimmer, an inverter electrical appliance or the remote control unit of a
hot-water system or floor-heating system, it may create interference and cause a malfunction.
• If the device is installed in an area with an extremely strong electrical field, such as in the vicinity of a
broadcasting station, it may create interference and cause a malfunction.
Precautions for mounting
• In 50Hz regions, if a strong fluorescent light shines directly into the camera, it may cause the image to flicker.
Either shield the camera from the light or use an inverter fluorescent light.
• Installing the device in the following locations could cause malfunction:
- Locations exposed to direct sunlight
- Locations that get hot
Close to a heater, boiler, etc.
- Locations where there is risk of exposure to liquid, dust, oil, or chemicals
- Locations with high humidity
Bathroom, basement, greenhouse, etc.
- Locations with low temperature
Inside a cold storage warehouse, the front of a cooler, etc.
- Locations directly exposed to steam or oil smoke
Next to heating devices or a cooking space, etc.
- Sulphurous environments such as a hot spring area
- Locations close to the sea or directly exposed to sea breeze
• If existing wiring is used, the device may not operate properly. In that case, it will be necessary to replace the
wiring.
• Do not, under any circumstances, use an impact driver to fasten screws. Doing so may cause damage to the
device.
Issue Date: Oct. 2018 FK2461 B P1018 MQ 60409
Product
Notice
warranty
(IX Manuals and
(Japanese) ×1
Software) ×1
Mounting-bracket
Mounting
screws ×4
bracket ×1
(attached to the unit)
Desktop-stand
Desktop-stand
Option
screws ×4
fastening screw ×1
connector ×1
1
