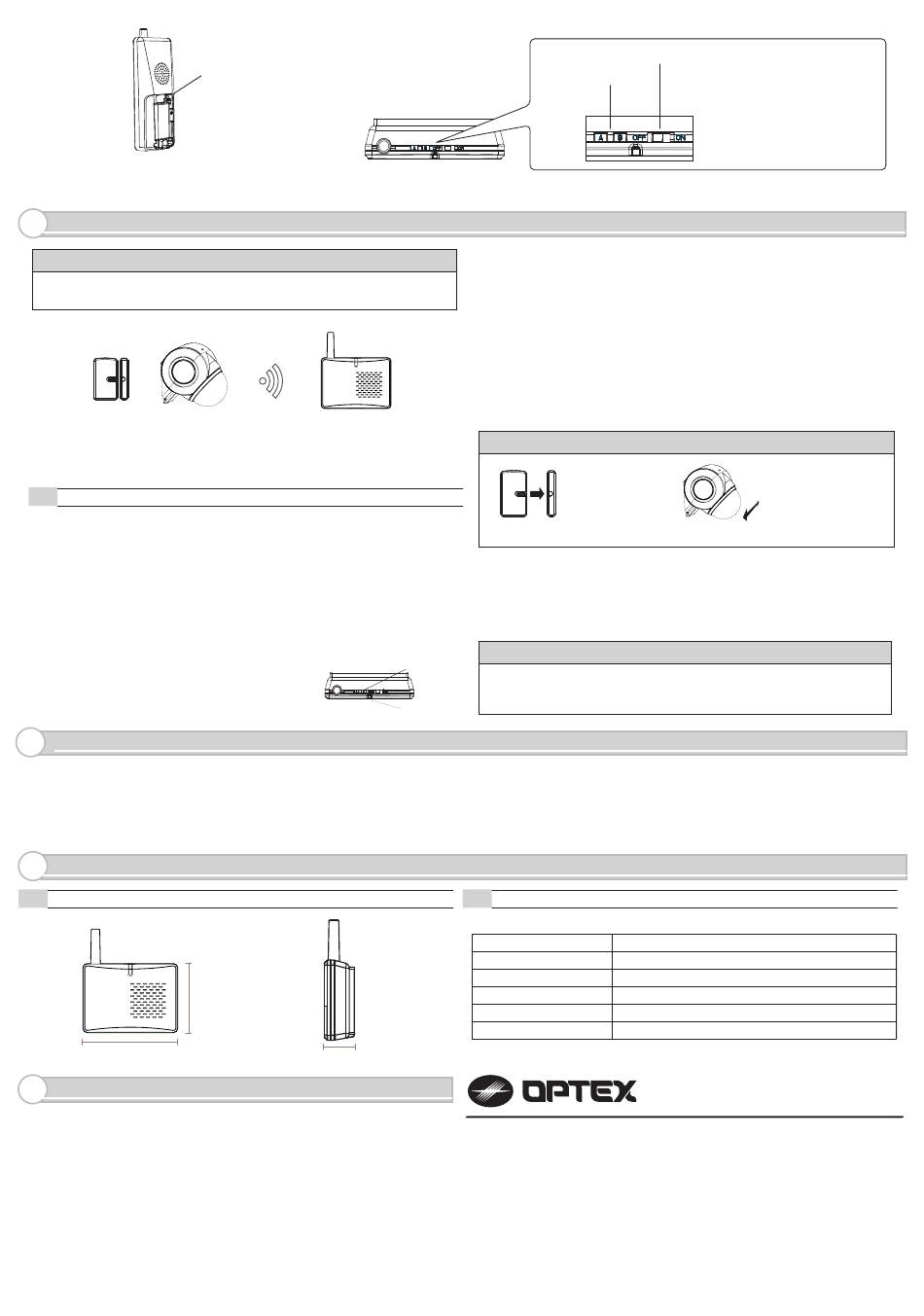

Optex IVP-GU iVISION+ Installation Instructions page 2

Unit (IVP-HU)
(4) Press IVP-DU push button once and hold paring button located at the bottom
of battery compartment until it makes a keeping sound.
7.
PAIRING WITH OPTEX WIRELESS2000 SYSTEM
NOTE: Please configure IVP-GU before pairng WIRELESS2000 device.
To connect iVISION+ system to OPTEX WIRELESS2000 devices (e.g. TC-10U)
HOME ID must be assigned to IVP-GU prior to pairing.
Gateway Chime Unit (IVP-GU) can be paired with OPTEX TC-10U & TD-20U devices.
TC-10U TD-20U
When paired with TC-10U or TD-20U, following features are available;
- If corresponding Door Camera Unit (IVP-DU) is connected to an external
power source, TC-10U or TD-20U can trigger an image capture from the IVP-DU.
- IVP-GU can act as an extra chime unit in WIRELESS2000 system.
7-1
Pairing TC-10U & TD-20U to Gateway Chime Unit
One IVP-GU can host 2 units of TC-10U or/and TD-20U, each into zone 1 and 2.
Both zone 1 and zone 2 will be associated to a Door Camera Unit (IVP-DU) which is
corresponding to the IVP-GU. In total, one iVISION+ system can host
4 WIRELESS2000 devices through 2 IVP-GUs.
(STEP 1) Clear/initialize IVP-GU for a new pairing of WIRELESS2000 devices
Enter into a pairing mode by holding down B button. LED starts blinking.
Select a zone by pressing B button. Hold down A button until two short beeps sound.
Repeat the same process for another zone if necessary. Exit the paring mode by
holding down B button or proceed to STEP3 if pairing immediately.
Zone 1, LED blinks slowly at 1 Hz (Green/Red)
Zone 2, LED blinks fast at 2 Hz (Green/Red)
8.
ADDITIONAL SETTING
To change a chime volume of IVP-GU
– Press button A to acknowledge current chime volume level. Press A button again to
change volume level to the next. The volume changes within 4 levels and the lowest
volume will follow the loudest. Leave the setting at the desirable volume level.
To completely turn off the chime, set Sound ON/OFF Switch to OFF.
9.
SPECIFICATION
9-1
Dimensions
110mm / 4.33"
10.
WARRANTY
1. This product is under a warranty for a normal usage for 18 months from the date
of manufacturing. The date of manufacturing can be identified from a LOT number
indicated on a label placed in a back of IVP-GU.
LOT: YYWWZ (e.g. LOT 1350Z)
YY indicates last two digits of the year manufactured (e.g. "13" = Year 2013)
WW indicates Xth week of the year manufactured
2. The warranty may not be applicable when any of following circumstances is found.
- Mechanical or electrical modification is made to the product and the good's
appearance indicates an alterations or a significant damage.
- The product is already been diagnosed by someone other than the manufacturer.
- Product malfunction is resulting from an improper usage, an accident,
natural disaster or any environmental event.
- Please call our technical assistance before arranging a return.
Pairing button
Top view
IVP-GU
Pairing button A & B
LED (RED/GREEN)
80mm / 3.15"
30.3mm / 1.2"
(e.g. "50" = 50th week)
Pairing button A & B
* HOME ID is an unique identification number for your iVISION+ system.
If a zone of IVP-GU already has an assigned WIRELESS2000 device, the zone will
not be overwritten and register another WIRELESS2000 device.
When pairing is denied, rapid beeps will sound.
(STEP 2) Prepare IVP-GU into a pairing mode
Enter into a pairing mode by holding down B button.
LED starts blinking. Select a zone by pressing B button.
The pairing mode continues for 30 seconds.
(STEP 3) Send pairing signal to IVP-GU
While the IVP-GU is in a pairing mode for a designated zone, trigger TC-10U or
TD-20U to send a radio signal. IVP-GU will register the signal with a chime.
Exit the pairing mode by holding down B button.
LED stops blinking when in a normal operation mode.
NOTE: How to trigger WIRELESS2000 devices
After inserting a
battery, remove
magnet part of
the device away
from the TC-10U.
TC-10U
(STEP 4) Confirm operation of WIRELESS2000 devices
Trigger the paired WIRELESS2000 device. IVP-GU will blink LED and ring a chime
(Sound ON/OFF Switch must be ON). IVP-HU will also respond by a chime sound
unless a volume on IVP-HU is set to null. IVP-HU will also capture an image from
a corresponding IVP-DU if the IVP-DU is connected to an external power source.
NOTE: Low battery notification of WIRELESS2000 devices
When any paired WIRELESS2000 has a low battery condition,
IVP-GU will make a short beep following a chime sound.
Low battery beep does not sound if the sound switch on IVP-GU is set to OFF.
SENSOR ALERT mode Enable/Disable setting
– By disabling SENSOR ALERT mode, iVISION+ system become ignorant of connected
WIRELESS2000 devices. This setting is changed by holding "Right Function Key" on
a Handheld Monitor Unit(IVP-HU). The LED on IVP-GU indicates the current setting.
When in RED, SENSOR ALERT is Enabled.
When in GREEN, SENSOR ALERT is Disabled
9-2
Specification Table
MODEL NAME: OPTEX iVISION+ (IVP-GU) Gateway Chime Unit
Operating Temperature 0 to 40 degC (32 to 104 degF)
Operating Humidity < 90% RH (no condensation)
Dust/Water Protection
N/A (Indoor Use Only)
Radiowave Frequency
2.4 GHz and 418MHz
Power AC/DC 10-24V 3W(max)
Relay Output 1C 50VAC/24VDC 1A max
OPTEX INC. (U.S.)
URL: http://www.optexamerica.com/
OPTEX DO BRASIL LTDA. (Brazil)
URL: http://www.optex.net/br/es/sec/
OPTEX (EUROPE) LTD. / EMEA HQ (U.K.)
URL: http://www.optexeurope.com/
Sound ON/OFF Switch
This switch is for turning
ON/OFF a speaker.
The Gateway Chime Unit operates regardless of
the switch setting while power is being supplied.
After inserting a
battery, wave your
hand across front
of the TD-20U
TD-20U
OPTEX CO., LTD. (JAPAN)
URL: http://www.optex.net/
