- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS INSTALLATION AND OPERATING INSTRUCTIONS Viron Connect Pool Viron Cartridge Filter and Spa Controller Bolero ND Cleaner INSTALLATION AND OPERATING INSTRUCTIONS Melbourne: 03 8796 8600 Gold Coast: 07 5552 2600 Perth: 08 9350 2600 Sydney: 02 9853 2100 Townsville: 07 4750 3100 sales@astralpool.com.au...
- Page 2 Inst 276 - Viron Connect Pool & Spa Controller V0610...
-
Page 3: Table Of Contents
Remote (second) touch pad console…………………………………………………………………………….. INSTALLATION & CONFIGURATION INSTRUCTIONS Heater/Pump Connection …………………………………………………………………………………………… 9 Chlorinator Connection ……………………………………………………………………………………………… 10 RolaChem Connection ……………………………………………………………………………………………… 11 Product Compatibility ……………………………………………………………………………………………… Valve Connection and Configuration ………………………………………………………………………………. 12 Warranty ………………………………………………………………………………………………………………. 13 Inst 276 - Viron Connect Pool & Spa Controller V0610... -
Page 4: Introduction

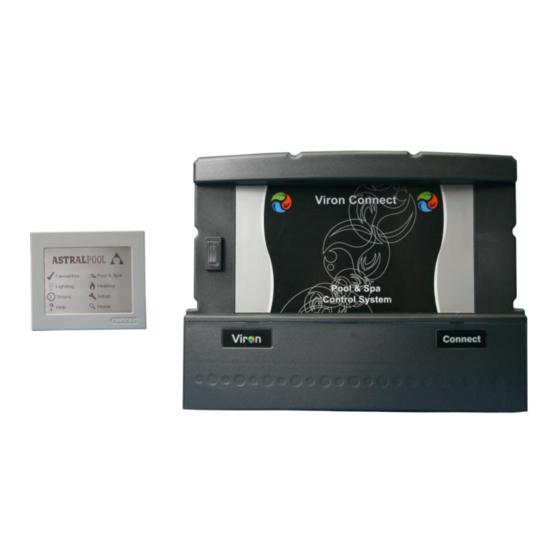

Congratulations! You have purchased a high quality Viron Connect Pool and Spa Equipment Centre. Please read the instructions carefully and your purchase will provide you with years of trouble free use. Viron Connect allows you to personalise your pool or spa operation and is designed for “ONE TOUCH FAVOURITE MODE” control. In other words, simply turn on the equipment you want to operate, set the pool temperature (if heater is installed) save to “FAVOURITES”, name your favourite (eg: Spa at Night, or “School Holidays”... -
Page 5: Operation
When the Viron Connect Pool & Spa Control system is first connected, the installation process must be completed. Important: The Viron Connect system allows you to name each channel. It is recommended you use the page at the rear of this manual to list what equipment is plugged into which outlet of the Power/Equipment or Connect 8 Expansion module located at the pool filtration plant. -
Page 6: Operation
(i.e. Filter Pump, Waterfall, Blower, etc) iii. If Filter Pump is assigned to this channel, you will be asked if you have a Viron 3 speed pump on the system. If YES is selected, you will then be prompted to select the default operating speed. -
Page 7: Setting Timer Periods
You can view the settings of any favourite program by selecting the VIEW CONFIGURATION icon. To activate a favourite setting, simply select the FAVOURITES icon from the main menu, they pick the favourite setting from the options given. Inst 276 - Viron Connect Pool & Spa Controller V0610... -
Page 8: Setting The Temperature
3 SPEED VIRON P300 (OPTIONAL - NOT INCLUDED) The Genus IV control system has the ability to control the speed of the Viron P300 3 speed high efficiency pump. The advantage of the Viron P 300 is its extremely low operating costs, reduced CO2 emissions and low operating noise. -
Page 9: Channel 1 Over Ride Switch
Speed to allow effective spa jet action. If you have a gas heater connected to the Viron Connect System, the Viron Pump will automatically switch to medium speed when the heater ignites. This ensures there is sufficient water flow to efficiently operate your gas heater. -
Page 10: Heater/Pump Connection
The FM Control handset is not water resistant. Therefore water must be avoided. CONTROL BOX INSTALLATION The Viron Connect Pool and Spa control has a Rating of IPX3 enabling it to be installed outdoors. Regulations require that the control is not allowed to be located within 3.5 metres of the pool water. -
Page 11: Chlorinator Connection
2. Cut the sense wire on Salt Chlorinator and crimp in blue wires from Salt Chlorinator Interface. Note: If Chlorinator output is disabled when in Pool mode, swap white and red leads inside Salt Chlorinator Interface. Inst 276 - Viron Connect Pool & Spa Controller V0610... -
Page 12: Rolachem Connection
Change setting to P/S Master Off If no heater is to be installed on the system (or a different model, manufacturers heater is to be used), the Viron Connect must be configured to operate in LOCAL mode. You must also purchase a Viron Connect Temp Sensor Pack. -
Page 13: Valve Connection And Configuration
Viron 3 Speed Pump Requirements The Viron Connect controller is capable of controlling all aspects of the Viron P300 pump. Pumps with manufacture dates after 1 March 2010 are compatible with the Viron Connect control system. To configure the P300 pump to operate on the control system, you must switch the controls to Fast Comms. This is done by;... -
Page 14: Warranty
For the 4 button (Plus4) remote, change jumper from slow comms (pins 4 & 5) to fast comms (pins 3 & 4) If you have any issues with the installation or set up of the Viron Connect control system, please contact your local Astral Pool sales and service office on the number below;... - Page 15 Spa RETURN SIDE Moving Cam this POOL adds some RETURN RETURN return water to Spa RETURN SUCTION SIDE POOL SUCTION SUCTION PUMP SUCTION SUCTION SIDE POOL SUCTION SUCTION PUMP SUCTION Inst 276 - Viron Connect Pool & Spa Controller V0610...
- Page 16 WARRANTY Your Viron Connect Pool and Spa Controller is covered by a limited 12 month warranty against defective parts and faulty workmanship (plus 30 days to allow for installation). To make a warranty claim you must return your Viron Connect Pool and Spa Controller to Astral Pool‟s factory freight prepaid and Astral Pool will repair or replace it (at its option) and return it to you.
- Page 17 Channel 1 _________________________________________________________________ Channel 2 _________________________________________________________________ Channel 3 _________________________________________________________________ Channel 4 _________________________________________________________________ Channel 5 _________________________________________________________________ Channel 6 _________________________________________________________________ Channel 7 _________________________________________________________________ Channel 8 _________________________________________________________________ Notes: _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ Inst 276 - Viron Connect Pool & Spa Controller V0610...
- Page 18 Inst 276 - Viron Connect Pool & Spa Controller V0610...
- Page 19 Inst 276 - Viron Connect Pool & Spa Controller V0610...
- Page 20 Ph: (07) 4750 3100 Fax: (03) 8796 8670 Fax: (02) 98532170 Fax: (07) 3308 5470 Fax: (08) 81527670 Fax: (08) 9350 2670 Fax: (07) 5552 2670 Fax: (07) 4750 3170 Inst 276 - Viron Connect Pool & Spa Controller V0610...
