INSTALLATION MANUAL
FOR YOUR SAFETY - This product must be installed in accordance with AS/NZ 3000 - 2018 and any other local
applicable regulations. Before installing this product, read and follow all warning notices and instructions that
accompany this product. Failure to follow warning notices and instructions may result in property damage,
personal injury, or death. Improper installation and/or operation will void the warranty.
Improper installation and/or operation can create unwanted electrical hazard which can cause serious injury,
property damage, or death.
halo
®
Bluetooth
WARNING
lite
4
TM
®

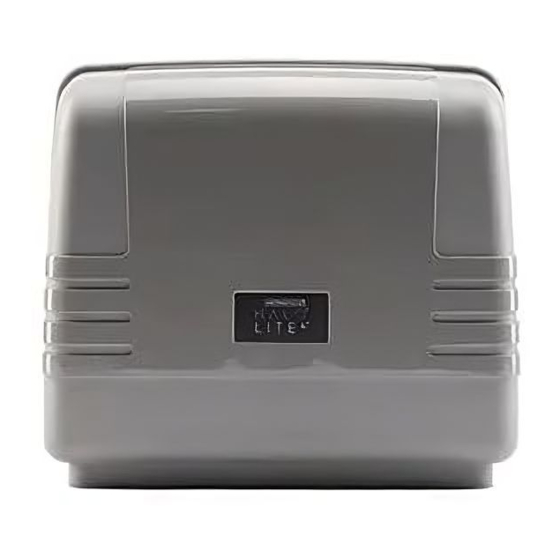

Light Controller
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Astralpool HALO LITE4
Summary of Contents for Astralpool HALO LITE4
- Page 1 INSTALLATION MANUAL halo lite ® Bluetooth ® Light Controller WARNING FOR YOUR SAFETY - This product must be installed in accordance with AS/NZ 3000 - 2018 and any other local applicable regulations. Before installing this product, read and follow all warning notices and instructions that accompany this product.
- Page 2 HALO LITE ® 4™ Installation Manual For full warranty terms and conditions and to register your warranty, visit www.astralpool.com.au/warranty and complete your details. Or scan the QR code to go directly to the registration page Record your equipment details here for quick reference: Model No.
-
Page 3: Table Of Contents
Connecting Multiple Halo Lite Controllers ..........11 Section 8. Remote Input .........11 Section 9. Using Halo Lite4 to Replace a “Connect Lite” ........11 Section 10. How to Un-pair a Halo Lite4 ....12 Section 11. Regular Maintenance ......12 Section 12. Troubleshooting ........13... -
Page 4: Important Safety Instructions
HALO LITE ® 4™ Installation Manual Section 1. Important Safety Instructions READ AND FOLLOW ALL INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: WARNING Halo Lite power supply has an IP23 rating, meaning it is suitable for installation outdoors. For safe operation the power supply must be installed in the correct orientation, with the cables leaving from the bottom of the device. -
Page 5: System Overview
HALO ® LITE 4™ Installation Manual Section 2. System Overview Identify a suitable installation location. NOTE: The distance between the controller and Halo Lite Kit Contents the app should be less than 15 meters for a reliable Bluetooth® connection. The Halo Lite controller allows you to control your pool lights via the Halo Lite app. -
Page 6: Controlling Lights Via A Mobile App
HALO ® LITE 4™ installation manual Section 4. Controlling Lights via a Mobile App If your Halo Lite is paired to a Halo Chlorinator, then mobile control of the lights must be done through the Halo Chlor app. (See the Halo Chlorinator Instructions for information on the Halo Chlor app.) If your Halo Lite isn’t paired to a Halo Chlorinator,... -
Page 7: Configuration And Setup
HALO ® LITE 4™ Installation Manual 11. Tap “Pool” to connect to the Halo Lite controller Tap “Date and Time” to use date and time settings and operate your lights from within the app. from your phone (preferred) or set the current date and time manually. -
Page 8: Controlling Lights From The App
HALO ® LITE 4™ installation manual Controlling Lights from the App If multi colour lights are installed, colours may also be changed from this screen. To control lights after pairing and setup: Tap “TIMERS” at the bottom of the screen to set Tap the name of the lights from the front screen up to two different light timers. -
Page 9: Connection To Viron Connect (Connect 10)
Press “Add/Remove” in the “Equipment Confi guration” area on the install page (lower left corner). Figure 5. Connecting Multiple Halo Lite4 controllers Section 6. Connection to AstralPool® Chlorinators Connection to a Halo Chlor Chlorinator A total of two (2) Halo Lite connectors can be connected wirelessly to a Halo Chlorinator. -
Page 10: Connect To Viron Or Eq Chlorinators
HALO ® LITE 4™ installation manual Connect to Viron or eQ Chlorinators The list of “Connected Devices” shows devices that can be connected to the Halo Chlorinator. These are If SLX / FLX or Spa Electric lights are being used, Halo shown with the “+”... -
Page 11: Connecting Multiple Halo Lite 4 Controllers
Halo Lite controllers and pair the app to input will change the state of the controller from auto the Halo Lite4 that you want to control and then turn mode to manual mode. the other Halo Lite controllers back on. -
Page 12: Section 10. How To Un-Pair A Halo Lite4
LITE ® 4™ Installation Manual Section 10. How to Un-pair a Halo Lite4 If a Halo Lite is connected via RJ12 cables to a Viron Connect or Viron/EQ Chlorinator, the unit will stay in this mode and the Halo Lite app can't be used. -
Page 13: Section 12. Troubleshooting
HALO ® LITE 4™ Installation Manual Section 12. Troubleshooting PROBLEM SOLUTION Colour button is missing from the • Refer to the “Configuration and Setup” section. home screen • Ensure Support Multi Colour is enabled. Lights don’t change to correct colour •... - Page 14 Fluidra Group Australia Pty Ltd 219 Woodpark Road Smithfield NSW 2164, Australia 1 300 186 875 www.astralpool.com.au ©2021 Fluidra S.A. All rights reserved. This document is subject to change without notice. H0741100_REVB...
