Summary of Contents for Cadel CARINA 9,5 kW

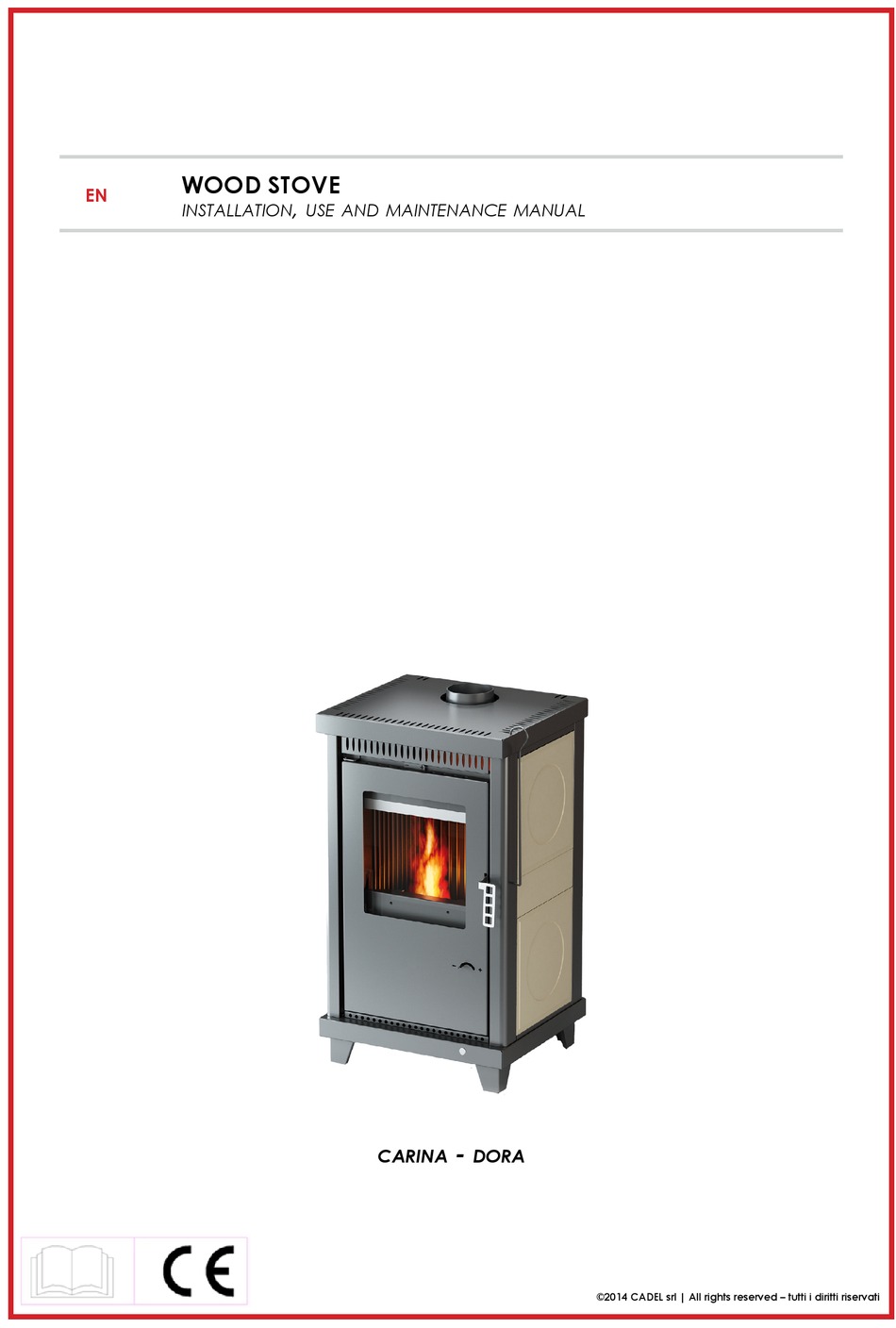

- Page 1 WOOD STOVE installation use and maintenance manual carina dora ©2014 CADEL srl | All rights reserved – tutti i diritti riservati...
-
Page 2: Table Of Contents
Summary 12.8 FAN REPLACEMENT .........19 12.9 GASKET REPLACEMENT ......19 MANUAL SIMBOLOGY ........3 12.10 GLASS CLEANING ........19 DEAR CUSTOMER ..........3 12.11 HEART BREAK .........19 CAUTIONS ............3 13 IN CASE OF ANOMALY ........20 WARRANTY CONDITIONS ........4 13.1 PROBLEM SOLVING ........20 SPARE PARTS .............5 14 TECHNICAL DATAS ........21 WARNINGS FOR THE CORRECT DISPOSAL OF 14.1 WIRING SCHEME ........21... -
Page 3: Manual Simbology
MANUAL SIMBOLOGY • The icons with the stylized figures indicates whom the subject dealt in the paragraph is addressed to (between the User and/or the Authorized Technician and/or the Specialized Stove-repairer). • WARNING symbols indicates an important note. USER AUTHORISED TECHNICIAN (ONLY to interpret or the Stove-manufacturer or the Authorized Technician of Technical Assistance Service approved by the Stove- manufacturer) -
Page 4: Warranty Conditions
WARRANTY CONDITIONS The company guarantees the product, with the exception of elements subject to normal wear listed below, for a period of 2 (two) years from the date of purchase attested by: • a document to serve as proof of purchase (invoice and/or receipt) that shows the name of the vendor and the date on which the purchase was made;... -
Page 5: Spare Parts
SPARE PARTS For each repair or adjustment which should be necessary, please contact the dealer where you purchased your stove or your nearest Technical Assistance Service, specifying: • Appliance model • Serial number • Type of problem Use only original spare parts which you can find at our Technical Assistance Services. WARNINGS FOR THE CORRECT DISPOSAL OF THE PRODUCT The owner is the sole party responsible for demolishing and disposing of the product. -
Page 6: Chimney Flue
CHIMNEY FLUE INTRODUCTION This chapter about the Chimney Flue has been drawn up in cooperation with Assocosma (www.assocosma.org) and is based on European Standards (EN 15287 - EN 13384 - EN 1856 - EN 1443 - UNI 10683:2012). It provides instructions for a good and correct execution of the chimney flue but it does not absolutely replace the current standards which the qualified manufacturer/installer should comply with. -
Page 7: Height-Depression
the adjacent room and it must be provided with a solid and condensation collection chamber under the entrance, accessible through the sealed metal gate. • The inner section of the chimney flue can be round (the best one) or square and the jointed sides must have a minimum radius of 20 mm. -
Page 8: Chimney Components
obstacles laying nearby (see TECHNICAL FEATURES page 6). CHIMNEY COMPONENTS Fig. 4 - Chimney components LEGEND Fig. 5 page 8 Chimney pot Fume outlet Chimney flue Termal insulation External wall Chimney union Fume pipe Heat generator Inspection door Damper CARINA - DORA... -
Page 9: External Air Inlet
EXTERNAL AIR INLET Fig. 5 - Direct air inflow Fig. 6 - Indirect air inflow LEGEND Fig. 6 page 9-Fig. 7 page 9 Room to ventilate Adjacent room External air inlet Cleft under the door • The room must be endowed with an external air recycling for a good climate in your ambient. •... -
Page 10: Examples Of Correct Installation
plug which enables an easy periodic cleaning of the pipes. • Please assure you that after the cleaning the inspection plugs are sealed with its efficient gasket. • It is forbidden to connect more appliances to the same fume conduit. •... - Page 11 Fig. 8 - Example 2 LEGEND Fig. 9 page 11 Insulating material Inspection plug Chimney inspection entrance Minimum safety distance = 0,5 mt Inclination ≥ 3° Level section ≤ 1 mt Damper • Old chimney flue with an inserted pipe of minimum Ø150 mm and with an external door which enables the chimney cleaning.
-
Page 12: Fuel
• External chimney flue entirely made up of insulated stainless steel pipes, i.e. with double wall of minimum Ø150 mm: all must be firmly attached to the wall. For chimney against wind effects please (see Fig. 4 page 7). • Ducting system through T-unions which enables an easy cleaning without disassembling the pipes. We recommend to check with your chimney flue manufacturer the safety distances which must be respected and the type of insulating material. -
Page 13: Installation
• Here following some information about the quality of different type of woods: TYPE OF WOOD QUALITY % PERFORMANCE Excellent Hornbeam Excellent Very good Maple Very good Birch Good Good Beech Good Willow Sufficient Spruce Sufficient Red deal Fair Larch Fair Lime Worst... -
Page 14: Overall Dimensions
10.2 OVERALL DIMENSIONS Fig. 11 - Overall dimensions LEGEND Fig. 12 page 14 52 cm 92,5 cm 45,8 cm 14 cm 26 cm Exhaust fumes d.12 cm CARINA - DORA... -
Page 15: General Installation
10.3 GENERAL INSTALLATION Fig. 12 - General installation LEGEND Fig. 13 page 15 Stove Minimum lateral distance = 300 mm Minimum rear distance = 300 mm Minimum front distance = 1000 mm • Please check that the floor has an adequate load capacity. If the existing one does not satisfy this requirement, appropriate measure should be provided (for example a plate for distributing the load). -
Page 16: Use
• Please further assure you that your network is endowed with an efficient earth connection: if it does not exist or if it is not efficient, please endow you with one in compliance with the law. • Do not use extension cables. •... -
Page 17: Ventilation
Do not open and close the fire door violently: the glass can brake! Open the fire door with naked flames can be dangerous for user and/or home. During operation some external parts can reach high temperatures. During refilling fases use proper protection gloves given as equipment. -
Page 18: Burning Pot And Ash Tray Cleaning
• Fume outlet pipes (fume conduit + chimney flue + chimney pot) must always be cleaned, scrubbed and checked by an authorized technician in compliance with local regulations, with the instructions of the manufacturer and those of your insurance company. •... -
Page 19: Cleaning Of Painted Metal Panels
12.6 CLEANING OF PAINTED METAL PANELS To clean painted metal panels use a soft cloth. Do not use degreasant agents like alcool, diluents, acetone, gasoline because these could irremediably damage the varnish. 12.7 CLEANING OF CERAMIC PANELS Some stove models has an external lining made up of ceramic. These pieces are handmade therefore they could inevitably present crazings, seedinesses, shadings. -
Page 20: In Case Of Anomaly
IN CASE OF ANOMALY 13.1 PROBLEM SOLVING In case of doubts regarding the use of the stove, please contact ALWAYS the Authorized Technician on order to avoi irreparable damages! PROBLEM CAUSE SOLUTION INTERVENTION Use small and well dried wood logs during ignition, before Too large wood bigger wood logs. -
Page 21: Technical Datas
PROBLEM CAUSE SOLUTION INTERVENTION Open the registers completely. (If the problem persists, Lack of chimney contact and expert stove repairer who will check the draught chimney flue efficiency). Too humid wood Use well seasoned wood The glass blackens excessively Too slow Open air registers in order to increase the fire and fume combustion output temperature. -
Page 22: Features
14.2 FEATURES DESCRIPTION CARINA 9,5 kW DORA 9,5 kW WIDTH 52 cm 52 cm DEPTH 45,8 cm 46 cm HEIGHT 92,5 cm 92,5 cm WEIGHT 81,8 - 87 kg 81,8 - 87 kg NOMINAL THERMIC POWER (Max) 9,5 kW 9,5 kW... - Page 23 NOTE...
- Page 24 · · pelletkachels houtkachels houtkeukens · thermokachel open haard pellets CADEL srl FREEPOINT by Cadel Via Foresto Sud, 7 31025 Santa Lucia di Piave (TV) - ITALY tel. +39.0438.738669 fax +39.0438.73343 www.cadelsrl.com Partner of: Rev.02 - 2013...
