Jandy
®
FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and
qualified in pool equipment by the jurisdiction in which the product will be installed where such state
or local requirements exist. The maintainer must be a professional with sufficient experience in pool
equipment installation and maintenance so that all of the instructions in this manual can be followed
exactly. Before installing this product, read and follow all warning notices and instructions that accompany
this product. Failure to follow warning notices and instructions may result in property damage, personal
injury, or death. Improper installation and/or operation will void the warranty.
Improper installation and/or operation can create unwanted electrical hazard which can
cause serious injury, property damage, or death.
ATTENTION INSTALLER - This manual contains important information about the
installation, operation and safe use of this product. This information should be given to
the owner/operator of this equipment.

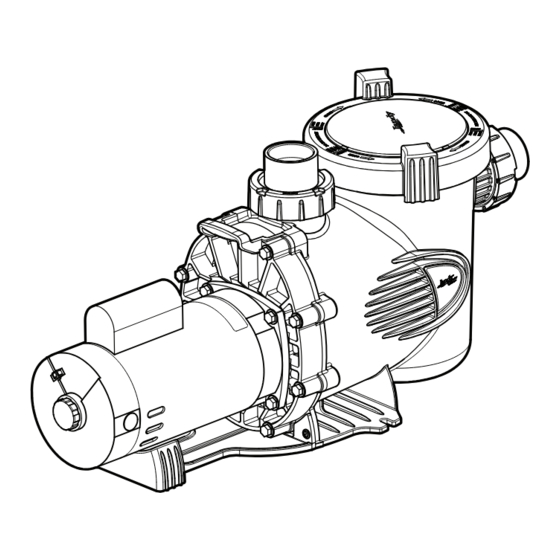

Pro Series Stealth
Models SHPF and SHPM
WARNING
INSTALLATION AND
OPERATION MANUAL
Pumps
™
ENGLISH
Advertisement
Table of Contents
Related Manuals for Jandy Stealth SHPM
Summary of Contents for Jandy Stealth SHPM
- Page 1 INSTALLATION AND OPERATION MANUAL ENGLISH Jandy Pro Series Stealth Pumps ® ™ Models SHPF and SHPM WARNING FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exist.
-
Page 2: Table Of Contents
Page 2 ENGLISH Jandy Pro Series Stealth Pumps Operation Manual ® ™ Table of Contents Section 5. Service and Maintenance ....12 Section 1. IMPORTANT SAFETY INSTRUCTIONS ......3 Routine Maintenance ........12 Winterizing the Pump ........13 Safety Instructions ..........3 Pool Pump Suction Entrapment Prevention Section 6. -
Page 3: Section 1. Important Safety
To reduce the risk of property damage or injury, do not attempt to change the backwash (multiport, slide, or full flow) valve position with the pump running. WARNING Jandy Pro Series pumps are powered by a high voltage electric motor and must be installed by a licensed or certified electrician or a qualified swimming pool service technician. WARNING RISK OF ELECTRIC SHOCK, FIRE, PERSONAL INJURY, OR DEATH. - Page 4 Page 4 ENGLISH Jandy Pro Series Stealth Pumps Operation Manual ® ™ WARNING To minimize the risk of severe injury or death the filter and/or pump should not be subjected to the piping system pressurization test. Local codes may require the pool piping system to be subjected to a pressure test. These requirements are gen- erally not intended to apply to the pool equipment such as filters or pumps. Zodiac pool equipment is pressure tested at the factory. ® However, if the WARNING cannot be followed and pressure testing of the piping system must include the filter and/or pump, BE SURE TO COMPLY WITH THE FOLLOWING SAFETY INSTRUCTIONS: • Check all clamps, bolts, lids, lock rings and system accessories to ensure they are properly installed and secured before testing.
-
Page 5: Pool Pump Suction Entrapment Prevention Guidelines
Page 5 Jandy Pro Series Stealth Pumps Operation Manual ENGLISH ® ™ Pool Pump Suction Entrapment Prevention Guidelines CAUTION The 3-phase SHPF series pumps utilize non-thermally protected motor assemblies. NRTL Listed Motor Controller with internal motor running overload protection or external motor running overload are required during the final installation of the pump assembly. Overloads shall be set at a maximum of 125% of the full-load current rating of the pump motor assembly. -
Page 6: Section 2. General Description
Inspect the contents of the carton and verify Description that all the parts are included. See Section 7.1, Jandy Pro Series SHP Pumps are designed to meet the Replacement Parts List. needs of today’s more hydraulically demanding pool 3.1.2 Pump Location equipment. - Page 7 Page 7 Jandy Pro Series Stealth Pumps Operation Manual ENGLISH ® ™ AQUAPURE MANUAL BY-PASS DETAIL MANUAL BY-PASS IS USED WHEN FILTRATION RATE EXCEEDS 125 GPM Figure 2. Typical Piping Installation NOTE Better self-priming will be achieved if the pump is...
-
Page 8: Electrical Installation
If this happens, the pump will experienced. develop an air pocket (cavitation) that will make noise and the pump life will be shortened. Always use properly sized valves. Jandy Pro Series Diverter Valves and Ball Valves typically 3.1.3.3 Installation Recommendations have the best flow capabilities. - Page 9 Page 9 Jandy Pro Series Stealth Pumps Operation Manual ENGLISH ® ™ pool, spa or hot tub structure and to all electrical WARNING components and equipment associated with the pool/spa water circulation system. The pump must be permanently connected to a The bonding must be accomplished by using a dedicated electrical circuit. No other equipment,...
-
Page 10: Pressure Testing
Exploded View of Pump resulting in severe personal injury or death. WARNING Lid with Locking Ring Due to the potential risk of fire, electric shock, or injuries to persons, Jandy Pro Series Pumps must be installed in accordance with the National Electri- cal Code (NEC ), in the USA, or the Canadian ® ® Electrical Code (CEC ) in Canada. All applicable... - Page 11 Page 11 Jandy Pro Series Stealth Pumps Operation Manual ENGLISH ® ™ Make sure all necessary isolation valves are 3.3.1.3 Conduct Pressure Test closed to prevent pool water from reaching the pump. WARNING Following the markings on the locking ring,...
-
Page 12: Section 4. Operation
Page 12 ENGLISH Jandy Pro Series Stealth Pumps Operation Manual ® ™ Section 4. Operation Section 5. Service and Maintenance Start-up Routine Maintenance CAUTION Inspect the pump basket for debris by looking through Never run the pump without water. Running the the clear pump lid. -
Page 13: Winterizing The Pump
Page 13 Jandy Pro Series Stealth Pumps Operation Manual ENGLISH ® ™ Winterizing the Pump CAUTION The pump must be protected when freezing temperatures are expected. Allowing the pump to freeze will cause severe damage and void the war- ranty. -
Page 14: Section 6. Troubleshooting
Page 14 ENGLISH Jandy Pro Series Stealth Pumps Operation Manual ® ™ Section 6. Troubleshooting Zodiac Pool Systems LLC strongly recommends that you call a qualified service technician to perform any repairs on the filter/pump system. To locate an independent service company, check your local yellow pages or visit www. -
Page 15: Section 7. Product Specifications And Technical Data
Page 15 Jandy Pro Series Stealth Pumps Operation Manual ENGLISH ® ™ Symptom Possible Problem/Solution There is no debris blocking The pump impeller and diffuser are showing signs of normal wear. Have a qualified the impeller and the pressure service technician check the impeller and diffuser and replace as necessary. is still low. -
Page 16: Exploded View
Page 16 ENGLISH Jandy Pro Series Stealth Pumps Operation Manual ® ™ Key No. Description Model No. (HP) Order Part No. Impeller Replacement Kit, SHPM 0.75 R0807204 Impeller Replacement Kit, SHPM R0807203 Impeller Replacement Kit, SHPM R0807202 Impeller Replacement Kit, SHPM 2.0, 2.0-2 R0807201 Impeller Replacement Kit, SHPM 2.5, 2.5-2 R0807200 Screw w/O-ring, Self-sealing R0445302-06 Diffuser w/O-ring &... -
Page 17: Shpf And Shpm Pump Curves
Jandy Pro Series Stealth Pumps Operation Manual ENGLISH ® ™ SHPF and SHPM Pump Curves Jandy Stealth Series High Head Pumps Full-Rated (SHPF) and Max-Rated (SHPM) SHPF 5.0 SHPF 3.0/ SHPF 3.0-3PH SHPF 2.0/ SHPM 2.5 SHPF .50/ Low Speed SHPM .75... - Page 18 Page 18 ENGLISH Jandy Pro Series Stealth Pumps Operation Manual ® ™ 7.4.2 SHPM Pump Specifications Model No. Voltage Amps Pipe Size Carton Weight Overall Length 'A' SHPM .75 208-230/115 4.4-4.5/8.8 2-2½" 30 lbs. " SHPM 1.0 208-230/115 6.0-5.6/11.2 2-2½"...
- Page 19 Page 19 Jandy Pro Series Stealth Pumps Operation Manual ENGLISH ® ™ NOTES...
- Page 20 Certified to NSF/ANSI Standard 50 CONFORMS TO UL STD 1081 CERTIFIED TO CSA STD C22.2 NO 108 Zodiac Pool Systems LLC. 2620 Commerce Way, Vista, CA 92081 1.800.822.7933 | www.ZodiacPoolSystems.com ©2017 Zodiac Pool Systems LLC. ZODIAC ® is a registered trademark of Zodiac International, S.A.S.U., used under license.
