Installation and Operating Data
Installation and
Operation Manual

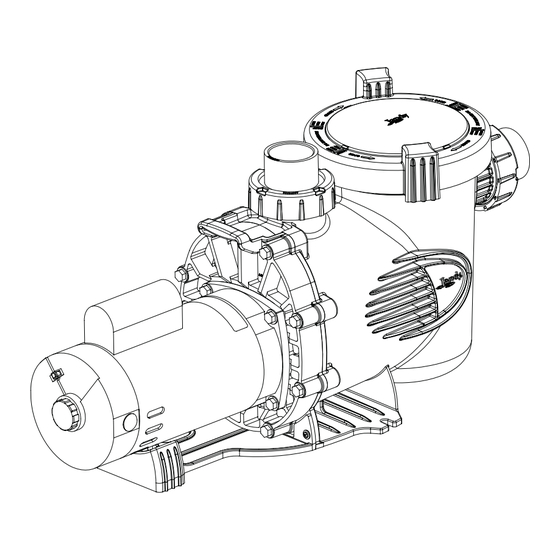

Stealth Series
Pumps
Models SHPF and SHPM
FOR YOUR SAFETY: This product must be in stalled and serviced by a professional service
technician, qualified in pool/spa installation. The procedures in this manual must be followed
exactly. Improper in stal la tion and/or op er a tion can create dangerous electrical hazards which
can cause high voltages to run through the electrical system, possibly causing death, serious
injury or property damage. Improper in stal la tion and/or op er a tion will void the warranty.
WARNING
ATTENTION INSTALLER: This manual contains important information about
the in stal la tion, operation and safe use of this product. This information
should be given to the owner/operator of this equipment.
Advertisement
Table of Contents
Related Manuals for Jandy SHPF
Summary of Contents for Jandy SHPF
- Page 1 Installation and Operating Data Installation and Operation Manual Stealth Series Pumps Models SHPF and SHPM WARNING FOR YOUR SAFETY: This product must be in stalled and serviced by a professional service technician, qualified in pool/spa installation. The procedures in this manual must be followed exactly.
-
Page 3: Table Of Contents
Page 3 Table of Contents Section 5. Service and Maintenance ....Section 1. Important Safety Instructions ... Routine Maintenance ...... Safety Instructions ......Winterizing the Pump ..... Pool Pump Suction Entrapment Prevention Guidelines ..... Section 6. Troubleshooting and Repair ..... Section 2. -
Page 4: Section 1. Important Safety Instructions
Page 4 Important Safety Instructions Section 1. READ AND FOLLOW ALL INSTRUCTIONS Safety Instructions All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: WARNING RISK OF SUCTION ENTRAPMENT HAZARD, WHICH, IF NOT AVOIDED CAN RESULT IN SERIOUS... - Page 5 Page 5 WARNING To minimize risk of severe injury or death the filter and/or pump should not be subjected to the piping system pressurization test. Local codes may require the pool piping system to be subjected to a pressure test. These requirements are generally not intended to apply to the pool equipment such as filters or pumps.
-
Page 6: Pool Pump Suction Entrapment Prevention Guidelines
Page 6 Pool Pump Suction Entrapment Prevention Guidelines WARNING SUCTION HAZARD. Can cause serious injury or death. Do not use this pump for wading; shallow pools or spas containing bottom drains, unless pump is connected to at least two functioning suction outlets. WARNING Pump suction is hazardous and can trap and drown or disembowel bathers. - Page 7 Page 7 At Least 3 Feet Listed/certified to Listed/certified to ANSI/ASME A112.19.8 ANSI/ASME A112.19.8 Anti-entrapment Anti-entrapment Cover/Grate or Suction Cover/Grate or Suction Fitting, screw-fastened Fitting, screw-fastened No valves between to Main Drain Sump to Main Drain Sump Tee and Main Drains Suction Outlet Suction Outlet (Main Drain)
-
Page 8: Section 2. General Description
Page 8 Section 2. General Description 3.1.2 Pump Location It is recommended to install the pump within one (1) foot above the water level. The pump should Introduction not be elevated more than a few feet above This manual contains information for the proper the water level of the pool. -
Page 9: Pipe Sizing
Page 9 3.1.3 Pipe Sizing simplifies installation, service, and eliminates the possibility of leaks at threaded adapters. NOTE All HP ratings given in this section apply to Full- rated pumps. For help with max-rated pumps, The Stealth Pump must be connected to at least contact Jandy Customer service. -
Page 10: Electrical Installation
Page 10 Electrical Installation WARNING Ensure that the control switch or time clock is 3.2.1 Voltage Checks installed in an accessible location so that in the The correct voltage, as specified on the pump data event of an equipment failure or a loose plumbing plate, is necessary for proper performance and long fitting the equipment can be turned off. -
Page 11: Pressure Testing
Page 11 Pressure Testing Release all pressure from the system and open the filter pressure release valve. WARNING If the pump is located below the water level of When pressure testing a system with water, air is often the pool, opening the filter pressure release valve trapped in the system during the filling process. -
Page 12: Section 5. Service And Maintenance
Page 12 Section 5. Service and Maintenance Turn on the power to the pump. Once all the air has been evacuated from the filter, close the pressure release valve. Routine Maintenance The pump will collect any large debris present in Winterizing the Pump the water at the pump basket. -
Page 13: Section 6. Troubleshooting And Repair
Page 13 Section 6. Troubleshooting and Repair ® Jandy strongly recommends that you call a qualified service technician to perform any repairs on the filter/ pump system. To locate a qualified technician, check your local yellow pages or visit www.jandy.com and click on "Product Support."... -
Page 14: Service Technician Maintenance
Page 14 Service Technician Maintenance 6.2.2 Impeller Removal WARNING WARNING This pump must be serviced by a professional While servicing the pump, switch off the circuit service technician, qualified in pool/spa breakers at the power source. Severe personal installation. The following procedures must be injury or death may occur if the pump starts while followed exactly. -
Page 15: Impeller Replacement
Page 15 Backplate Diffuser O-Ring Diffuser Screws with Washers (2) Self Sealing Left Dif fus er Handed Screw Motor Backplate O-ring Screws with Diffuser Washers (2) Impeller Mechanical Seal Motor Backplate Dif fus er O-ring Figure 6. Diffuser and Impeller Exploded View Figure 3. -
Page 16: Mechanical Seal Replacement
Page 16 Replace the motor shaft cover by inserting the NOTE Prior to replacing the lid, check for debris around the lid o-ring seat, as this will cause air leaks into cover tabs into the slots and rotating the cover the system. -
Page 17: Motor Replacement
Page 17 Press the new carbon face seal half on the Backplate impeller sleeve using a twisting motion. It is very Bolts and important to grasp the lower portion (opposite Washers (4) the carbon face) when installing the seal or damage to the spring will result. -
Page 18: Section 7. Product Specifi Cations And Technical Data
Page 18 Section 7. Product Specifications and Technical Data Replacement Parts List ® To order or purchase parts for Jandy pumps, contact your nearest Jandy ® dealer. If they cannot supply you with what you need, contact ® Jandy customer service at 707.776.8200 or send an e-mail message to info@jandy.com. -
Page 19: Exploded View
Page 19 Part No. Description Size (HP) Qty. R0446101 Tail Piece (2" by 2½") .75-2.5 Coupling Nut O-ring R0446102 Tail Piece (2½" by 3") Coupling Nut O-ring R0446200 O-ring, Lid R0446300 O-ring, Backplate R0446400 O-ring, Tail Piece R0446500 Diffuser/Impeller Hardware Screw w/O-ring, Self-sealing, Impeller Mounting Screw, Diffuser Mounting Washer, Diffuser Mounting... -
Page 20: Shpf And Shpm Pump Curves
Page 20 SHPF and SHPM Pump Curves ® Jandy Stealth Series High Head Pumps Feet of Full Rated (SHPF) and Max-Rated (SHPM) P S I Head 120.0 100.0 80.0 3 HP SHPF 60.0 2 HP SHPF/ 2.5 SHPM 40.0 2.5 HP SHPM/ 1.5 HP SHPF/ 0.75 HP SHPF/ LOW SPEED... -
Page 21: Physical And Operational Specifi Cations
Page 21 Physical and Operational Specifications 7.4.1 SHPF Pump Specifications Model No. Voltage Amps Pipe Size Carton Weight Overall Length 'A' SHPF.75 208-230/115 6.0-5.6/11.2 2-2½" 43 lbs. " SHPF1.0 208-230/115 7.8-7.4/14.8 2-2½" 45 lbs. 32¼" SHPF1.5 208-230 9.6-8.8 2-2½" 50 lbs. "... -
Page 22: Replacement Motor Guide
Page 22 Replacement Motor Guide SHP Replacement Motor Guide A.O Smith / A.O Smith/ Pump Model Pump Model Century Century SHPF .75 B661 SHPF 1.0 B841 SHPM 1.0 B863SE SHPF 1.5 B842 SHPM 1.5 B864SE SHPF 2.0 B843 SHPM 2.0 B865SE SHPF 3.0 B844... - Page 23 Page 23 NOTES...
-
Page 24: Limited Warranty
LIMITED WARRANTY ® Thank you for purchasing Jandy pool and spa products. Jandy Pool Products, Inc. warrants all parts to be free from manufacturing defects in materials and workmanship for a period of one year from the date of retail purchase, with the following exceptions: ®...
