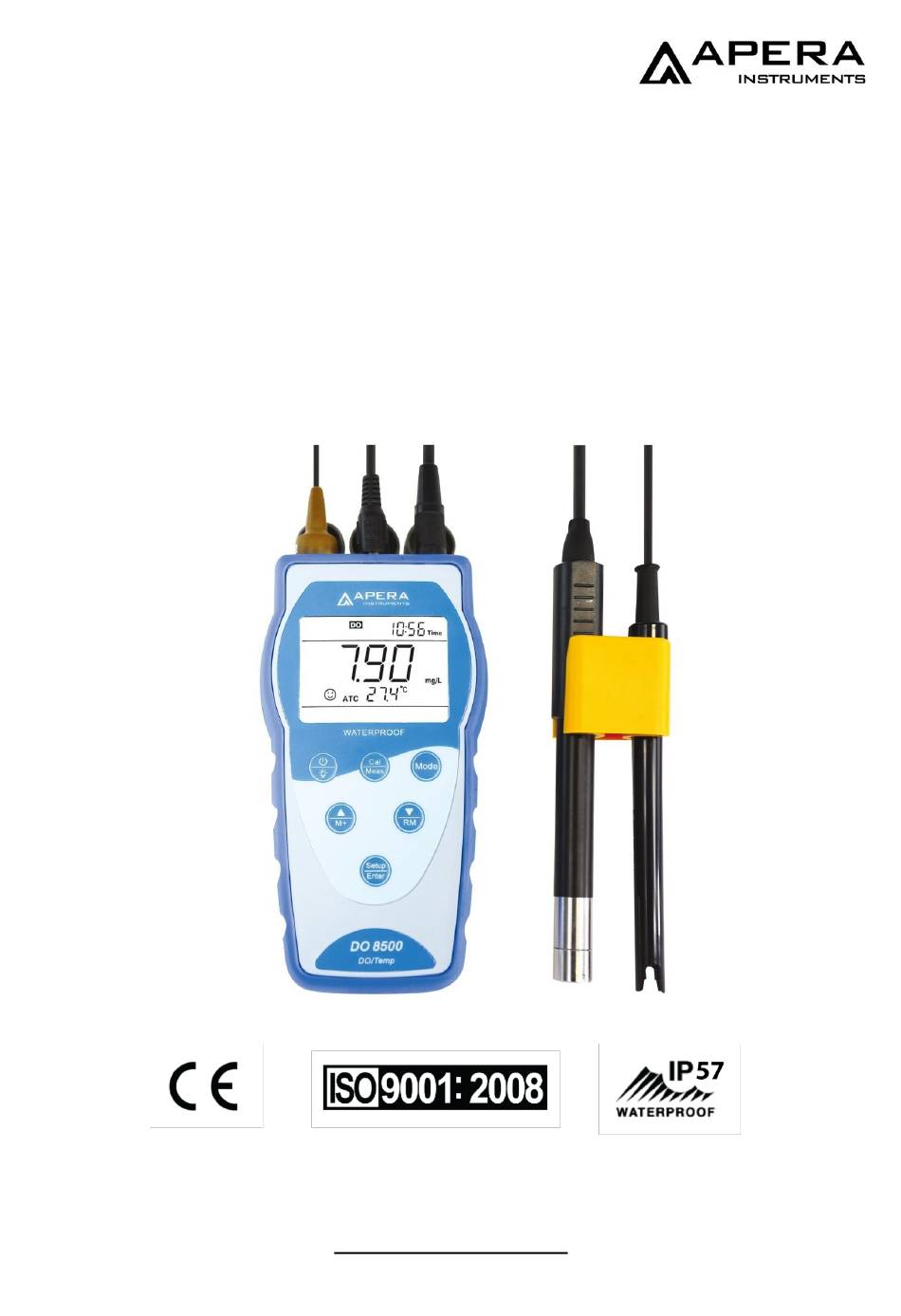

- Page 1 DO8500 Portable Optical Dissolved Oxygen Meter Instruction Manual APERA INSTRUMENTS, LLC www.aperainst.com - 1 -...
-
Page 2: Table Of Contents
Table of Contents 1. Overview -------------------------------------------------------------------------------------------------- 2. Technical Specifications ------------------------------------------------------------------------------- 3. Instructions ----------------------------------------------------------------------------------------------- 3.1 LCD Screen ----------------------------------------------------------------------------------------- 3.2 Key Operation -------------------------------------------------------------------------------------- 3.3 Batteries --------------------------------------------------------------------------------------------- 3.4 Instrument Socket --------------------------------------------------------------------------------- 3.5 Display Mode ---------------------------------------------------------------------------------------- 3.6 Data Storage.recall and clear--------------------------------------------------------------------- 3.7 Backlighting ------------------------------------------------------------------------------------------ 3.8 Automatic Power-Off ------------------------------------------------------------------------------ 4. -
Page 3: Overview
1 Over view Thank you for purchasing Sanxin DO8500 Portable Optical Dissolved Oxygen Meter. The DO8500 measures dissolved oxygen in water using luminescence technology through an optical sensor and displays data using advanced intelligent instrument. Compared to conventional electrochemical dissolved oxygen meter, the DO8500 is more accurate and stable, easier to use and most cost-effective portable optical dissolved oxygen meter. -
Page 4: Technical Specifications
2 Tec hnica l Spe c ifica tions Dynamic Range (0-20.00) mg/L (ppm), (0-200.0)% Resolution 0.01/0.1mg/L (ppm), 0.1/1% ±2% reading or ±0.2 mg/L, whichever is greater Accuracy ±2% reading or ±2% saturation, whichever is greater Dissolved Oxygen ≤30 s (25℃ , 90% response) Response Time Calibration Points Saturation Point &... -
Page 5: Instructions
3 Instructions 3.1 LCD Screen Fig.-1 Serial number of storage and ① ⑨ Measurement mode icon prompts of special display mode M+ — Measurement to be stored icon ② ⑩ Reading/Measured Value RM — Reading to be recalled icon Temperature value and ③... -
Page 6: Key Operation
3.2 Key Operation Fig.-2 Short press: key press time < 2 s; Long press: key press time> 2 s. Power on: Press to turn on. Shutdown: long press 2 seconds off. First time use: see parameter setting P4.7 & P4.8 to set correct date and time (as Clause 8.3) Special notes: Before get readings or do other operations, wait about 30 seconds after meter powered on. -
Page 7: Batteries
3.3 Batteries The instrument uses three AA batteries, please use the LR6-type alkaline batteries to ensure battery quality. Battery life > 200 hours (no backlight). When the display shows symbol as shown in Figure-3, replace the battery. 3.4 Instrument Socket Fig.-3 The instrument socket protected by grey rubber sealing cap, as shown in Figure-4. -
Page 8: Backlighting
3.6 Data storage.recall and clear. 3.6.1 Manual storage When the measurement is stable, press key, the meter will store measureent value, M+ icon and storage serial number will be displayed on right botton of LCD sreen, as shown in Figure-9, first group of data was stored.If connect salinity probe, press key, M+ icon and storage serial number will be displays for 2 seconds, then salinity... -
Page 9: Optical Dissolved Oxygen Probe
4 Optica l D iss olve d Ox yge n Probe 4.1 Probe Structure The instruments DO803 optical dissolved oxygen probe has a cable length of 3m and a built-in temperature sensor for automatic temperature compensation. The electrode structure is as shown in Figure.-12 Fig.-12 1. -
Page 10: Sensor Cap
4.3 Sensor Cap (A) The sensor cap is an important part of the optical DO probe. The surface coating of the cap cannot be scratched or mechanically worn. Otherwise, the life of the sensor cap will be reduced or the probe will be damaged. Please pay special attention to it when using the probe. -
Page 11: Air Pressure Compensation
5.4 Air Pressure Compensation The instrument has automatic air pressure compensation function. The instrument has been performed the air pressure calibration before it leaves the factory. So generally users do not have to calibrate the air pressure. If necessary, calibrate it according to standard value measured by aneroid barometer. -
Page 12: Calibration
(B) Since salinity calibration is done by factory before delivery, so it is not necessary to perform salinity calibration during initial use. Only make salinity calibration when replace with a new electrode, or when the electrode is unused for long time. (C) For auto salinity compensation, should connect salinity probe, As shown in figure-14, user can fit DO probe and salinity probe together into the clip to measure simultaneously. -
Page 13: Special Notes For Calibration
6.3 Special Notes for Calibration (A) Please note that the closer the temperature of the sample solution to the calibration solution, the more accurate readings.So, it is recommended that the oxygen saturation calibration to be performed according to section 6.1 before use every day. (B) Drying of the surface coating of the sensor cap can adversely affect the stability of the measurement. -
Page 14: Parameter Settings
8 Para me ter Settings 8.1 Press the key in the measurement mode to enter the parameter setting mode P3.0, key to switch the menu P3.0 →P4.0; In P3.0 mode, press press the to enter P3.1, press to switch submenu P3.1→P3.6; In P4.0 mode, press to enter P4.1,press to switch submenu P4.1→P4.8. - Page 15 8.2 DO Parameter setting (press to switch) P3.1—Dissolved Oxygen Unit (mg/L—ppm) 1. In P3.0 mode, press the key to enter P3.1 mode. 2. Press the key, mg / L flashes, press the key to select mg/L → ppm, press to confirm. 3.
- Page 16 8.3 Basic Parameter setting (press to switch) P4.1—Adjust timing storage time 1. In P4.0 mode, Press key to enter P4.1 mode. 2. Press key,”00” flashes, Press key to adjust minute (0~59);Press key,”0” flashes,Press to adjust hour (0~99), Press key to confirm; 3.
-
Page 17: Usb Communication
P4.6—Auto Power Off (On—Off) 1. Press key, On flashes， Press key to select On→Off， press key to confirm. On—turn on auto power off function Off—turn off auto power off function. 2. Press key to enter P4.7 mode, or press key to return to measurement mode. - Page 18 activated. Refresh — press this key to reset COM port to COM1 SyncTime — press this key to set time of meter same with computer. Download — press this key to download the data from the meter to the computer, Clear —...
-
Page 19: Complete Kit
10 Comple te K it 10.1 What’s in the box Content Quantity DO8500 Portable Optical Dissolved Oxygen Meter DO803 Optical Dissolved Oxygen Probe Probe Calibration/storge Sleeve Conductivity Electrode 2301-3M PC-Link Communication Software disk USB Communication Cable... -
Page 20: Warranty
11 Warra nty 11.1 The warranty period of the DO8500 instrument (only the instrument) is 3 years from the date of purchase. That of DO803 optical DO probe (excluding sensor cap) is 2 years from the date of purchase. That of DO8032 sensor cap is 1 year from the date of purchase. If the above products or parts within the warranty period is not functional due to raw material defects or poor manufacturing, they are free for repair or replace. -
Page 21: Trouble Shooting
12 Trouble Shooting Error Solutions 1. The battery is not installed correctly. Check the polarity. The instrument does 2. Battery low voltage, replace the battery. not turn on 3. Instrument freezes. Unplug the battery and then install. 1. Check calibration procedure: correct atmospheric pressure, salinity input and temperature. -
Page 22: Appendix A: Oxygen Solubility Table (760Mm Hg)
Appendix A: Oxygen Solubility Table (760mm Hg) Chlority: 0 5.0 ppt 10.0 ppt 15.0 ppt 20.0 ppt 25.0 ppt Temp °C Salinity: 0 9.0 ppt 18.1 ppt 27.1 ppt 36.1 ppt 45.2 ppt 14.62 13.73 12.89 12.10 11.36 10.66 14.22 13.36 12.55 11.78... -
Page 23: Appendix B: Do% Calibration Values
Appendix B: DO % Calibration Values Cal. Cal. Pressure Pressure value value D.O. % in Hg mmHg mbar D.O. % in Hg mmHg mbar 101% 30.22 767.6 102.34 1023.38 25.73 653.6 87.14 871.40 100% 29.92 760.0 101.33 1013.25 25.43 646.0 86.13 861.26 29.62... - Page 24 APERA INSTRUMENTS, LLC Address: 6656 Busch Blvd, Columbus Ohio 43229 Tel: 1-614-285-3080 Email: info@aperainst.com Website: www.aperainst.com - 24 -...
