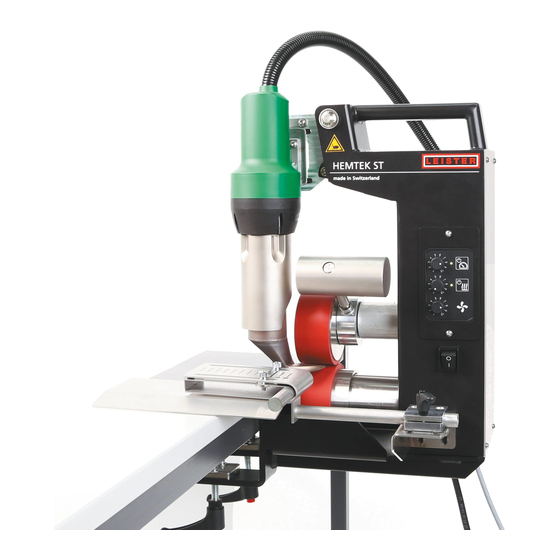

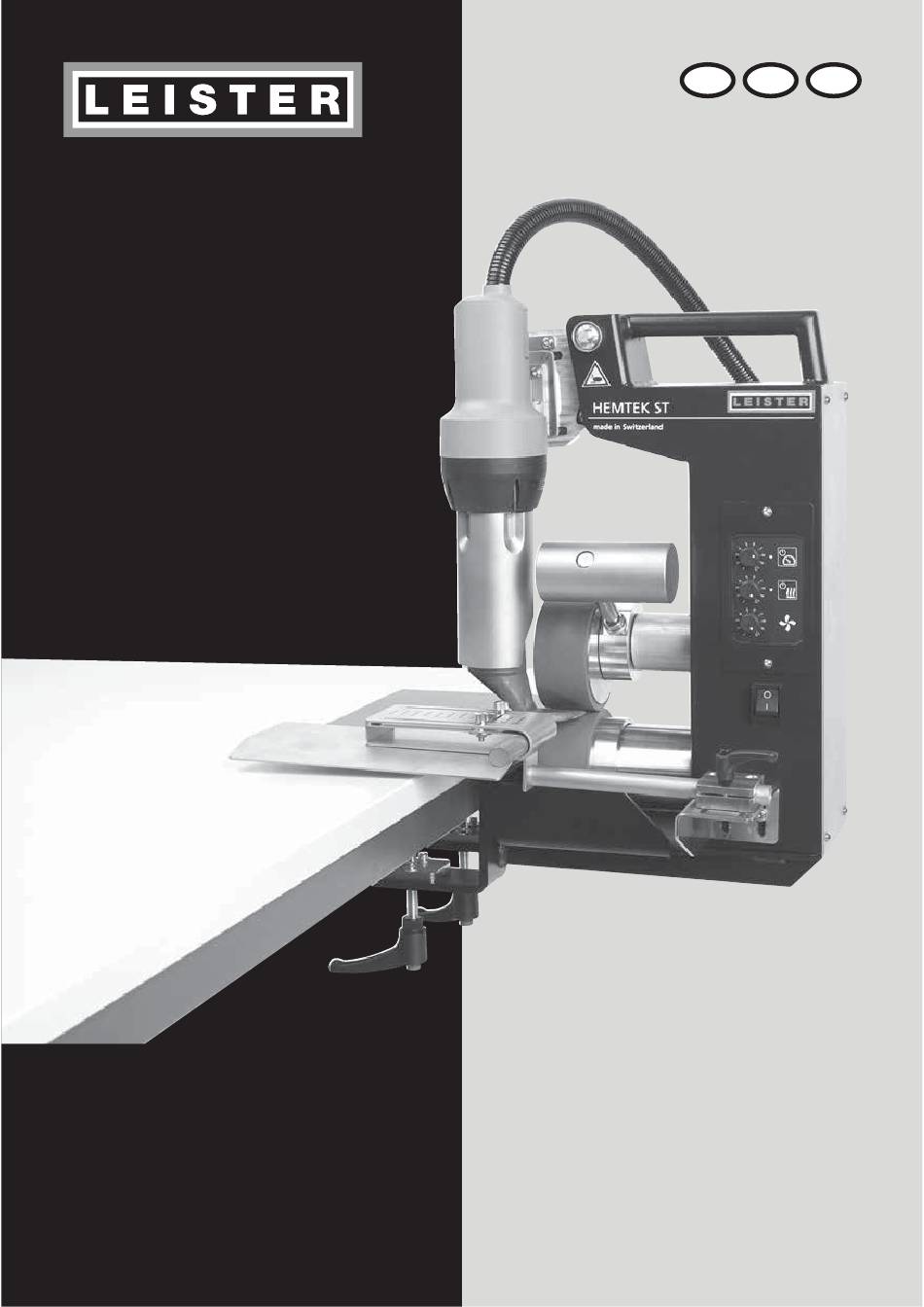

  • Page 1 ® HEMTEK HEMTEK K-ST Leister Technologies AG Galileo-Strasse 10 CH-6056 Kaegiswil/Switzerland Tel. +41 41 662 74 74 +41 41 662 74 16 www.leister.com sales@leister.com...
  • Page 2: Table Of Contents

    6.7 Switching off the device / Maintenance .....................28 7. Quick Reference Guide HEMTEK ST / K-ST .....................29 8. Warning messages (HEMTEK ST / K-ST) ....................29 9. FAQs, causes and measures (HEMTEK ST / K-ST) ..................30 10. Accessories ............................30 11. Service and Repair ..........................30 12.
  • Page 3: Important Safety Instructions

    Operating instructions (translation of operating instructions) We congratulate you on your purchase of a HEMTEK ST / K-ST! You have chosen a first-class hot air welder. It was developed and produced in accordance with the very latest state of technology in the plastics-processing industry.
  • Page 4: Intended Use

    1.1 Intended Use The HEMTEK ST / K-ST is designed for professional indoor utilization for welding tarpaulins. Use only original Leister spare parts and accessories because otherwise no warranty or guarantee claims can be asserted. HEMTEK ST welding processes and material types: •...
  • Page 5: Your Hemtek St / K-St

    The model and serial number are indicated on your device's type plate (8). Enter this information into your operating instructions and always reference this information when addressing inquiries to our representatives or authorized Leister Service points. Model:................................Serial no.: .................................
  • Page 6: Overview Of Device Parts

    4.3 Overview of device parts HEMTEK ST 1. Hot-air blowers 13. Silicone plugs (remove for piping welding) 2. Carrying handle 14. Hem, open hem and piping guide 3. Electric lifting cylinder 15. Drive wheel 4. Fixing unit hot-air blowers 16. Pressure wheel 5.
  • Page 7 HEMTEK K-ST 1. Hot-air blowers 13. Drive wheel 2. Carrying handle 14. Pressure wheel 3. Electric lifting cylinder 15. Adjustable weight 4. Fixing unit hot-air blowers 16. Flap-piping nozzle 5. Clamping lever for table fastening feet 17. Speed potentiometer 6. Table fastening 18.
  • Page 8: Settings On The Hemtek St / K-St

    • Position HEMTEK ST / K-ST on table fas- tening. Make sure that the machine is mounted parallelly to table fastening. • Tighten the HEMTEK ST / K-ST using the 4 socket head bolts • Check correct seating and stability of the...
  • Page 9: Adjusting The Guide

    (Set to 40 mm in diagram) • Engraving on pipe is from left to right for the basic setting 40, 30, 20 mm nozzle (only completely welded hem). 5.3 Insulation silicone plugs (only HEMTEK ST) Piping guide tube is only used for welding piping.
  • Page 10: Adjusting The Contact Pressure Weight

    Do not touch heating element tube and nozzle when they are hot. The device should always first be allowed to cool down! The following is the basic setting of the welding nozzles of your HEMTEK ST A 26 mm Distance to drive axis...
  • Page 11 Dimension (A) Set (1 × socket head screw) and slide at the same time with the linear drive. Dimension (B) Set (4 × hexagon nut) Dimension (C) Set (4 × socket head screws) 4 x combination Torx screws Parallel drive wheel on nozzle shoe 2 x socket head screws + 4 x hexagon nut (of dimension B) horizontal...
  • Page 12: Commissioning Your Hemtek St / K-St

    6. Commissioning your HEMTEK ST / K-ST 6.1 Work environment and safety The hot air welder should be used only in well-ventilated indoor areas. Never use the hot air welder in explosive or readily inflammable surroundings and maintain sufficient distance from combustible materials or explosive gases at all times.
  • Page 13: Starting The Device

    6.4 Starting the device Risk of burning! Do not touch heating element, nozzle and components in the immediate vicinity of the nozzle when hot. The device should always first be allowed to cool down. Do not point the hot air flow at people or animals! •...
  • Page 14: Quick Reference Guide Hemtek St / K-St

    7. Quick Reference Guide HEMTEK ST / K-ST Risk of clamping injuries! A danger of clamping injuries exists with the tilting mechanism when the hot-air blowers swivel in and out. Risk of entanglement! During operation there is a risk of entanglement on the drive roller.
  • Page 15: Faqs, Causes And Measures (Hemtek St / K-St)

    (see chapter 5.1 Setting and assembling table fastening) • Guiding the material well by hand. 10. Accessories Use only original Leister spare parts and accessories because otherwise no warranty or guarantee claims can be asserted. You can find more information at www.leister.com.
  • Page 16: Declaration Of Conformity

    14. Declaration of Conformity Leister Technologies AG, Galileo-Strasse 10, CH-6056 Kägiswil, Switzerland confirms that in the model made available for purchase, this product fulfills the requirements of the following EU directives. Guidelines: 2006/42, 2014/30, 2014/35, 2011/65 Harmonized standards: EN 12100, EN 55014-1, EN 55014-2, EN 61000-6-2, EN 61000-3-2,...
