4. Connection

The device uses a standard enclosure allowing DIN EN60715 TH35 rail mounting. Its plastic
meets standard PC UL 94 V0.
Modbus RTU
EIA485
Modbus RTU
EIA232
Ensure proper space for all connectors when mounted.
The items supplied by Intesis Software for this integration are:
 IntesisBox Modbus Server – Modbus RTU hardware
 Console cable. Standard DB9F-DB9M cable 1.8 meter long.
 Installation sheet, containing a link to the LinkBoxMB software and this manual.
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
Power
See Note 1
Ethernet
RJ45
- +
Ethernet
CMN 24Vac
Modbus TCP
9 - 30Vdc
Max.125 mA
24Vac
IntesisBox
Max.127mA
50-60Hz
www.intesis.com
Modbus RTU
EIA485
EIA232
- +

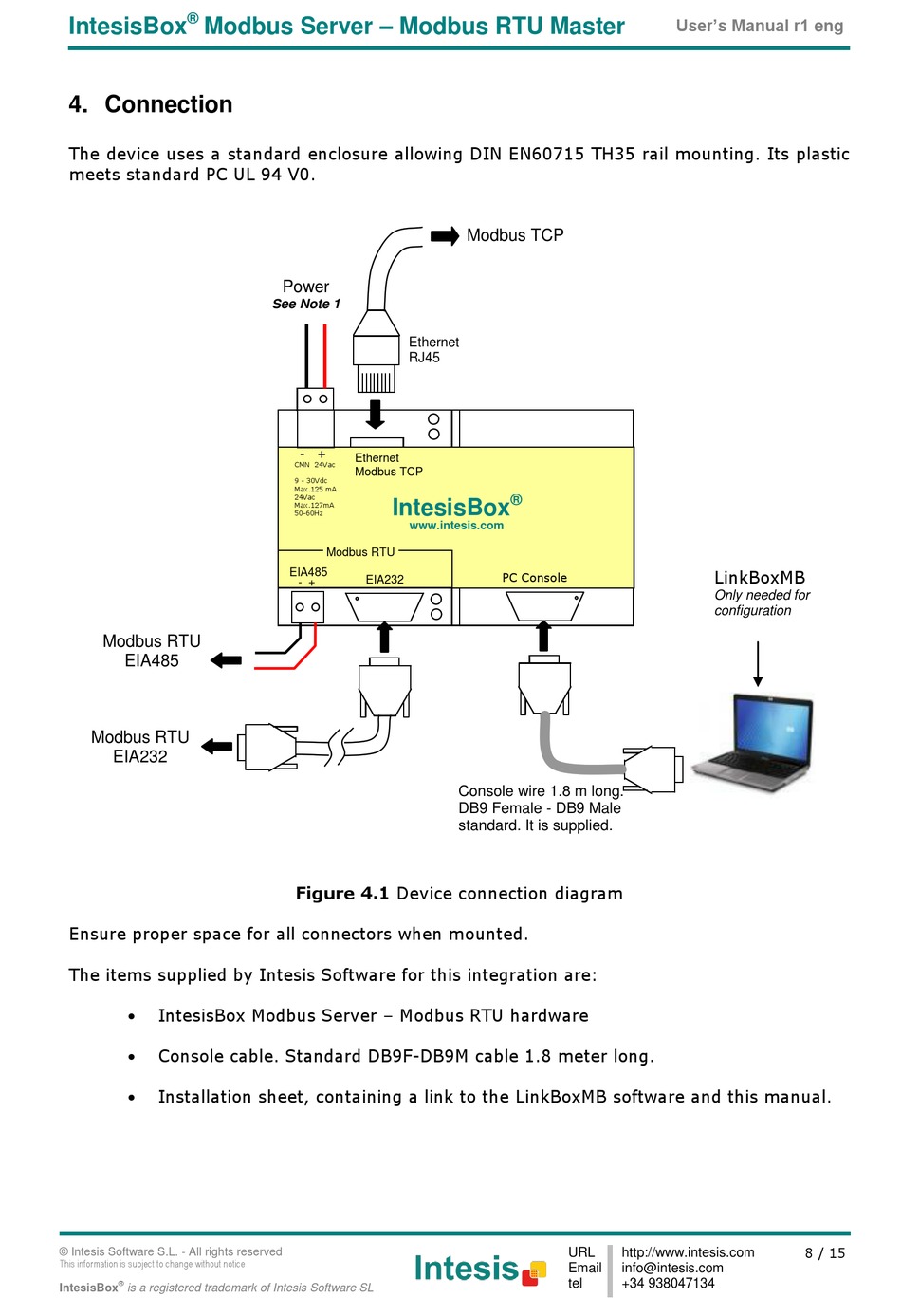

Figure 4.1 Device connection diagram
Modbus TCP
®
PC Console
Console wire 1.8 m long.
DB9 Female - DB9 Male
standard. It is supplied.
URL http://www.intesis.com
Email info@intesis.com
tel +34 938047134
User's Manual r1 eng
LinkBoxMB
Only needed for
configuration
