Ets Parameters - IntesisBox HA-AC-KNX-16 User Manual

®
IntesisBox KNX - Haier A.C. (VRF line)

4 ETS Parameters

When imported to the ETS software for the first time, the gateway shows the following default
parameter configuration:
With this configuration it's possible to send On/Off (Control_ On/Off), change the AC Mode
(Control_ Mode), the Fan Speed (Control_ Fan Speed) and also the Setpoint Temperature
(Control_ Setpoint Temperature). The Status_ objects, for the mentioned Control_ objects, are
also available to use if needed. Objects Status_ AC Ambient Reference Temperature and
Status_ Error/Alarm are shown too.
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox is a registred trademark of Intesis Software SLU

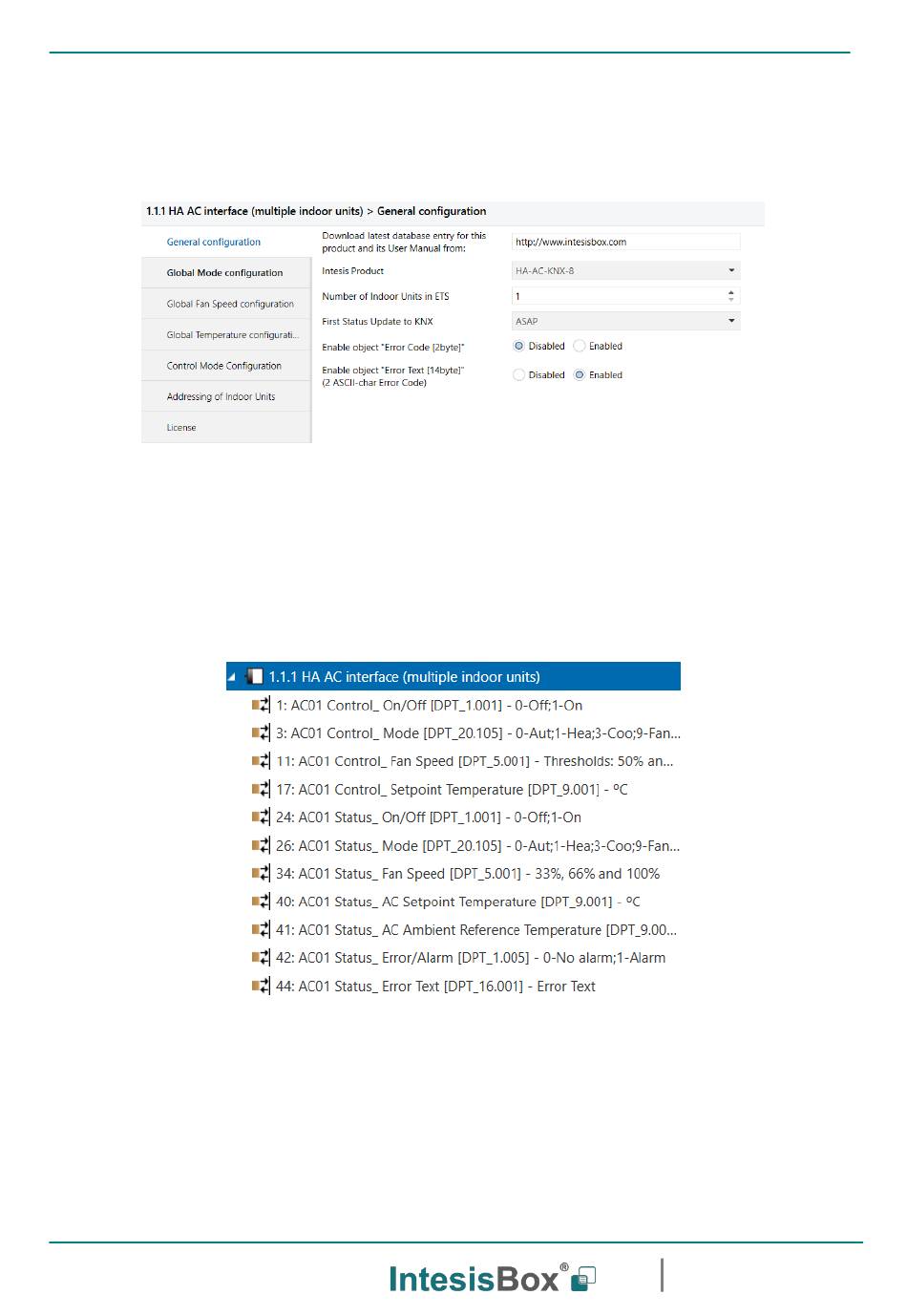

Figure 4.1 Default parameter configuration
Figure 4.2 Default communication objects
User's manual r1.0 EN
URL http://www.intesisbox.com
email info@intesisbox.com
tel +34 938047134
8 / 31
