Installation Instructions
WARNING
TOP SUPPORT REQUIRED TO PREVENT TIPPING
After attaching the pedestal to the drive, secure the top of
the drive to prevent the drive from tipping. The drive can
cause serious personal injury if it is not secured.
•
To secure the drive, fasten 3 M10 bolts at the upper
back edge of the drive enclosure. See
Illustration 1.7 and Illustration 1.9.
1 Enclosure
2 Pedestal
3 Bolt at rear of pedestal

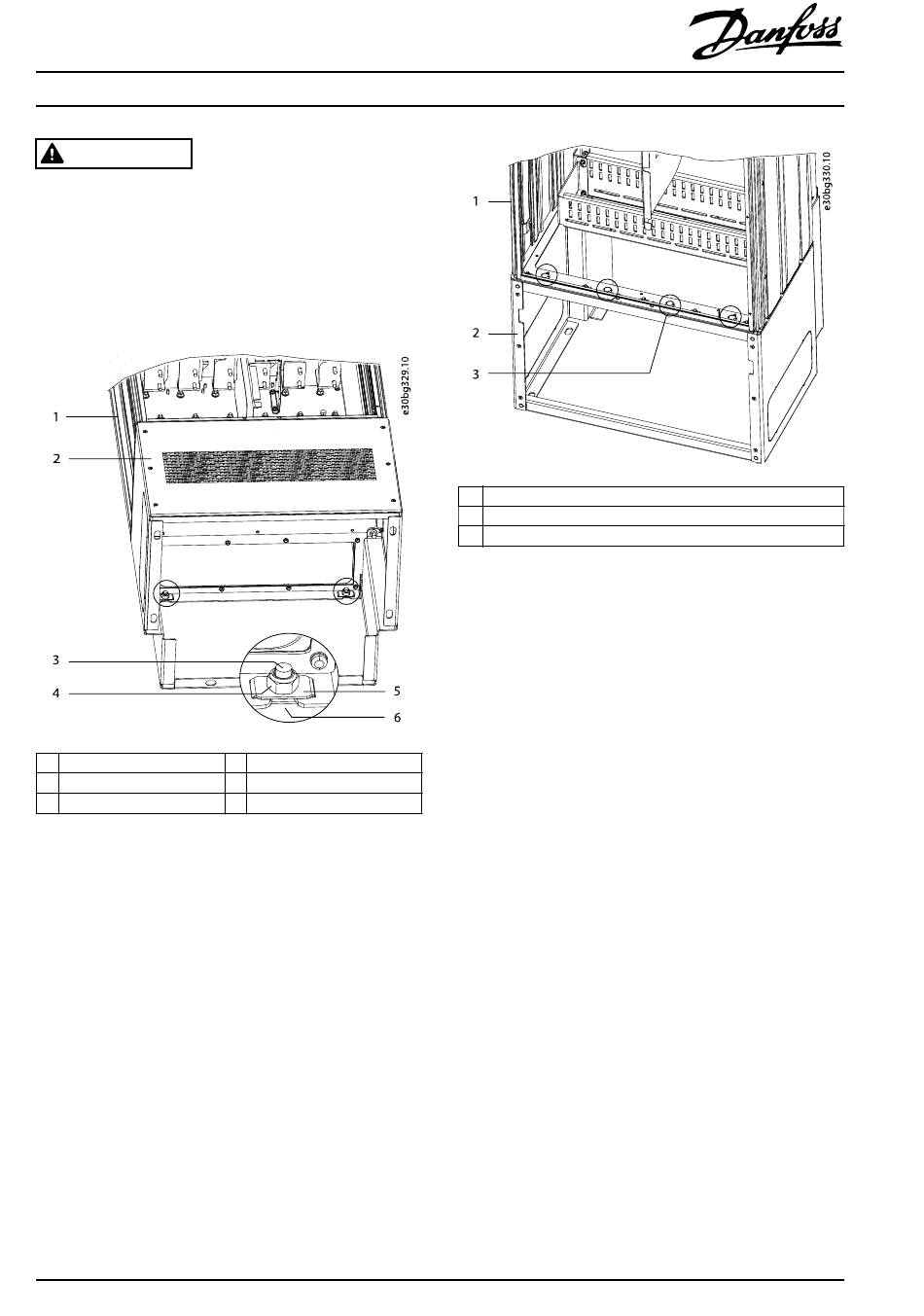

Illustration 1.4 Pedestal-to-Enclosure Back Mounting Points
4
Tall Pedestal Kit for E1h/E2h Drives
®
VLT FC Series FC 102, FC 103, FC 202, and FC 302
4 M10 nylon-insert lock nut
5 Locking bracket
6 Slotted hole in enclosure
Danfoss A/S © 03/2018 All rights reserved.
1 Enclosure
2 Pedestal
3 M10x22 screws (rear corner bolts not shown)
Illustration 1.5 Pedestal-to-Enclosure Front Mounting Points
