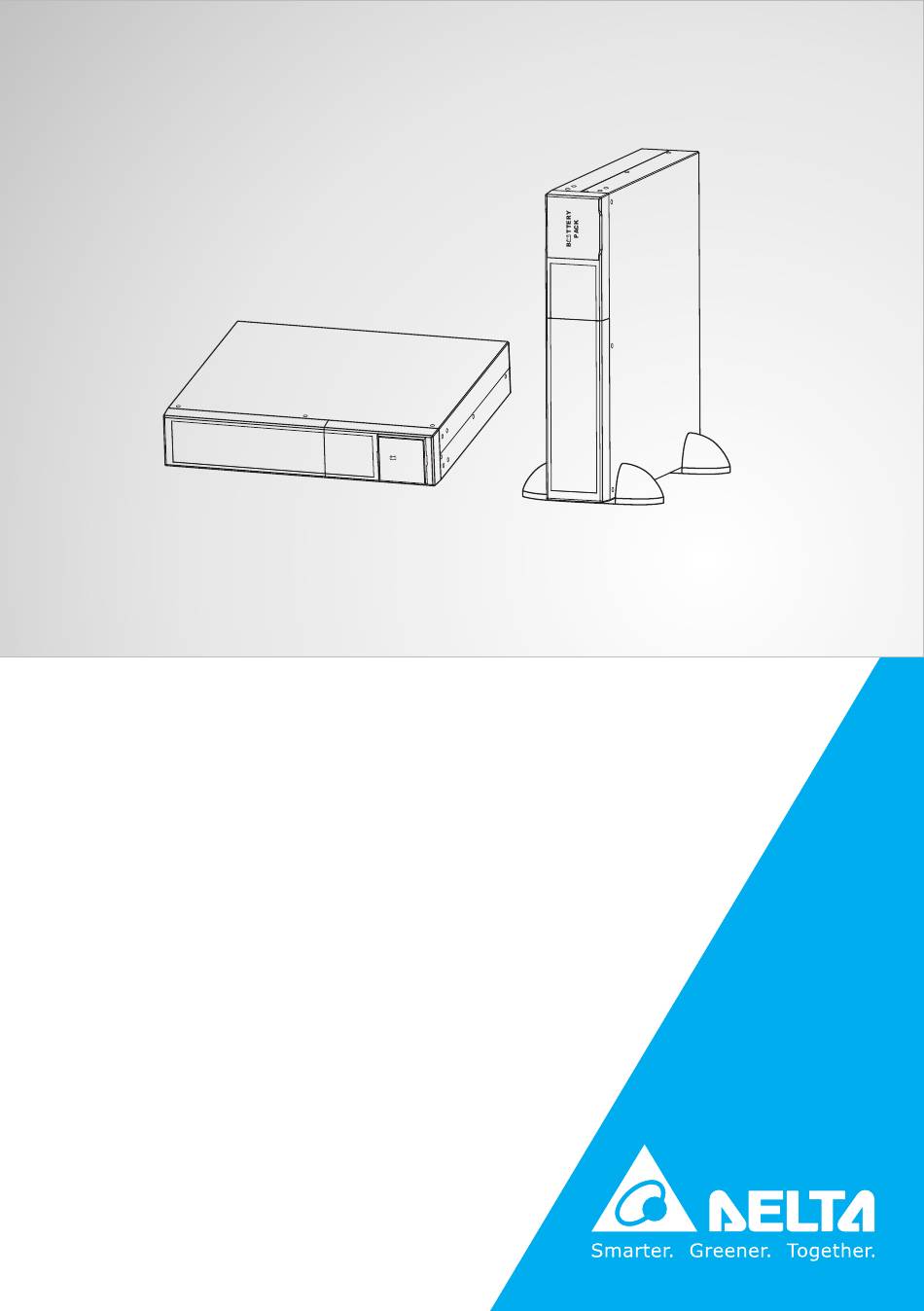

- Page 1 TT ER Y PA CK The power behind competitiveness Delta UPS - Amplon Family External Battery Box for RX 3 kVA User Manual www.deltapowersolutions.com...
- Page 2 Failure to heed these instructions and warnings will void the warranty. Copyright © 2016 by Delta Electronics Inc. All Rights Reserved. All rights of this User Manual (“Manual”), including but not limited to the contents, information, and figures are solely owned and reserved by Delta Electronics Inc.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Chapter 1 : Important Safety Warnings ------------------------------- 1 Chapter 2 : Product Overview and Setup ---------------------------- 3 Rear Panel View ------------------------------------------------- 3 Installation and Connection ----------------------------------- 3 Chapter 3 : Type of Battery Required --------------------------------- 6 Chapter 4 : Battery Installation ------------------------------------------ 7 Chapter 5 : Wiring Diagram----------------------------------------------10 Chapter 6 : Storage &... -
Page 4: Chapter 1 : Important Safety Warnings
When replacing batteries, it is necessary to replace ALL batteries with the same quantity, type & capacity. CAUTION – Do not dispose of battery or batteries in a fire. The battery may ex- plode. Amplon RX Series... - Page 5 Chapter 1 Important Safety Warnings CAUTION – Do not open or mutilate the batteries. The electrolyte from the bat- teries is toxic and harmful to the skin and eyes. CAUTION – Risk of Electric Shock – Hazardous voltage may exist between bat- tery terminals and ground.
-
Page 6: Chapter 2 : Product Overview And Setup
2.2 Installation and Connection Unpacking & Inspection 1. Remove the battery box from the packing. NOTE : The battery box is very heavy, be cautious when unpacking and lifting the unit to avoid injury. 2. Check the inside package: Amplon RX Series... - Page 7 Chapter 2 Product Overview and Setup PACK TTERY The power behind competitiveness Delta UPS - Amplon Family External Battery Box for RX 3 kVA User Manual www.deltapowersolutions.com TT ER Y PA CK Item Quantity External battery box 1 PC User manual...
- Page 8 TT ER Y PA CK PA CK Tower Installation Connecting with UPS and Other Battery Box Follow below installation chart to connect with UPS and other battery box with included cable. 1 battery box 2 battery box Amplon RX Series...
-
Page 9: Chapter 3 : Type Of Battery Required
Chapter 3 Type of Battery Required Chapter 3 : Type of Battery Required This battery box has been designed to operate with the following types of batteries: 1. 72V/ 9Ah Version: 6 pieces of 12V 9Ah batteries. 2. 72V/ 18Ah Version: 12 pieces of 12V 9Ah (6+6) batteries. -
Page 10: Chapter 4 : Battery Installation
Open the package and place the battery box on a horizontal plane. Remove the removable left-hand front panel by pulling it from the lower extremity. Left-hand front panel Remove the 2 screws present and remove the right-hand front panel. Right-hand front panel Amplon RX Series... - Page 11 Chapter 4 Battery Installation Remove the metal top cover of the battery box by unscrewing the 8 screws present on the two sides (4 on the right side and 4 on the left side), 3 screws on the top and 4 screws on the back side. Once the battery box is opened, remove the two battery fixing plates pre- sent on the left side of the battery box by unscrewing the 4 screws present.
- Page 12 Put metal top cover back to the unit. Reinstall the right-hand front panel and secure it with the original 2 screws. After that, replace the left-hand front panel. Connect the battery box to the UPS. Amplon RX Series...
-
Page 13: Chapter 5 : Wiring Diagram
Chapter 5 Wiring Diagram Chapter 5 : Wiring Diagram Battery Box 72V 1 battery bench Batt Link PCBA + Batt Link PCBA - BLACK Breaker BLACK 2 battery bench... - Page 14 Picture example as below: 240mm 280mm 380mm 380mm NOTE : The cable connection from external battery connector to PCB is already present inside the battery box. All the other cable connection should be followed by wiring diagram. Amplon RX Series...
-
Page 15: Chapter 6 : Storage & Maintenance
Chapter 6 Storage & Maintenance Chapter 6 : Storage & Maintenance The unit contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer. Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material. -
Page 16: Appendix 1 : Warranty
Appendix 1 : Warranty Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship within the warranty period. If the product has any failure problem within the warranty period, Seller will repair or replace the product at its sole discretion according to the failure situation.
