JessEm Tool TA FENCE Owner's Manual page 5

The following instructions are for mounting the #04500 TA
Fence to a JessEm Mast-R-Top or a JessEm Mast-R-Lift Excel II Top
If you are mounting your TA Fence to a Non-JessEm Table, please go to Page 10.
Step 1: Securing tracks to Table Top
a.
JessEm's Mast-R-Top and Mast-R-Lift Excel II
table tops are pre-drilled for easy assembly.
b.

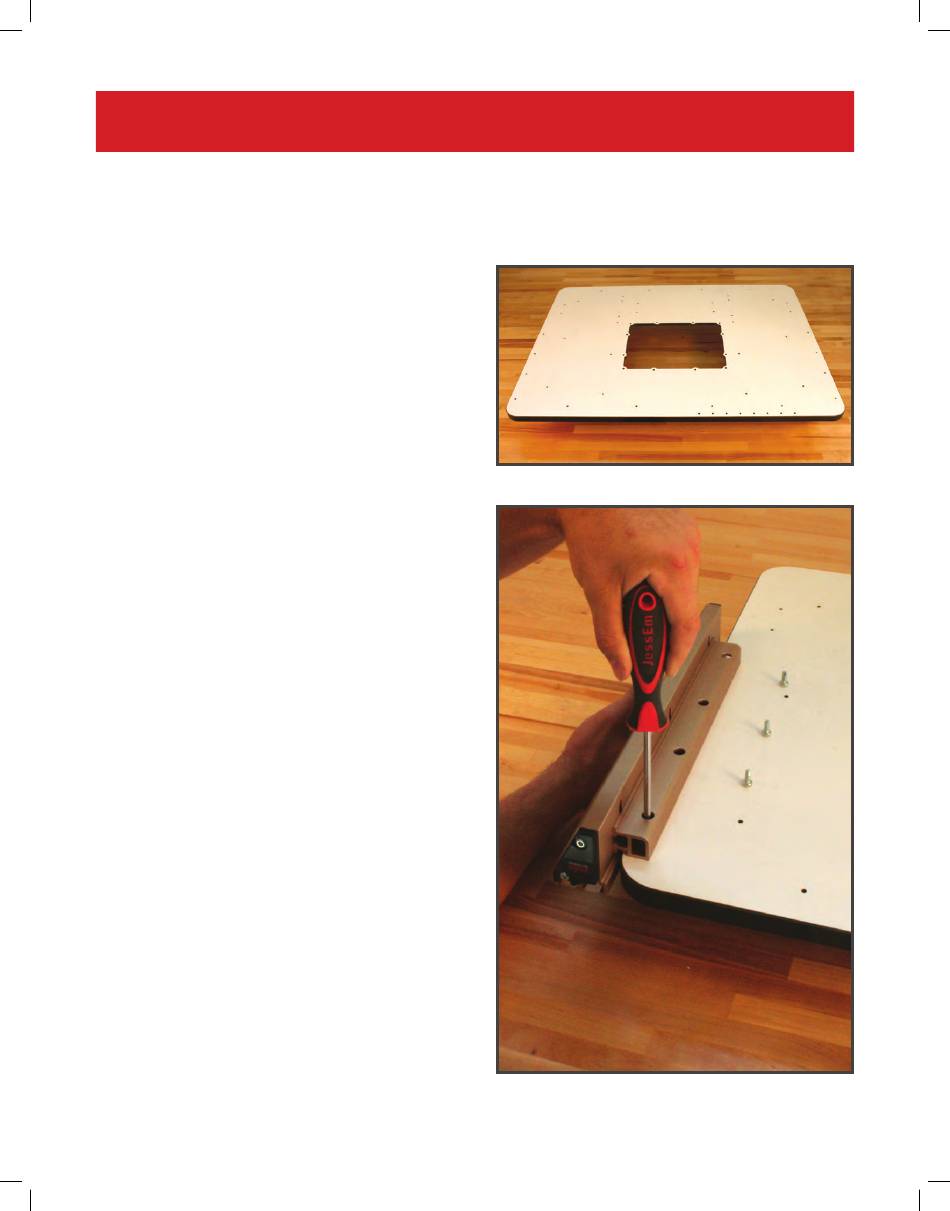

Using two wooden spacers, at least 2" high
flip your table top upside down on a table to
raise the table off your working surface a couple
of inches. See Figure 1.
c. Position the left and right track mount assemblies
to both sides of the table.
d. With the 10-24 x ½" Self TappingTorx Drive
Screws (Part #32), fasten and secure the tracks
to the table. See Figure 2.
Figure 1
Figure 2
5
