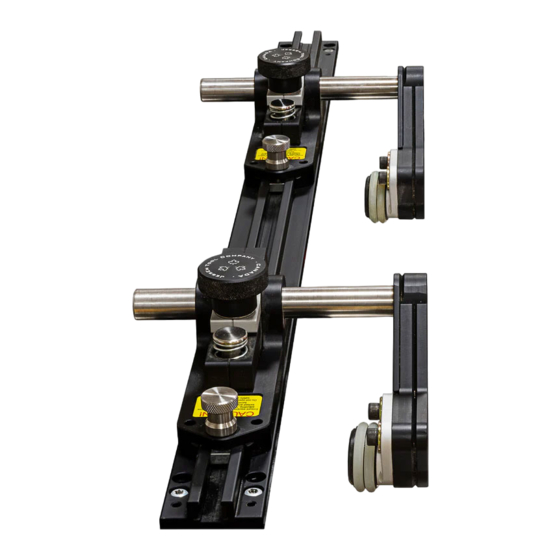

CLEAR CUT - TS ™
Precision Stock Guides
for your Table Saw
Model #04301
Thank you for choosing this product from JessEm Tool
Company. We appreciate your support and hope that
our product serves you well. This product is designed to
provide many years of reliable service, provided it is
used as intended and taken care of.
This user manual will assist you in assembly and
general operation of this product. It is not our intent
to teach you about woodworking. It is assumed that
you are an experienced woodworker with the basic
skills and experience necessary to use this product
safely. If after reading the following instructions, if
you are unsure or uncomfortable about safely using
this product we urge you to seek additional
information through widely available woodworking
books or classes.
As part of our Continuous Product Improvement
Policy, JessEm Products are always advancing in
design and function. Therefore there may be
differences between what is shown in our catalogs,
website or at retail display and what is sold at time of
purchase. We reserve the right to make positive
changes to our products at our discretion.
61 Forest Plain Road
Oro-Medonte, Ontario, Canada
L3V 0R4
Toll Free: 1-800-436-6799
Local: 705-726-8233
Fax: 705-327-0295
Email: jessem@jessem.com
Website: www.jessem.com
IMPORTANT
Read and understand the contents of this
manual before assembly or operation of this
product.
IMPORTANT SAFETY PRECAUTIONS
•
Before operating any table saw, read and
understand all safety instructions in the
owners manual that came with the saw.
•
If you do not have a manual, contact the
manufacturer and obtain one before using
any power tool.
•
Always wear eye protection in compliance
with ANSI safety standards when
operating any power tool.
•
Always use proper guards and safety
devices when operating power tools and
machinery.
•
Carefully check saw blades before each use.
Do not use if damage or defect is suspected.
•
Do not wear loose clothing or jewelry that
may catch on tools or equipment.
•
Unplug the tool or machine when mounting
or making any adjustments to mechanical
performance
Advertisement
Related Manuals for JessEm Tool CLEAR CUT-TS
Summary of Contents for JessEm Tool CLEAR CUT-TS
- Page 1 • If you do not have a manual, contact the Thank you for choosing this product from JessEm Tool manufacturer and obtain one before using Company. We appreciate your support and hope that any power tool.
- Page 2 THERE ARE A FEW VERY IMPORTANT POINTS TO REMEMBER WHEN ADJUSTING YOUR STOCK GUIDES INTO POSITION. #1 NEVER PLACE THE OUTFEED STOCK GUIDE ON THE SIDE OF THE CUT OPPOSITE TO THE FENCE. YOUR STOCK GUIDES STEER THE STOCK INTO THE FENCE AND IF THE OUTFEED GUIDE WAS PLACED ON THE OPPOSITE SIDE OF THE CUT TO THE FENCE, IT WOULD EFFECTIVELY STEER YOUR WORK INTO THE BLADE CAUSING IT TO BIND ON THE BLADE AND POSSIBLY CREATING A DANGEROUS SITUATION WHERE THE STOCK...
- Page 3 CONTENTS CONTENT OF BOXES PART # DESCRIPTION 04301-A Stock Guides E0059-1-3 30" T-Track F0307 #10 Self Tapping Screws F0028 1/4-20 Square Nuts F0153 1/4"-20 x 1/2" Low Head Socket Cap Screws ASSEMBLY TOOLS INCLUDED T-25 Torx Screwdriver M0310 M0045 1/8" Hex Key M0325 #19 Drill Bit STOCK...
-
Page 4: Exploded Parts View
EXPLODED PARTS VIEW PART # DESCRIPTION PER UNIT PER SET E0054-26-3 Clamping Knob F0335 3/8" Stainless Flat Washer E0092-1-6 Pivot Clamp E0001-25-3 Pivot Bracket E0210-5-6 Track Knob 3/8"- 24 Hex Nut F0336 E0260-1-3 Base F0130 1/4"-20 x 5/8 Socket Head Cap Screw S0014-4 Track Mounting Bar E0233-5... - Page 5 INSTALLING YOUR CLEAR-CUT STOCK GUIDES TS Your Clear-Cut TS Stock Guides come with a 30” track for mounting your stock guides to your table saw or router table fence. The track has three sets of eight holes on the track. One set is used as a guide for drilling the pilot holes for using the self tapping screws.
- Page 6 The track has eight #19 drill size holes to be used as a drill guides for pilot holes for the self tapping screws. These are the smallest holes on the track and should be closest to the back of your saw. These holes are ½” in from of the counter bored mounting holes for the self tapping screws.
- Page 7 INSTALLING YOUR STOCK GUIDES TO A ROUTER TABLE OR TABLE SAW WITH AN UP TOP 1/4" T-SLOT There is an additional set of eight (8) counter bored holes for use with the ¼”-20 Low Head Cap Screws and the ¼”-20 square nuts, but only one row will line up with your T-Slot. We have included four screws and four square nuts for use with these.
- Page 8 USING YOUR CLEAR-CUT TS STOCK GUIDES Step one in using your new stock guides is to position the stock guides. One on the infeed side and the other on the outfeed side. They should be adjusted to ENSURE THAT THE ROLLER IS CLEAR OF THE BLADE ON BOTH THE INFEED AND OUTFEED SIDE.
- Page 9 #19 DRILL HOLES AT BACK OF FIGURE #5 FENCE. THESE HOLES USED AS GUIDES FOR DRILLING #19 PILOT HOLES FOR SELF TAPPING SCREWS. TRACK TO BE MOVED TOWARD FRONT OF SAW 1/2" CAUTION! FROM FINAL POSITION FOR DRILLING PILOT HOLES THEN NEVER PLACE OUTFEED STOCK MOVED TO FINAL POSITION FOR FASTENING TO SAW FENCE.
-
Page 10: Warranty Limitations
Contact JessEm for a warranty claim return authorization and instructions to proceed. The consumer is responsible for shipping costs to return product to JessEm Tool Company. We will repair or replace the product at our discretion and JessEm Tool will return shipment to you at no charge.
