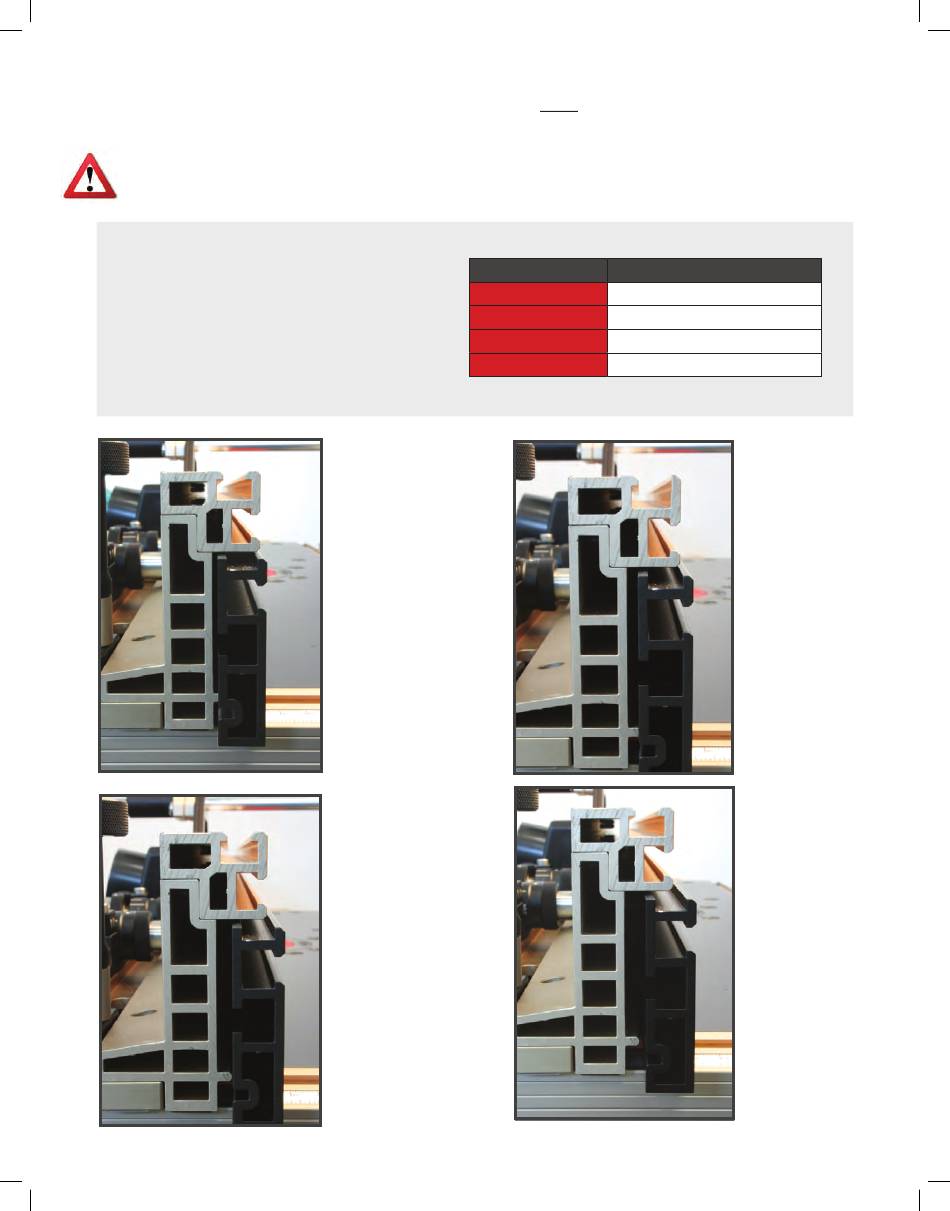

STEP 3:
When you have the correct setting, retighten both Jointing Adjustment Knobs
(Part #23).
ENSURE THE SETTING IS THE SAME ON BOTH JOINTING ADJUSTMENT DIALS BEFORE
TABLE 1
Revolution(s) Adjustment:
Each laser engraved gradation
line is equal to 1/256"
TIGHTENING BOTH JOINTING ADJUSTMENT KNOBS
1 COMPLETE
REVOLUTION = 1/16"
3 COMPLETE
REVOLUTIONS = 3/16"
Revolutions
1
2
3
4
1/4" (Maximum Adjustment)
13
Adjustment
1/16"
1/8"
3/16"
2 COMPLETE
REVOLUTIONS = 1/8"
4 COMPLETE
REVOLUTIONS = 1/4"
