JessEm Tool Rout R Lift PRESTIGE 02322 User Manual

Rout
R
User Manual
Model #02322
&
Model #02323
Thank you for choosing this product from JessEm Tool
Company. We appreciate your support and hope that our
product serves you well. This product is designed to provide
many years of reliable service provided it is used as intended
and taken care of.
This user manual will assist you in assembly and general
operation of this product. It is not our intent to teach you about
woodworking. It is assumed that you are an experienced
woodworker with the basic skills and experience necessary to
use this product safely. If after reading the following
instructions, you are unsure or uncomfortable about safely
using this product, we urge you to seek additional information
through widely available woodworking books or classes.
IMPORTANT!
Read and understand the contents of this
manual before assembly or operation of this
product.
IMPORTANT SAFETY PRECAUTIONS

Before operating any router, read and
understand all safety instructions in the
owner's manual that came with the router.

If you do not have a manual, contact the
manufacturer and obtain one before using any
power tool.

Always wear eye protection in compliance with
ANSI safety standards when operating any
power tool.

Always use proper guards and safety devices
when operating power tools and machinery.

Carefully check router bits before each use.
Do not use if damage or defect is suspected.

Do not exceed the recommended RPM for any
router bit.

Do not wear loose clothing or jewelry that
may catch on tools or equipment. Unplug the
tool or machine when mounting or making
any adjustments to mechanical performance
DO NOT USE A CORDLESS DRILL TO RAISE
AND LOWER THE LIFT CARRIAGE. THE AMOUNT
OF FRICTION WILL CAUSE PREMATURE WEAR
OF THE THREADS AND WILL VOID WARRANTY
Lift™ PRESTIGE
61 Forest Plain Road
Oro-Medonte, Ontario, Canada
L3V 0R4
Toll Free: 1-800-436-6799
Local: 705-726-8233
Fax:: 705-327-0295
Email: jessem@jessem.com
Website: www.jessem.com
As part of our Continuous Product Improvement Policy,
JessEm products are always advancing in design and
function. Therefore there may be differences between
what is shown in our catalogs, website or at retail
display and what is sold at time of purchase. We reserve
the right to make positive changes to our products at
our discretion.
Contents:

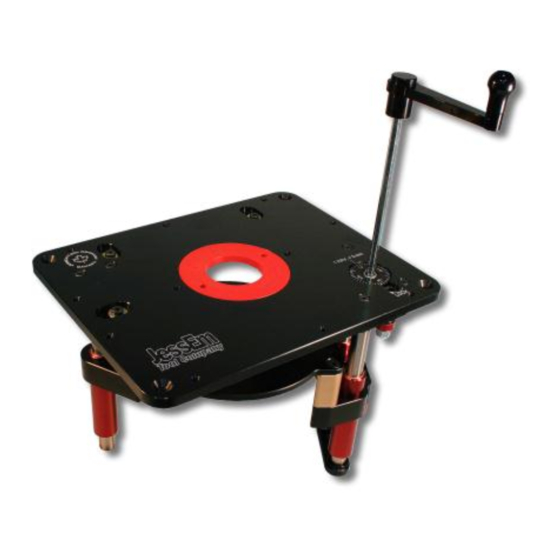

1 - Rout-R-Lift™ Prestige
1 - Height Adjustment Handle
10 - 1/4-28 x ¼" Leveling Set Screws
1 - 5/32 Hex Key
Also includes 3 - Insert Rings, 1 - Insert Ring Wrench,
1/8" Hex Key, 1 - Start Pin, 3/16" Hex Key
4 – ¼-20 X 1" Flat Head Cap Screw (Used for Mast-R-Top
Model #03006)
Suggested Router Bit Speeds
Bit Diameter
1" (25mm)
1 - 1/4"- 2" (30-50mm)
2 - 1/4" - 2-1/2" (55-65mm)
3" - 3 - 1/2" (75-90mm)
ROUTER SAFETY PRECAUTIONS

Never force the bit or overload the router beyond
the expectations of the tool.

Be sure that at least 3/4 of the shank length
is inserted securely in the router collet.

Never bottom out the bit in the collet. Allow 1/8"
clearance between shank and bottom of collet.

Always make sure the fence on your router table
is locked into position before each use.

Use reduced RPM speeds for large diameter bits.

Always rout in two or more passes when
large amounts of stock must be removed.
Max. Speed
24,000 RPM
18,000 RPM
16,000 RPM
12,000 RPM
