JessEm Tool mast-r-lift II User Manual

Mast R
User Manual
Model #02123
Thank you for choosing this product from JessEm Tool
Company. We appreciate your support and hope that
our product serves you well. This product is designed
to provide many years of reliable service provided it is
used as intended and taken care of.
This user manual will assist you in assembly and
general operation of this product. It is not our intent
to teach you about woodworking. It is assumed that
you are an experienced woodworker with the basic
skills and experience necessary to use this product
safely. If after reading the following instructions, if
you are unsure or uncomfortable about safely using
this product we urge you to seek additional
information through widely available woodworking
books or classes.
Suggested Router Bit Speeds
Bit Diameter
1" (25mm)
1-1/4" - 2" (30-50mm)
2-1/4" - 2-1/2" (55-65mm)
3" - 3-1/2" (75-90mm)
As part of our Continuous Product Improvement
Policy, JessEm products are always advancing in
design and function. Therefore there may be
differences between what is shown in our catalogs,
website or at retail display and what is sold at time of
purchase. We reserve the right to make positive
changes to our products at our discretion.
Lift™ II
Max. Speed
24,000 RPM
18,000 RPM
16,000 RPM
12,000 RPM
61 Forest Plain Road,
Oro-Medonte, Ontario,
L3V 0R4
866-272-7492 Toll Free
705-726-8233 Local Phone
705-327-0295 Fax
Email: jessem@jessem.com
www.jessem.com
IMPORTANT!
Read and understand the contents of this manual
before assembly or operation of this product.
CONTENTS:

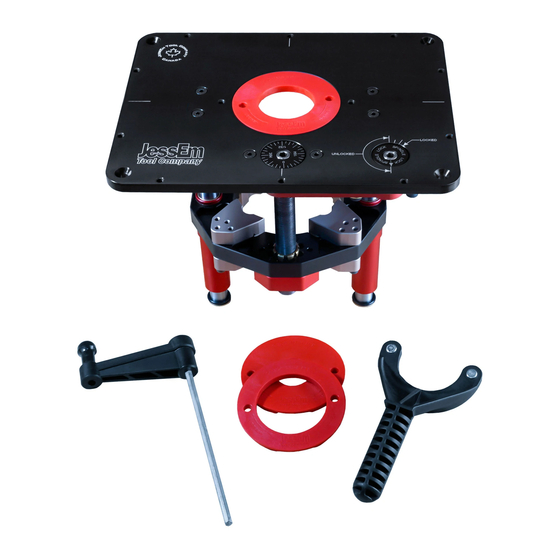

1-Mast-R-Lift™ II
1-Height Adjustment Handle
10 - 1/4-28 x ¼" Leveling Set Screws
1- 5/32 Hex Key
Also includes 1-Insert Ring, 1-Insert Ring Wrench,
1/8" Hex Wrench, 1-Start Pin
4 - M6 x 30mm Mounting Screws (Used for Mast-R-Top
#03004A and #03005)
4 – ¼-20 X 1" Flat Head Cap Screw (Used for Mast-R-
Top Model #03004)
IMPORTANT SAFETY PRECAUTIONS
•
Before operating any router, read and understand
all safety instructions in the owner's manual that
came with the router.
•
If you do not have a manual, contact the
manufacturer and obtain one before using any
power tool.
•
Always wear eye protection in compliance with ANSI
safety standards when operating any power tool.
•
Always use proper guards and safety devices
when operating power tools and machinery.
•
Carefully check router bits before each use. Do not
use if damage or defect is suspected.
•
Do not exceed the recommended RPM for any
router bit.
Canada
Website
