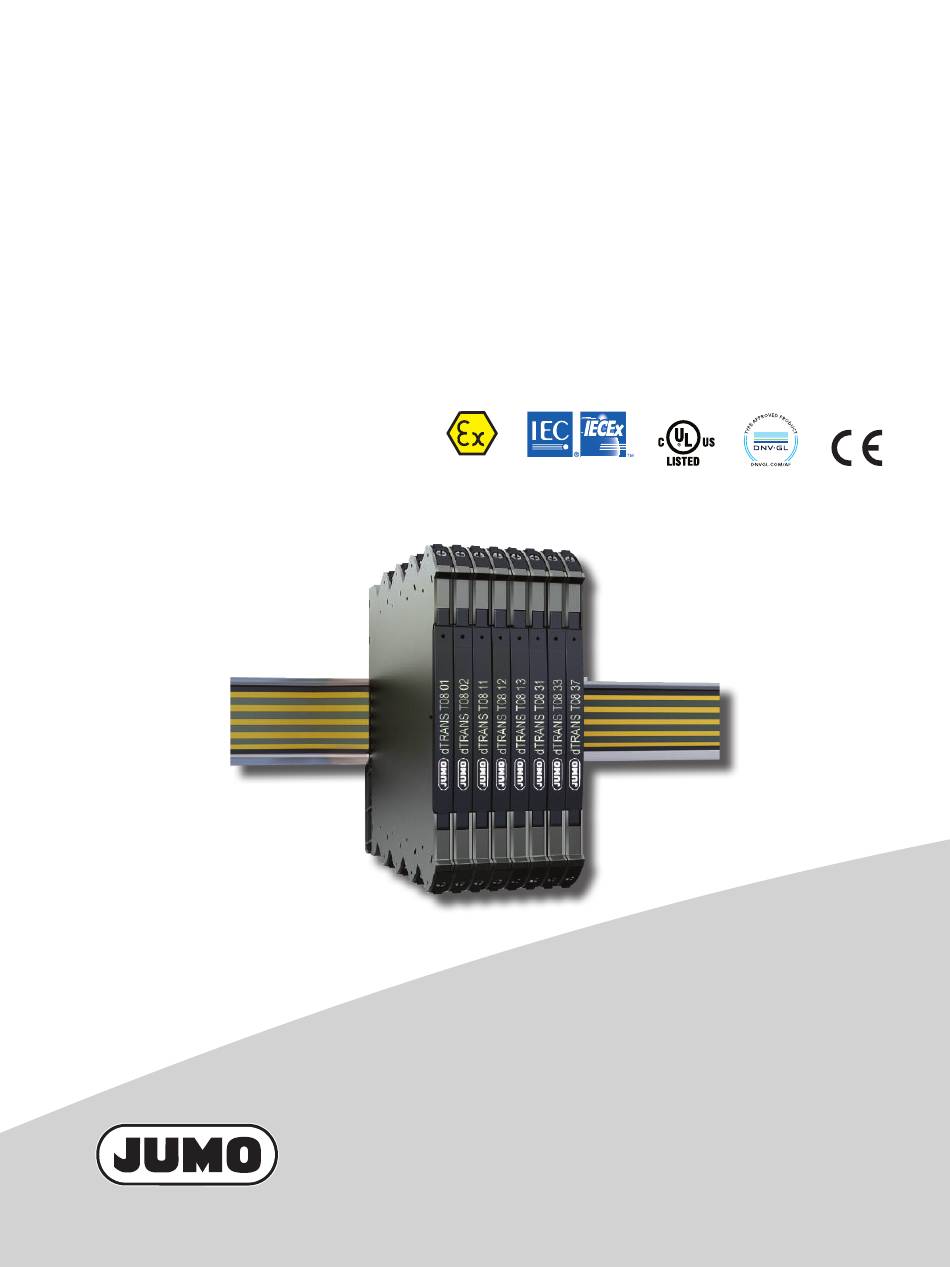

- Page 1 JUMO dTRANS T08 XX Temperature transmitter series 6 mm 707101, 707102, 707111, 707112, 707113, 707131, 707133, 707137 ZONE 2 Zone 2 Operating Manual 70710100T90Z001K000 V1.00/EN/00698632...
-
Page 2: Table Of Contents
Mounting and demounting of JUMO dTRANS T/S08 ........ -
Page 3: Warning
To avoid explosion and serious injury: Modules having mechanical failures must be returned to JUMO GmbH & Co. KG for repair or replacement. Repair of the device must be done by JUMO GmbH & Co. KG only. In applications where hazardous voltage is connected to in-/outputs of the device, sufficient spacing or isolation from wires, terminals and enclosure - to surroundings (incl. -
Page 4: Ul Installation
A power switch should be easily accessible and close to the device. The power switch shall be marked as the disconnecting unit for the device. JUMO dTRANS T/S08 must be mounted on a DIN rail according to EN 60715. UL installation Use 60/75°C copper conducters only. - Page 5 When disconnected, the device may be cleaned with a cloth moistened with distilled water. Liability To the extent the instructions in this manual are not strictly observed, the custom er cannot advance a demand against JUMO GmbH & Co. KG that would otherwise exist according to the concluded sales agreement.
-
Page 6: Flexible Supply
Note: Device type JUMO dTRANS T08 01, T08 02, T08 31, T08 33 and T08 37 can only be supplied via the DIN rail solution with direct wiring on each device. (*) External fuse characteristics: The 2.5 A fuse must break after not more than 120 seconds at 6.4 A. -
Page 7: Mounting And Demounting Of Jumo Dtrans T/S08
Mounting and demounting of JUMO dTRANS T/S08 Picture 1: Mounting on DIN rail / power rail. Click the device onto the rail. Picture 2: Demounting from DIN rail / power rail. First, remember to demount the connectors with hazardous voltages. -
Page 8: Installation On Din Rail / Power Rail
The devices in the JUMO dTRANS T/S08 series can be installed on a DIN rail or on a power rail (only JUMO dTRANS T08 11, T08 12 and T08 13). For marine applications the devices must be supported by a module stop (TN: 00697615). Power supply units can be mounted on the power rail according to customer requirements. -
Page 9: Side Label
Side label V1.00/EN/00698632 - 70710100T90Z001K000... -
Page 10: Applications
Temperature transmitter series 6 mm JUMO dTRANS T08 01 / JUMO dTRANS T08 02 / JUMO dTRANS T08 11 / JUMO dTRANS T08 12 / JUMO dTRANS T08 13 / JUMO dTRANS T08 31 / JUMO dTRANS T08 33 / JUMO dTRANS T08 37 •... -
Page 11: Order Codes
TN: 00697615 = Screwable module stop for rail profile Accessories for power rail devices TN: 00697612 = Power connector unit for JUMO dTRANS T/S08 XX TN: 00697614 = Power rail profile (7.5 mm / 750 mm) Technical data Environmental conditions: Operating temperature . -
Page 12: Jumo Dtrans T08 11 / Jumo Dtrans T08
Loop-powered: JUMO dTRANS T08 31 ....... 5.5...35 VDC JUMO dTRANS T08 33 ....... 3.3...35 VDC JUMO dTRANS T08 37 . - Page 13 ≤ ± 0.1% of span 0.1°C/°C (basic) or JUMO dTRANS T08 01 ≤ 1°C ≤ ± 0.01% of span / °C EMC immunity influence ....... < ±0.5% of span Extended EMC immunity: NAMUR NE 21 .
- Page 14 Min. load Sensor Sensor Range Limit Range Limit error error JUMO dTRANS T08 01 JUMO dTRANS T08 02 0/1...5 V 0/0.875...5.125 V 0/5.5 V 0/2...10 V 0/1.75...10.25 V 0/11 V 10 kΩ JUMO dTRANS T08 11 JUMO dTRANS T08 12...
-
Page 15: Connections
T08 37 JUMO dTRANS T/S08 PCU JUMO dTRANS T08 01, JUMO dTRANS T08 02 and JUMO dTRANS T08 33: No galvanic isolation JUMO dTRANS T08 31 and JUMO dTRANS T08 37: 2 port isolation (reinforced) JUMO dTRANS T08 11, JUMO dTRANS T08 12 and JUMO dTRANS T08 13: 3 port isolation (reinforced) -
Page 16: Front Led Indications
Front led indications For JUMO dTRANS T08 01, JUMO dTRANS T08 02, JUMO dTRANS T08 11, JUMO dTRANS T08 12 and JUMO dTRANS T08 13 The device is equipped with a green power LED in the front to indicate the operation status, see the table below. -
Page 17: Dip-Switch Configuration
Response time < 30 ms < 30 ms < 60 ms Configuration mode DIP switch configuration JUMO dTRANS T08 01 and JUMO dTRANS T08 02 and JUMO dTRANS T08 13 and JUMO dTRANS T08 11 JUMO dTRANS T08 12 JUMO dTRANS T08 37 TC J &... -
Page 18: Temperature Range Programming
Valid TC J range: -100...+1200°C = correct DIP-switch setting Valid TC K range: -180...+1372°C = correct DIP-switch setting • JUMO dTRANS T08 02, JUMO dTRANS T08 12 and JUMO dTRANS T08 33 - only Pt100 input available Valid Pt100 range: -200...+850°C = correct DIP-switch setting •... - Page 19 JUMO GmbH & Co. KG JUMO Instrument Co. Ltd. JUMO Process Control, Inc. Street address: JUMO House 6733 Myers Road Moritz-Juchheim-Straße 1 Temple Bank, Riverway East Syracuse, NY 13057, USA 36039 Fulda, Germany Harlow, Essex, CM20 2DY, UK Delivery address:...
