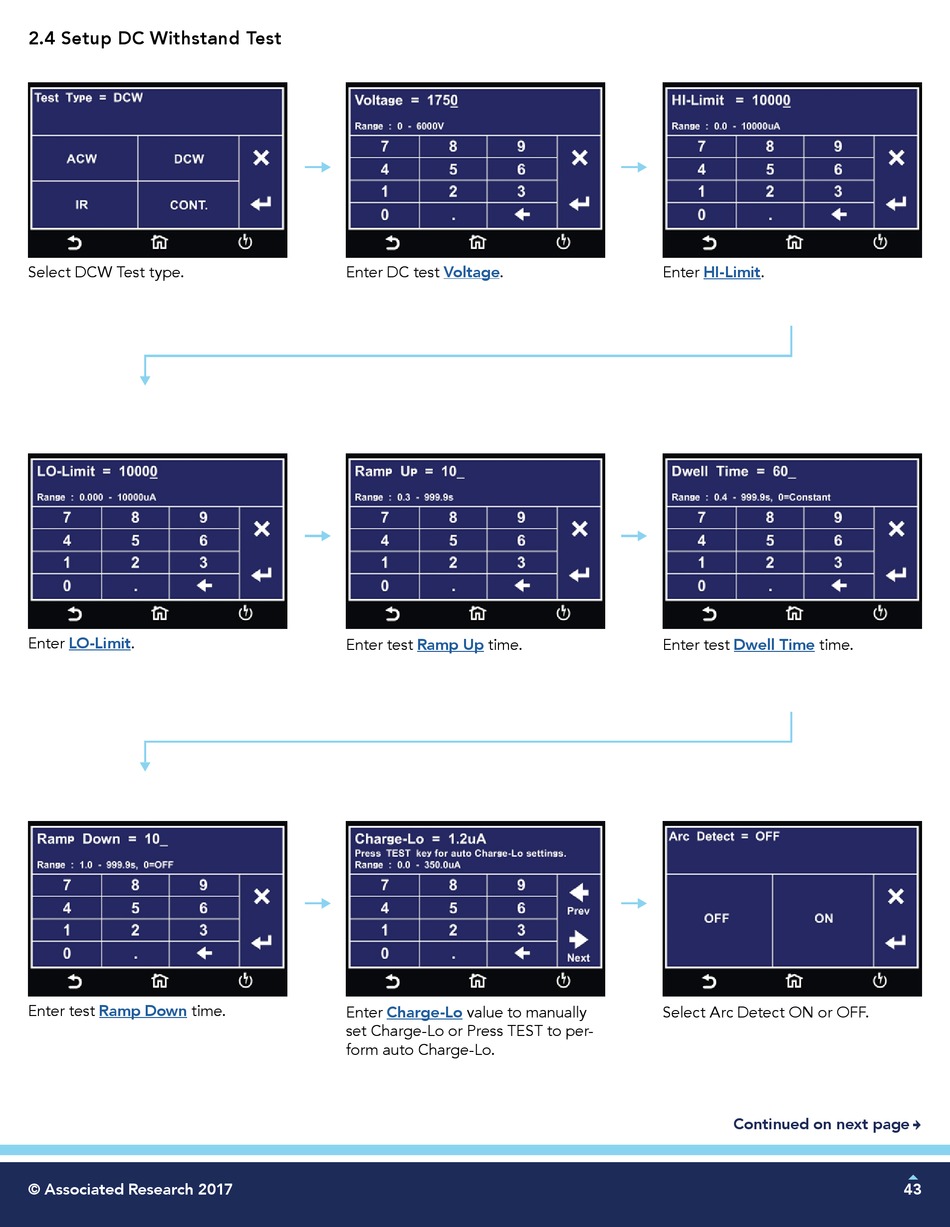

2.4 Setup DC Withstand Test
Select DCW Test type.
Enter LO-Limit.
Enter test
time.
Ramp Down
© Associated Research 2017
Enter DC test Voltage.
Enter test
time.
Ramp Up
Enter
Charge-Lo
value to manually
set Charge-Lo or Press TEST to per-
form auto Charge-Lo.
Enter HI-Limit.
Enter test
time.
Dwell Time
Select Arc Detect ON or OFF.
Continued on next page
C
43
