Installing the Pillars, Crossbars, and Rear Kick Plate/Toe Cap
3

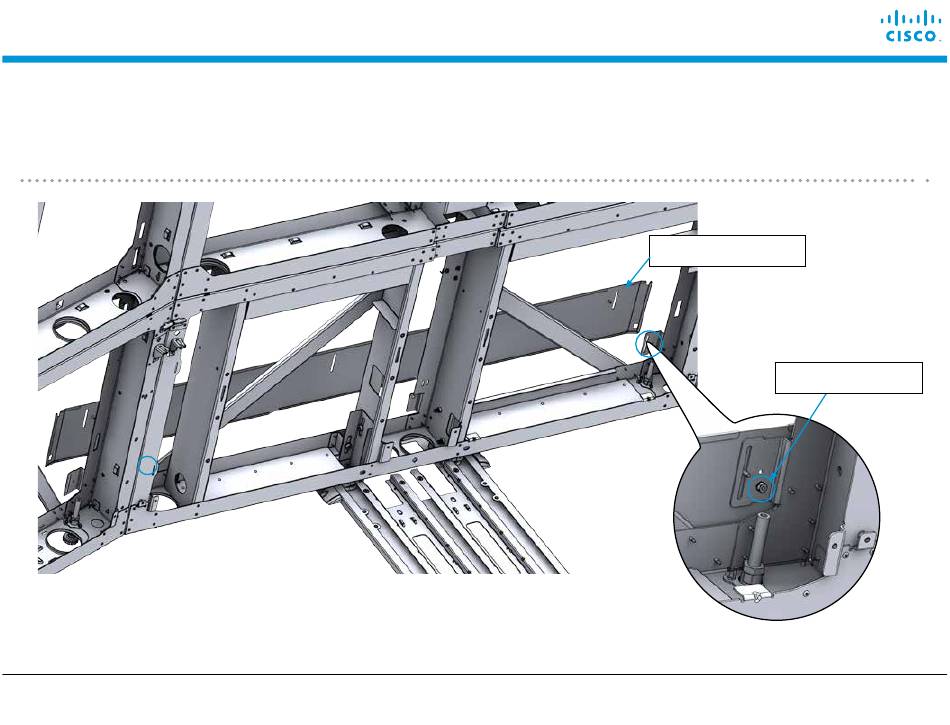

Attach the lower rear kick plate 700-43100-xx to the endpoint structure. Align the threaded studs to the
slots in the display stand, then loosely install (but do not fully tighten) using 2x M4 nuts 69-2793-xx.
Page 4-4
© 2015 Cisco Systems, Inc. All rights reserved.
700-43100-xx
2x 69-2793-xx
