Installing the Lower and Upper Display Frames

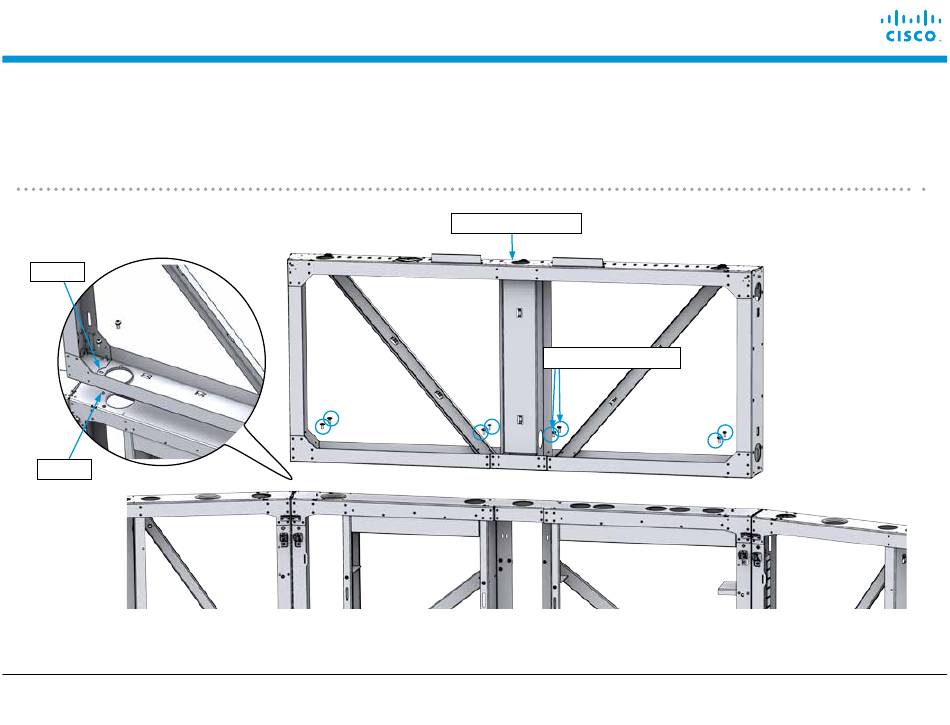

Assemble the upper center frame 800-40948-xx to the lower center frame 800-40920-xx. Align the

pins on the lower frame with the slot and hole on the upper frame (a slot on the left side of the upper

frame, a hole on the right). Install 8x black M8 X 16mm screws 69-2792-xx and tighten with a #3 Phillips

driver.

Slot

Page 2-8

800-40948-xx

8x 69-2792-xx
