- Page 1 Instruction Manual Backup Camera System With Dual Lens Camera RVS-813613-NM Reverse With Confidence ™...
- Page 2 Warranty....... 16 Disclaimer....... 17 Rear View Safety...
- Page 3 NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle.
- Page 4 Rear View Camera System. If you back up while looking only at the monitor, you may cause Rear View Safety...
-
Page 5: Installation
INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified. - Page 6 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
- Page 7 Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot/moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly.
- Page 8 1. To Attach the Pedestal mount to the dashboard or to the head-liner use self-tapping screws and/or the adhesive pad. 2. Attach monitor to mount, and adjust mounting angle to allow opti- mum driver viewing comfort. (see figure 1.1 on page 12) Rear View Safety...
- Page 9 Wiring To power the system connect the power (RED) 12V+ wire to ignition power and the ground (BLACK) wire to chassis ground. • These are the only wires needed to power the entire system and all the cameras. Each camera can be seen at any time by simply pressing the power button and using the V1/2 button to toggle.
- Page 10 • There is a built-in voltage regulator for our systems which can handle 12-24 volts. Real consumption is 10 to 30 Volts. 1. Red - Power (+) 2. Yellow - Video 3. Green - Mirror / Normal Imaging 4. White - Audio 5. Black - Ground (-) Rear View Safety...
- Page 11 Monitor 3 Amp Fuse 1. DC12V-24V (red) 2. Ground (black) 3. Port #3 (blue) 4. Port #2 (white) 5. Port #1 (yellow) Reverse With Confidence ™...
- Page 12 • Grid Position: Adjust grid lines • Auto Power: On: Monitor will automatically turn on when powered. Off: Monitor will only turn on when triggered. Auto: Monitor will follow previous state. • Reset: Reset settings to factory default Rear View Safety...

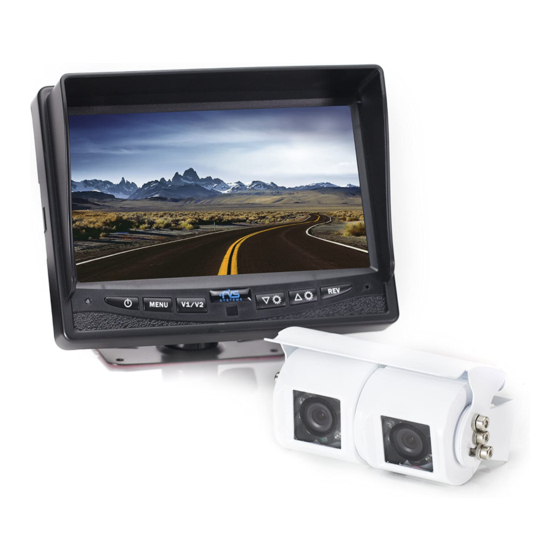

- Page 13 Dual Camera - Perfect for Viewing Traffic and Vehicle Bumper 130° Ultra-Wide all Encompassing View 18 Infra-Red Lights - 9 on Each Camera Completely Waterproof - IP68 Rating Built-in High Gain Mic Reverse With Confidence ™...
-
Page 14: Monitor Information
Storage Temperature -30°C ~ +85°C Video System Auto NTSC/PAL Overall Dimensions 7" (L) x 5.25" (H) x 1" (D) Weight 400G Vibration Rating DOT PITCH 0.1926 (H) X 0.1710 (V)mm Active Area 154.08(H) X 85.92(v)mm Sync System Internal Rear View Safety... -
Page 15: Internal Synchronization
Camera Information Camera 1/3" Sony® CCD Picture Elements 250,000 pixels Gamma Correction r=0.45 to 1.0 Image Sensor 480 TV Lines PAL: 500 (H) X 582 (V), NTSC: 510 (H) X 492 (V) View Angle 130° Lens 2.1mm Sync System Internal Synchronization Infra-red distance 50 Feet (18 Infrared) Usable Illumination... -
Page 16: One Year Warranty
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES. - Page 17 FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN...
- Page 18 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
