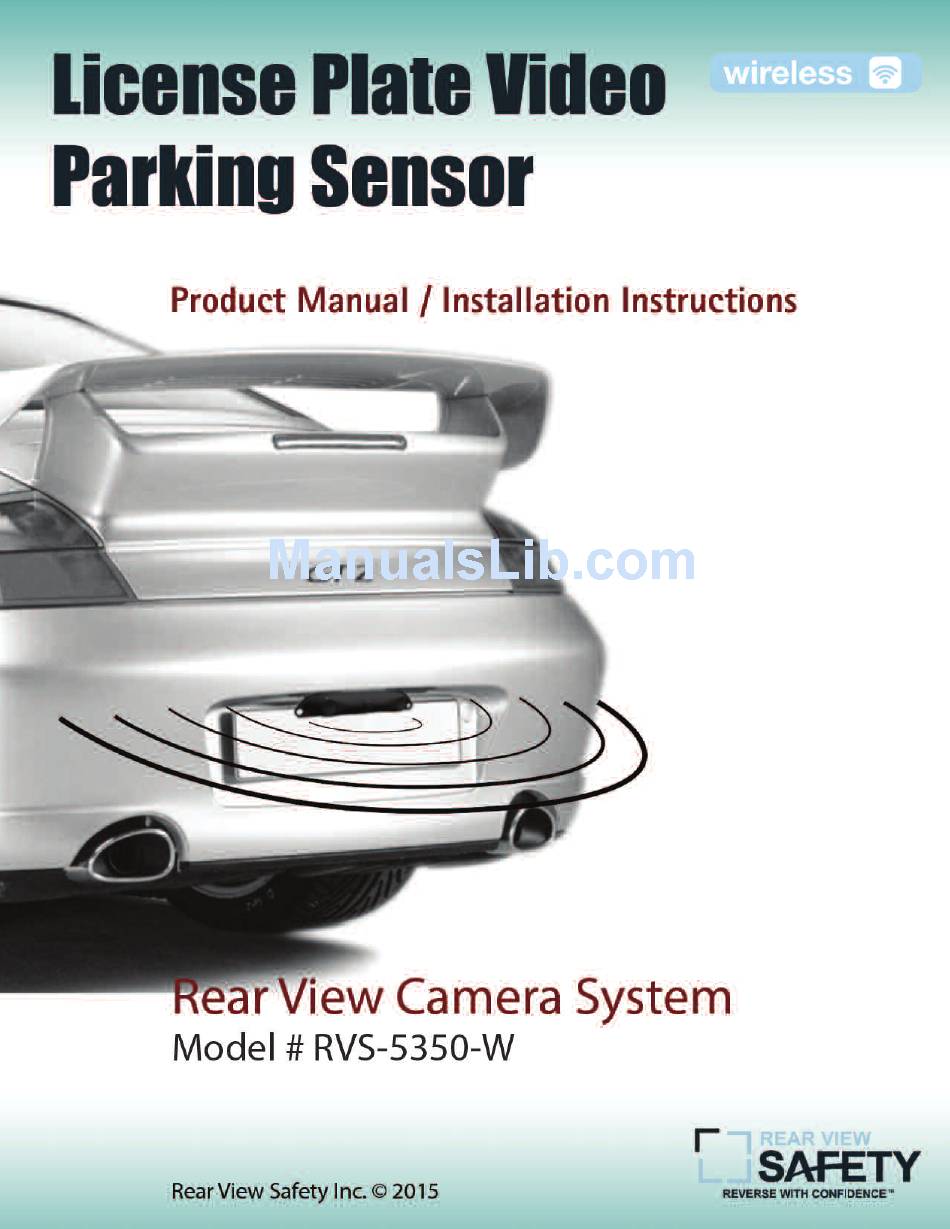

Summary of Contents for Rear view safety RVS-5350-W
-
Page 2: What's In The Box
4 pin Camera input with sensor speaker attached 5.3 Cable connection instruction Note: Before installing system let the components of the exhaust system cool down. This will make the installation safer and preclude heat damage to the backup sensor wiring or components. REAR VIEW SAFETY... -
Page 3: Installation Instructions
Installation Instructions Red to back light +12 Red to back light +12 Black to GND Black to GND Wireless receiver Wireless transmitter 5.4 Installation Instructions: Monitor: Camera: - Attach the monitor to the dash with the 3M - Use a screwdriver to remove the screws of the sticker. - Page 4 Wireless receiver Wireless transmitter 3. Align the host bracket screw groove and the 4. Plug the anti dismounting cap into the screw plate screw holes, Locking screw. hole. Connect the cable. 5.5 Display Installation Monitor Rearview mirror monitor REAR VIEW SAFETY...
-
Page 5: Testing The System
Installation Instructions Tools Needed Small flat-tip Screwdriver #2 Phillips Screwdriver Tape Measure Black Electrical Tape Masking Tape Multimeter Pliers Pencil/Marker Testing the system: After installing the system, test the sensors. Warning: Do not stand behind a moving vehicle death or injury could occur. Prior to testing, set the parking brake on, ignition key on (do not start), step foot on brake and shift the vehicle into reverse. -
Page 6: Specifications
-30°C ~ 85°C Store temperature Alarm MODE Awareness Distance Sound Digital Display Safe mode 130-150cm Bi...Bi... 1.3m-1.5m Alarm mode 90-130cm Bi..Bi.. 0.9m-1.3m Alarm mode 60-90cm Bi.Bi. 0.6m-0.9m Dange mode 40-60cm BiBi 0.4m-0.6m 0-40cm Dange mode Biiii 0.0m REAR VIEW SAFETY... - Page 7 Limitations Limitations The sensors may not work if an object does not reflect the ultrasonic waves or it has an unusual shape. This may apply to a pole, cardboard carton, bicycle tire, small or slender tree or a low curb. The sensor may not detect another vehicle bumper if it is too high.
-
Page 8: Troubleshooting
1. Is the connection of camera power cable and AV cable are right or not? 2. Is AV cable connected to AV2? Guarantee time:12 months. The guarantee will be effective with the stamp/signature of the dealer. Please keep the guarantee form well to ensure 12 months guarantee. REAR VIEW SAFETY... - Page 9 Rear View Safety, Inc. system after partial failure or use with improper accessories.
- Page 10 In no event shall Rear View Safety and/or its affiliates have any liability for any losses (whether direct...
- Page 11 Reverse With Confidence ™...
- Page 12 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 BETTER CAMERAS. BETTER SERVICE. IT’S OUR GUARANTEE.
