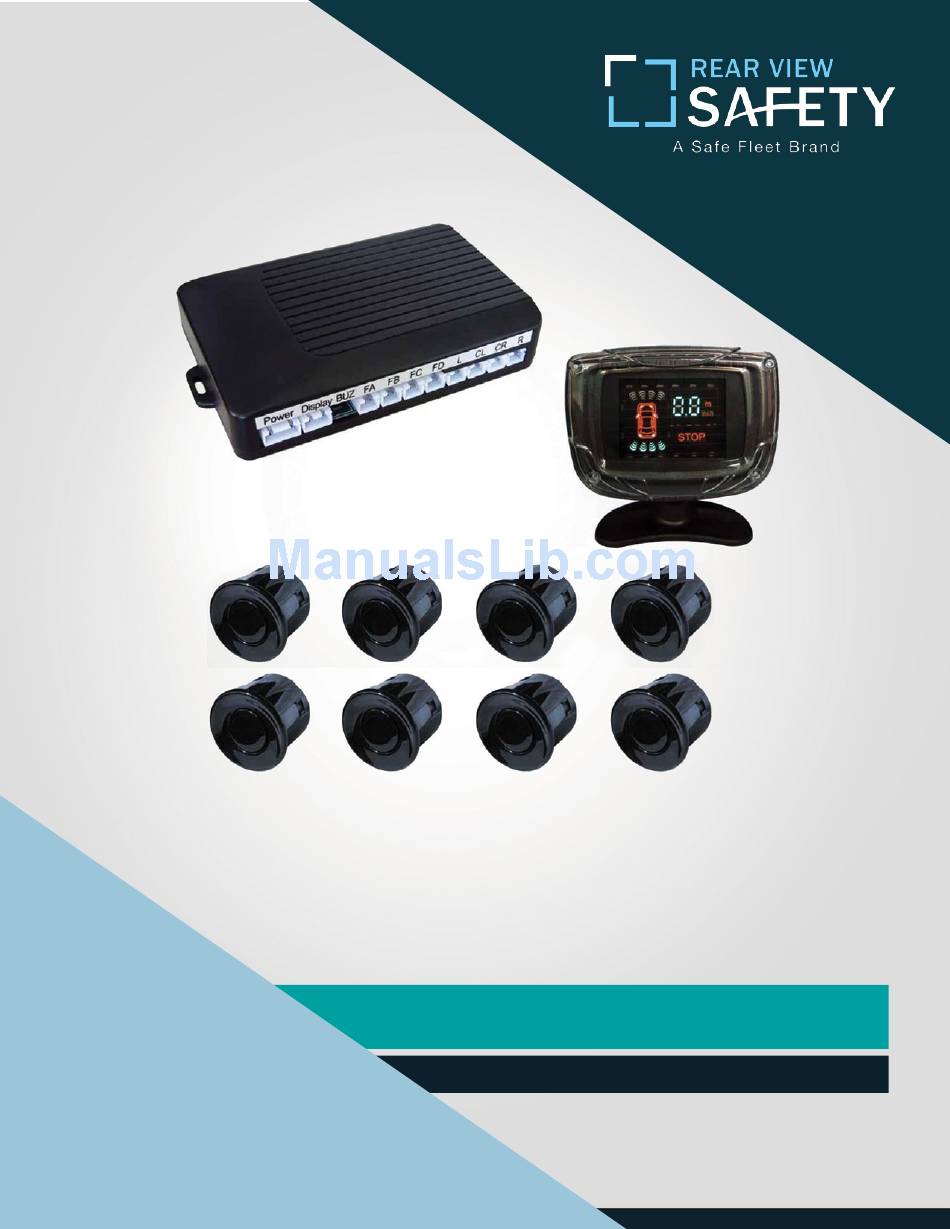

- Page 1 Instruction Manual Front and Rear Sensor System RVS-111 Rear View Safety, Inc. © 2016...
- Page 2 Notes ....... 9 10-11 Warranty & Disclaimer..... . Rear View Safety...
- Page 3 4 front sensors Thank you for purchasing The RVS-111 Front And Rear Sensor System. This product should only be used as an auxiliary warning device for backing up. Please read this manual carefully before installation and use. If you encounter any problems with the system please contact us.
- Page 4 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
- Page 5 Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly.
- Page 6 • VFD01w Sharp Color VFD display, 3 Color LED 8 Channel w/Built-in Buzzer & Digital Readout • Power Input: 9.6~15V DC Sensor Specification Voltage 9~15DCV Rated Voltage 12DCV Power Cost <0.5w Respond Cost 0.3~2.0m Sensor Diameter 22mm Sensor Angle X V 60º Alarm Volume 65DB Working Temp. -30ºC~+80ºC Rear View Safety...
- Page 7 lcd display NOTE: Two separate trigger wires allow you to activate the front sensors by braking, and the rear sensors by reversing. The front sensors have a one meter range. Reverse With Confidence ™...
- Page 8 2. Install the sensors as shown below on a flat surface. Note A. The system may have trouble with the driving situations below B. Keep the sensors and sensor wires clean C. Reverse slowly when using system Rear View Safety...
- Page 9 NOTES Reverse With Confidence ™...
-
Page 10: One Year Warranty
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES. - Page 11 FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN...
- Page 12 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE.
