model no. 052-0060-2
Read and understand this instruction manual thoroughly
before using the product. It contains important
information for your safety as well as operating and
maintenance advice.
Keep this instruction manual for future use. Should this
product be passed on to a third party, then this
instruction manual must be included.
POCKET
DIGITAL MULTIMETER
INSTRUCTION
MANUAL
Advertisement
Table of Contents
Related Manuals for MasterCraft 052-0060-2
Summary of Contents for MasterCraft 052-0060-2
-
Page 1: Digital Multimeter
052-0060-2 POCKET DIGITAL MULTIMETER Read and understand this instruction manual thoroughly before using the product. It contains important INSTRUCTION information for your safety as well as operating and maintenance advice. MANUAL Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included. -
Page 3: Safety Information
SAFETY INFORMATION This meter has been designed according to IEC 61010 concerning electronic measuring instruments with a measurement category (CAT III 300V) and pollution degree 2. WARNING To avoid possible electric shock or personal injury, follow these guidelines: Do not use the meter if it is damaged. Before you use the meter, ●... - Page 4 052-0060-2 | contact us 1-800-689-9928 When servicing the meter, use only specified replacement ● parts. Use caution when working with voltage above 30 V RMS, 42 V ● peak, or 60 V DC. Such voltages pose a shock hazard.
- Page 5 CAUTION To avoid possible damage to the meter or to the equipment under test, follow these guidelines: Disconnect circuit power and discharge all capacitors before ● testing resistance, diode, continuity and temperature. Use the proper terminals, function and range for your measure- ●...
-
Page 6: Electrical Symbols
The equipment is protected throughout by double insulation or reinforced insulation. INTRODUCTION 052-0060-2 multimeter is a compact 3 1/2-digit digital multimeter for measuring DC and AC voltage, DC current, resistance, continuity, diode, and battery. It is easy to operate and is an ideal measurement tool. -
Page 7: Front Panel

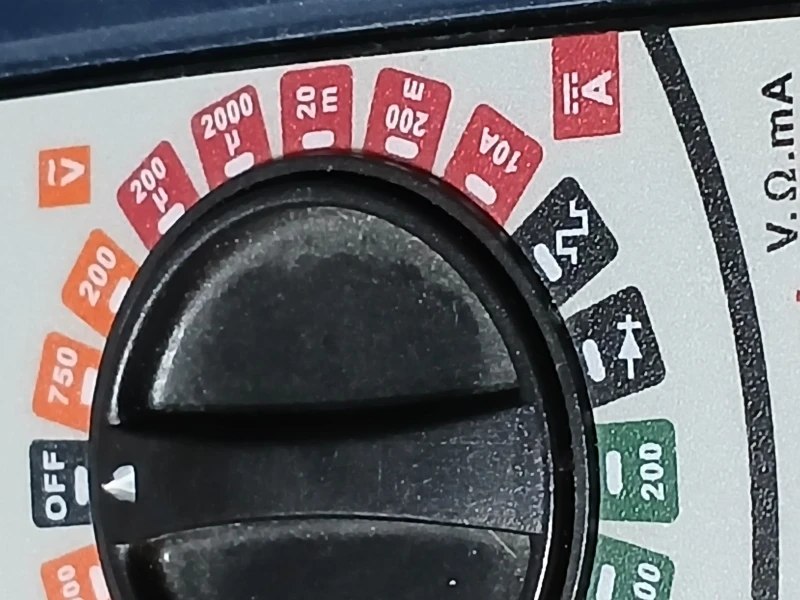

FRONT PANEL Display 3 1/2-digit LCD, with a max. reading of 1999. " " button Used to enter/exit Data Hold mode. - Page 8 052-0060-2 | contact us 1-800-689-9928 3. Function / Range Switch Used to select the desired function and range as well as to turn on or off the meter. To preserve battery life, set this switch to the "OFF" position when not using the meter.
-
Page 9: General Specifications
GENERAL SPECIFICATIONS Display: 3 1/2-digit LCD, with a max. reading of 1999 Negative Polarity Indication: Negative sign " - " shown on the display automatically Sampling Rate: About 2 to 3 times/sec Battery: 9 V battery, 6F22 or equivalent, 1 piece Low Battery Indication: "... - Page 10 052-0060-2 | contact us 1-800-689-9928 DC VOLTAGE OVERRANGE RANGE RESOLUTION ACCURACY INDICATION ±(0.5% + 5) 100 μV 200 mV 1 mV 2000 mV "1" shown on 10 mV 20 V display ±(0.8% + 5) 200 V 100 mV ±(1.0% + 5)
- Page 11 DC CURRENT OVERRANGE RANGE RESOLUTION ACCURACY INDICATION 2000 μ A 1 μA ±(1.0% + 5) "1" shown on 20 mA 10 μA display 100 μA ±(1.2% + 5) 200 mA 10 mA ±(2.0% + 5) 10 A Overload Protection: Fuse, 250 mA/300 V, Fast action Fuse, 10 A/300 V, Fast action Max.
-
Page 12: Diode And Continuity Test
052-0060-2 | contact us 1-800-689-9928 BATTERY RANGE DESCRIPTION TEST CURRENT 1.5 V about 20 mA The working voltage of the battery will be displayed on the LCD so that the about 5 mA quality of the battery can be judged. -
Page 13: Data Hold Mode
OPERATING INSTRUCTIONS Data Hold Mode Press the " " button to enter Data Hold mode, the present reading will be held on the display. To exit Data Hold mode, just press this button again. NOTE: If the display blanks or the reading on the display does not change after you turn on the meter, the cause may be that the "... -
Page 14: Measuring Ac Voltage
052-0060-2 | contact us 1-800-689-9928 NOTE: To avoid electric shock to you or damage to the meter, do not apply a voltage higher than 300 V between terminals. Measuring AC Voltage Connect the black test lead to the "COM" terminal and the red test lead to the "VΩmA"... -
Page 15: Measuring Resistance
Set the range switch to desired range position. Turn off power to the circuit you want to measure. Then discharge all capacitors of the circuit. Break the circuit path to be measured, and connect the test leads in series with the circuit. Turn on power to the circuit. -
Page 16: Continuity Test
052-0060-2 | contact us 1-800-689-9928 When the input is not connected, i.e. at open circuit, "1" will be displayed as an overrange indication. Before measuring in-circuit resistance, disconnect all power to the circuit to be tested and discharge all capacitors thoroughly. -
Page 17: Battery Test
Connect the red test lead to the anode of the diode to be tested and the black test lead to the cathode of the diode. The display will show the approximate forward voltage drop of the diode. If the connection is reversed, "1" will be shown on the display. -
Page 18: General Maintenance
052-0060-2 | contact us 1-800-689-9928 MAINTENANCE Warning Except replacing fuse and battery, never attempt to repair or service the meter. Store the meter in a dry place when not in use. Don't store it in an intense electromagnetic field environment. -
Page 19: Battery And Fuse Replacement
BATTERY AND FUSE REPLACEMENT When the symbol " " appears on the display, it means that the battery is low and must be replaced immediately. To replace battery, remove the screw on the battery cover and remove the battery cover. Replace the exhausted battery with a new one of the same type. -
Page 20: Warranty
The contents of this manual can not be used as the reason to use the meter for any special application. WARRANTY This Mastercraft product carries a one-year warranty against defects in workmanship and materials. This product is not guaranteed against wear, breakage or misuse. - Page 36 ●...
