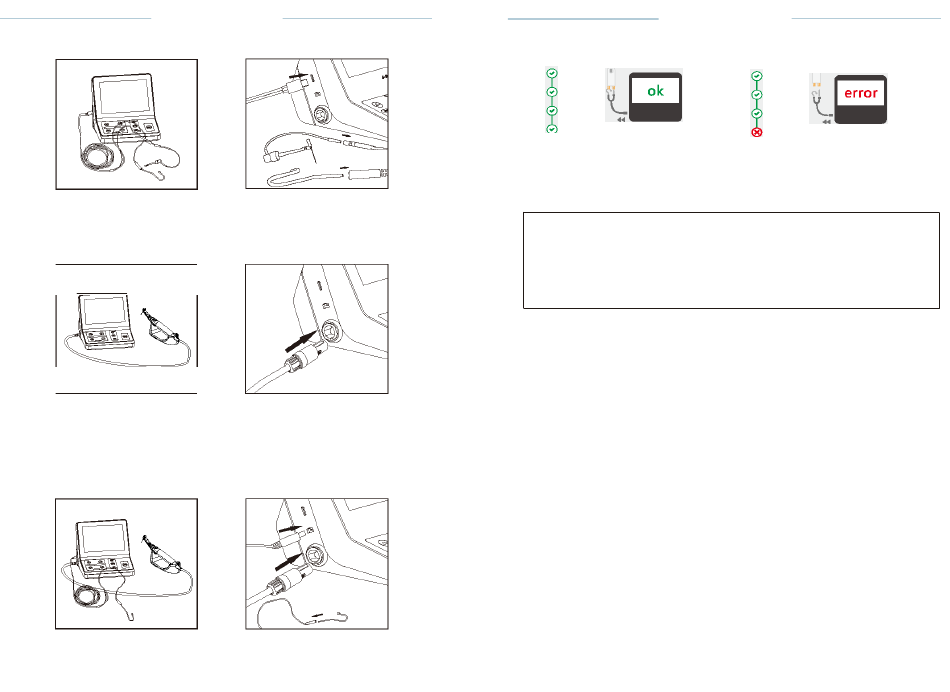

7.3.5 M1 mode connection (only apex locator function)

Fig.6
Connect the test wire with lip hook and the File clip to the Control unit, test
wire's plug must be fully inserted into the test wire socket.
7.3.6 M2mode connection (only motor function)
Fig.B
• Connect the motor cable to the Controlunit's motor handpiece socket.
• Connect the contra angle to motor handpiece.
•Install the lighting device.
•Insert the file.
7.3.7 M3 mode connection(Dual mode Motor&Apex locator)
Fig.10
Uaer Manual
Fig.7
Fig.9
Fig.11
C-SMART-1 Pro
Fig. 35 Accessories are OK
Lt.
CAUTION
ERROR message indicates that the accessories are not functioning properly
(wire breakage) or the contact area is dirty.
Please contact your local dealer or contact the factory directly for assistance
CHECK mode will exit automatically after 3s .
Uoer Manual
Fig.36 Accessories are ERROR
