10

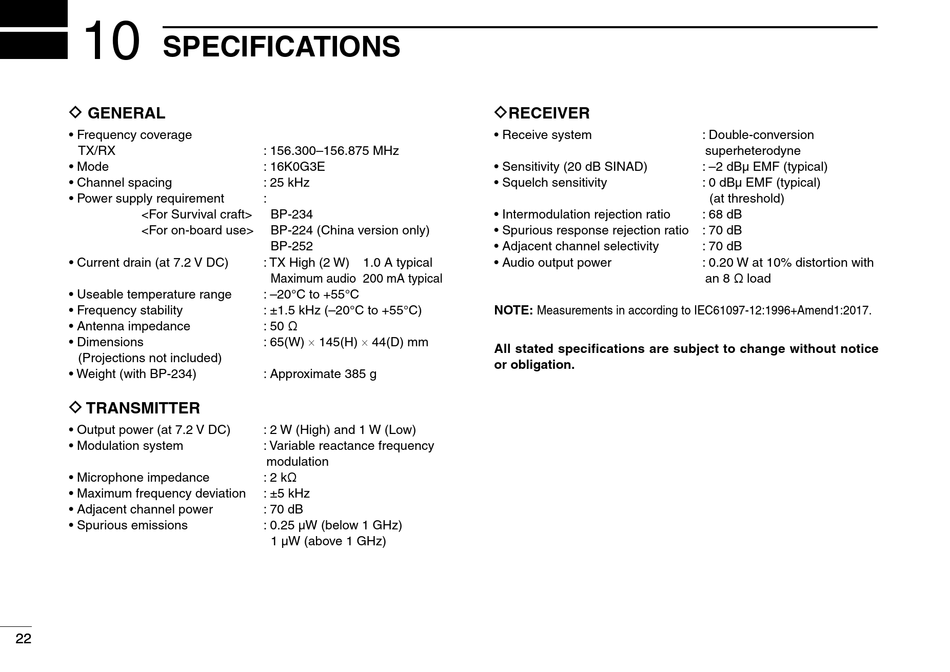

SPECIFICATIONS

D
GENERAL
• Frequency coverage
TX/RX
• Mode
• Channel spacing
• Power supply requirement
<For Survival craft>
<For on-board use>
• Current drain (at 7.2 V DC)
• Useable temperature range
• Frequency stability
• Antenna impedance
• Dimensions
(Projections not included)
• Weight (with BP-234)
D
TRANSMITTER
• Output power (at 7.2 V DC)
• Modulation system
• Microphone impedance
• Maximum frequency deviation
• Adjacent channel power
• Spurious emissions
22 22
: 156.300–156.875 MHz
: 16K0G3E
: 25 kHz
:
BP-234
BP-224 (China version only)
BP-252
: TX High (2 W) 1.0 A typical
Maximum audio 200 mA typical
: –20°C to +55°C
: ±1.5 kHz (–20°C to +55°C)
: 50 Ω
: 65(W) × 145(H) × 44(D) mm
: Approximate 385 g
: 2 W (High) and 1 W (Low)
: Variable reactance frequency
modulation
: 2 kΩ
: ±5 kHz
: 70 dB
: 0.25 µW (below 1 GHz)
1 µW (above 1 GHz)
D
RECEIVER
• Receive system
• Sensitivity (20 dB SINAD)
• Squelch sensitivity
• Intermodulation rejection ratio
• Spurious response rejection ratio : 70 dB
• Adjacent channel selectivity
• Audio output power
NOTE: Measurements in according to IEC61097-12:1996+Amend1:2017.
All stated specifications are subject to change without notice
or obligation�
: Double-conversion
superheterodyne
: –2 dBµ EMF (typical)
: 0 dBµ EMF (typical)
(at threshold)
: 68 dB
: 70 dB
: 0.20 W at 10% distortion with
an 8 Ω load
