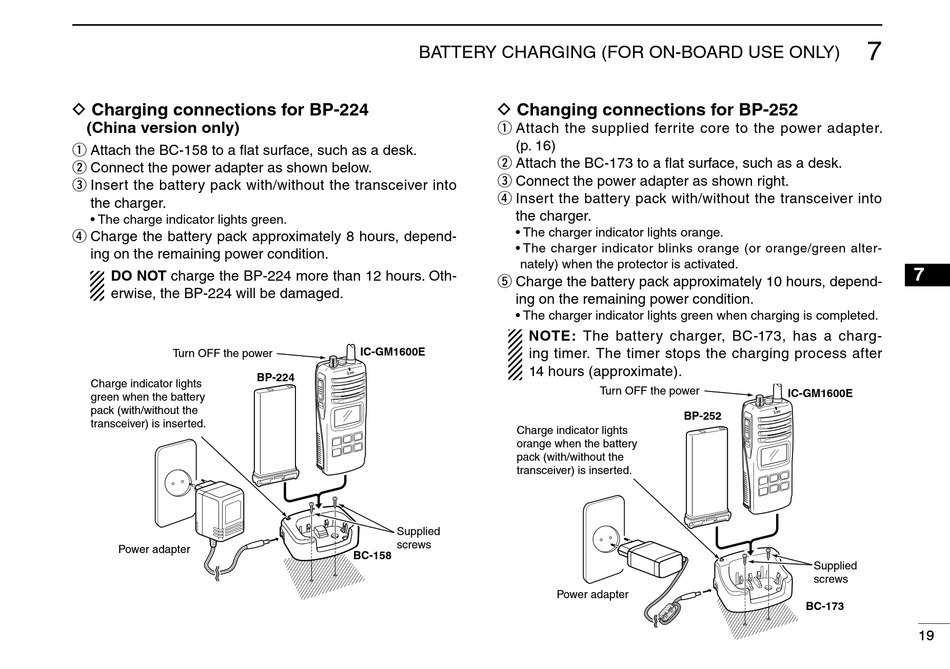

D Charging connections for BP-224
(China version only)
q Attach the BC-158 to a flat surface, such as a desk.
w Connect the power adapter as shown below.
e Insert the battery pack with/without the transceiver into
the charger.
• The charge indicator lights green.
r Charge the battery pack approximately 8 hours, depend-
ing on the remaining power condition.
DO NOT charge the BP-224 more than 12 hours. Oth-
erwise, the BP-224 will be damaged.
Turn OFF the power
Charge indicator lights
green when the battery
pack (with/without the
transceiver) is inserted.
Power adapter
BATTERY CHARGING (FOR ON-BOARD USE ONLY)
IC-GM1600E
BP-224
Supplied
screws
BC-158
D Changing connections for BP-252
q Attach the supplied ferrite core to the power adapter.
(p. 16)
w Attach the BC-173 to a flat surface, such as a desk.
e Connect the power adapter as shown right.
r Insert the battery pack with/without the transceiver into
the charger.
• The charger indicator lights orange.
• The charger indicator blinks orange (or orange/green alter-
nately) when the protector is activated.
t Charge the battery pack approximately 10 hours, depend-
ing on the remaining power condition.
• The charger indicator lights green when charging is completed.
NOTE: The battery charger, BC-173, has a charg-
ing timer. The timer stops the charging process after
14 hours (approximate).
Turn OFF the power
Charge indicator lights
orange when the battery
pack (with/without the
transceiver) is inserted.
Power adapter
IC-GM1600E
BP-252
Supplied
screws
BC-173
