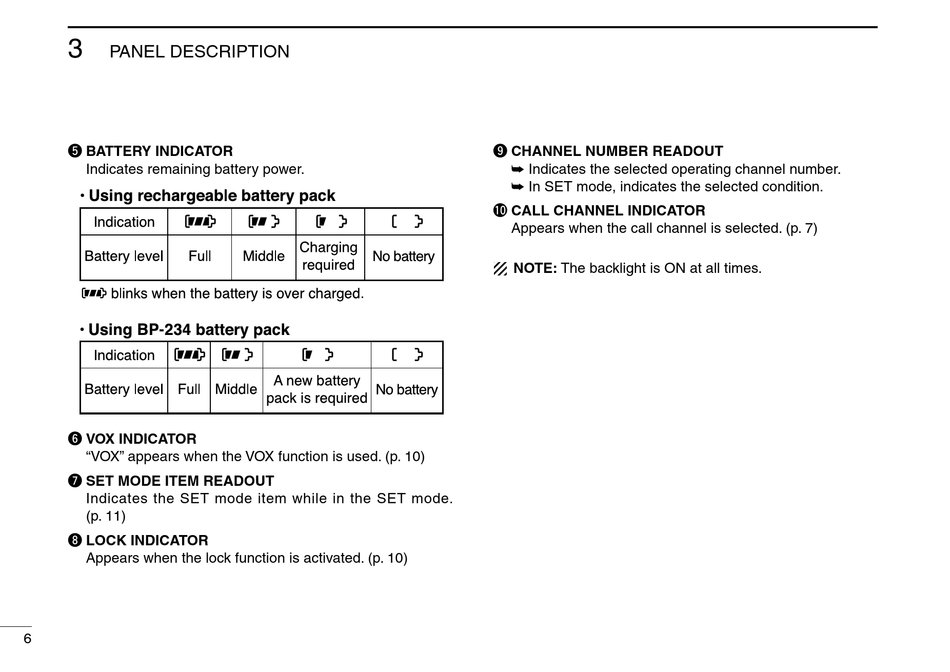

PANEL DESCRIPTION

t BATTERY INDICATOR
Indicates remaining battery power.
y VOX INDICATOR
"VOX" appears when the VOX function is used. (p. 10)
u SET MODE ITEM READOUT
Indicates the SET mode item while in the SET mode.
(p. 11)
i LOCK INDICATOR
Appears when the lock function is activated. (p. 10)
6
o CHANNEL NUMBER READOUT
➥ Indicates the selected operating channel number.
➥ In SET mode, indicates the selected condition.
!0 CALL CHANNEL INDICATOR
Appears when the call channel is selected. (p. 7)
NOTE: The backlight is ON at all times.
