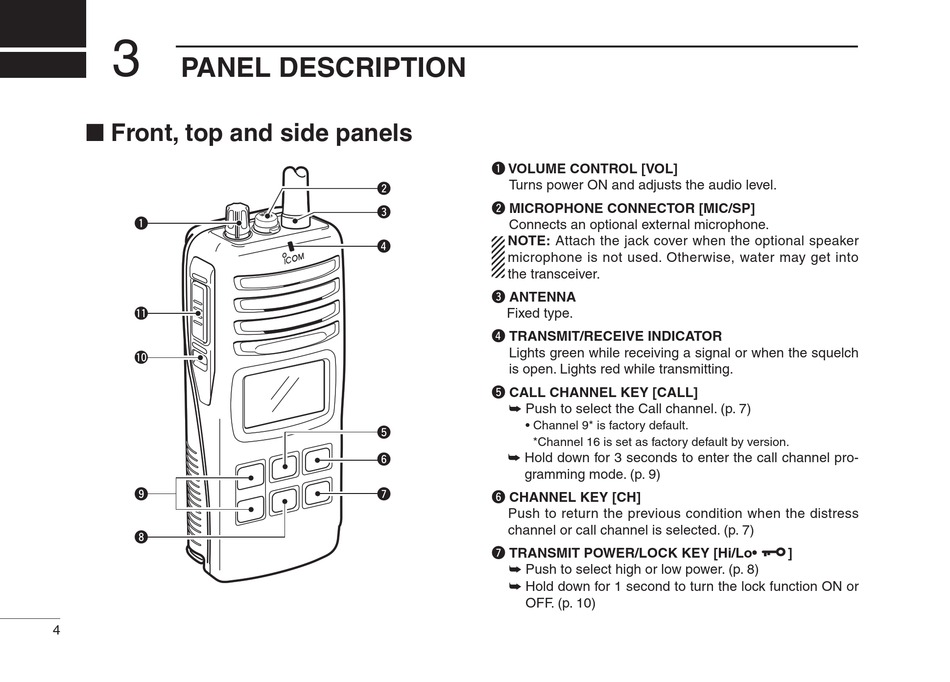

PANEL DESCRIPTION

■ Front, top and side panels

q
!1
!0
o
i
4
q VOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
w
w MICROPHONE CONNECTOR [MIC/SP]
e
Connects an optional external microphone.
NOTE: Attach the jack cover when the optional speaker
r
microphone is not used. Otherwise, water may get into
the transceiver.
e ANTENNA
Fixed type.
r TRANSMIT/RECEIVE INDICATOR
Lights green while receiving a signal or when the squelch
is open. Lights red while transmitting.
t CALL CHANNEL KEY [CALL]
➥  P ush to select the Call channel. (p. 7)
• Channel 9* is factory default.
t
*Channel 16 is set as factory default by version.
➥ Hold down for 3 seconds to enter the call channel pro-
y
gramming mode. (p. 9)
u
y CHANNEL KEY [CH]
Push to return the previous condition when the distress
channel or call channel is selected. (p. 7)
u TRANSMIT POWER/LOCK KEY [Hi/Lo•
➥ Push to select high or low power. (p. 8)
➥ Hold down for 1 second to turn the lock function ON or
OFF. (p. 10)
]
