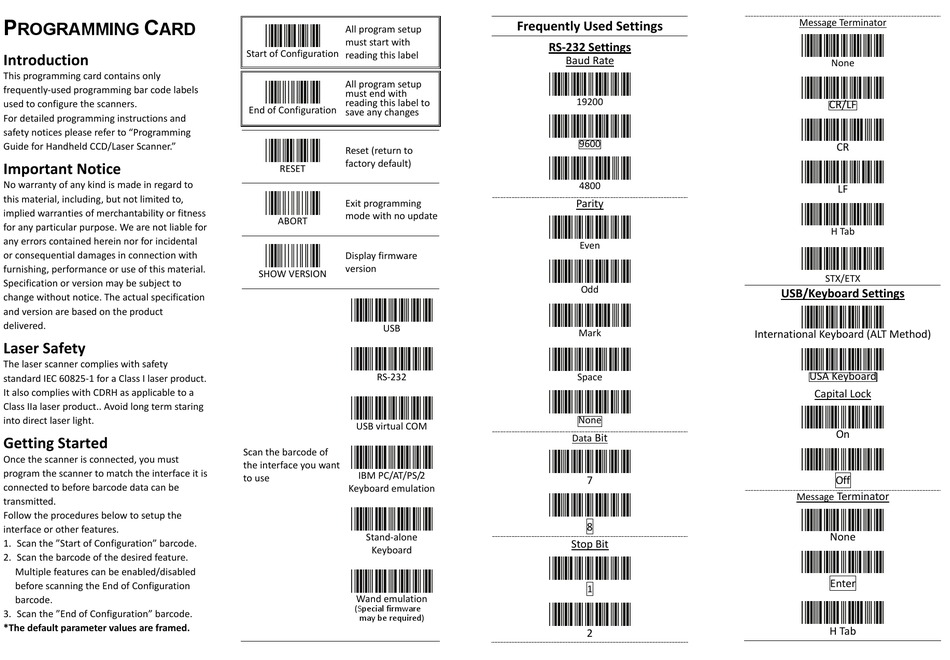

Introduction
This programming card contains only
frequently-used programming bar code labels
used to configure the scanners.
For detailed programming instructions and
safety notices please refer to "Programming
Guide for Handheld CCD/Laser Scanner."
Important Notice
No warranty of any kind is made in regard to
this material, including, but not limited to,
implied warranties of merchantability or fitness
for any particular purpose. We are not liable for
any errors contained herein nor for incidental
or consequential damages in connection with
furnishing, performance or use of this material.
Specification or version may be subject to
change without notice. The actual specification
and version are based on the product
delivered.

Laser Safety

The laser scanner complies with safety
standard IEC 60825-1 for a Class I laser product.
It also complies with CDRH as applicable to a
Class IIa laser product.. Avoid long term staring
into direct laser light.
Getting Started
Once the scanner is connected, you must
program the scanner to match the interface it is
connected to before barcode data can be
transmitted.
Follow the procedures below to setup the
interface or other features.
1. Scan the "Start of Configuration" barcode.
2. Scan the barcode of the desired feature.
Multiple features can be enabled/disabled
before scanning the End of Configuration
barcode.
3. Scan the "End of Configuration" barcode.
*The default parameter values are framed.
All program setup
must start with
Start of Configuration
reading this label
All program setup
must end with
reading this label to
End of Configuration
save any changes
Reset (return to
factory default)
RESET
Exit programming
mode with no update
ABORT
Display firmware
version
SHOW VERSION
USB
RS-232
USB virtual COM
Scan the barcode of
the interface you want
IBM PC/AT/PS/2
to use
Keyboard emulation
Stand-alone
Keybo ard
W and emula tion
(Special fi rmware
may be re quired)
Frequently Used Settings
RS-232 Settings
Baud Rate
19200
9600
4 800
Parit y
Even
Odd
Mark
Space
None
Bit
Data
7
8
St op Bi t
1
2
Messa ge Termina tor
None
CR/L F
CR
LF
H Tab
STX/ETX
USB/Keybo ard S ti gs et n
International Keyboard (AL Method) T
USA Keyboa rd
Capital Lock
On
Off
Terminator
Message
None
En er t
H Tab
