Zebex Z-3191LE Quick Reference Manual

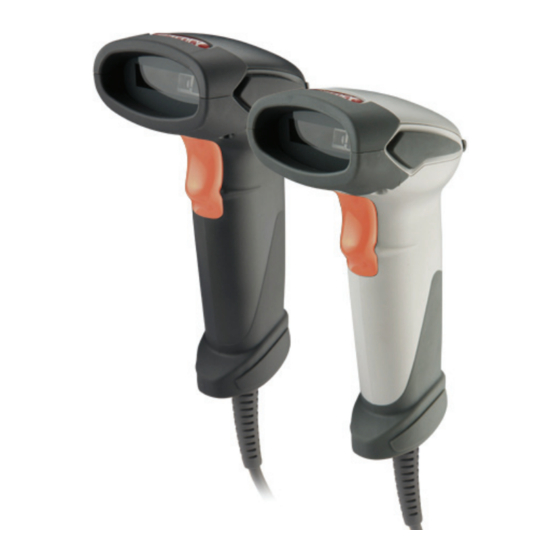

Product Overview

This scanner is a gun type rugged barcode
CCD/Laser scanner with a state of the art scan
engine. Featuring a superb scanning speed and
able to withstand 1.5 meter drop, it is ideal for
manufacturing and logistic sectors.
Logo Plate
Exit Window
LED Indicator
Buzzer
Trigger
Strap Hole
Cable Connector

Package Contents

The package includes the following items:
Gun type CCD/Laser
scanner
Communication
cable
(Model depends on
customer needs)
Quick Reference
Guide
5V Power adapter
(Only for specific
RS-232 cables as
optional accessory.
Model depends on
electrical
requirements of your
geographic location)
Installation
1. Connect the interface cable to the
scanner.
2. Connect the cable to the terminal's
communication port.
3. Connect the power cord to the cable
connector if required.
4. To verify operation, point the scanner at
a barcode and pull the trigger. You
should hear a single beep indicating that
the label has been scanner successfully.
Removing Cable
1. Locate the small hole at the bottom of
the scanner.
2. Use a metallic pin and insert into the
hole.
3. Gently pull the strain-relief of the cable
once a faint "click" is heard.
LED Indication
LED Status Indication
One blue A barcode has been
flash successfully decoded
Steady red
The scanner is in
(optional for
programming mode
specific models
only)
Beep Indication
Beep Indication
A barcode has been
One beep
successfully decoded
Four The scanner has passed
consequent the self-test and is
beeps operating properly
Two This indicates that the
consequent scanner is in
beeps programming mode
This is a failure
Continuous
indication. Return the
beep tone
unit for repair

Scanning Barcodes

1. Ensure all connections are secure.
2. Press the trigger and aim at the barcode
as illustrated.
3. When decoding is successful, the
scanner beeps and the LED indicates
blue.
Correct and incorrect aiming are shown below.
