INSTALLATION INSTRUCTION
GENERAL
This instruction covers the installation of the following variable
speed blower sections.
N1VSD10A06
N1VSD14A06
N2VSD20A06
The blower section is the basic component of an indoor modular
system which may be combined with various accessories listed
below to make an evaporator blower, evaporator blower with
electric heat, heat pump blower, and heat pump blower with
electric heat.
Because of the many ways this Air Handler may be applied and
the large variety of available accessories, the indoor portion of the
cooling or heat pump system comes to you in modules. These
modules must be field assembled to meet the specific needs of
the owner.
If this variable speed air handler is installed with a two stage
(H*DS) outdoor condensing unit, a thermal expansion valve kit
must be installed on the indoor side.
Check modules (accessories, etc.) received, against plans to be
sure all required modules are available for assembly.
INSPECTION
As soon as a unit is received, it should be inspected for possible
damage during transit. If damage is evident, the extent of the
damage should be noted on the carrier's freight bill. A separate
request for inspection by the carrier's agent should be made in
writing. See Form 50.15-NM for more information.
REFERENCE
This instruction should be used in conjunction with installation
instructions supplied with each accessory as well as the matching
outdoor section.
Installer should pay particular attention to the words: NOTE,
CAUTION and WARNING.
NOTES are intended to clarify or make the installation easier.
®
FOR USE WITH SPLIT SYSTEM COOLING AND HEAT PUMP
Supersedes: 535.03-N1Y (1293)
N*VS BLOWER SECTIONS
THIS PRO DUCT M UST BE INSTALLED IN STRICT COMPLIANCE W ITH
THE ENCLOSED INSTALLATION INSTRUCTIONS AND ANY APPLICABLE
LOCAL, STATE, AND NATIONAL CODES INCLUDING, BUT NOT LIMITED
TO, BUILDING, ELECTRICAL, AND MECHANICAL CODES.
INCORRECT INSTALLATION MAY CREATE A CONDITION WHERE THE
OPERATION OF THE PRODUCT COULD CAUSE PERSONAL INJURY
O R P R O P E R T Y D A M A G E .
VARIABLE SPEED AIR HANDLERS
CAUTIONS are given to prevent equipment damage.
WARNINGS are given to alert the installer that personal injury
and/or equipment damage may result if installation procedures
are not handled properly.

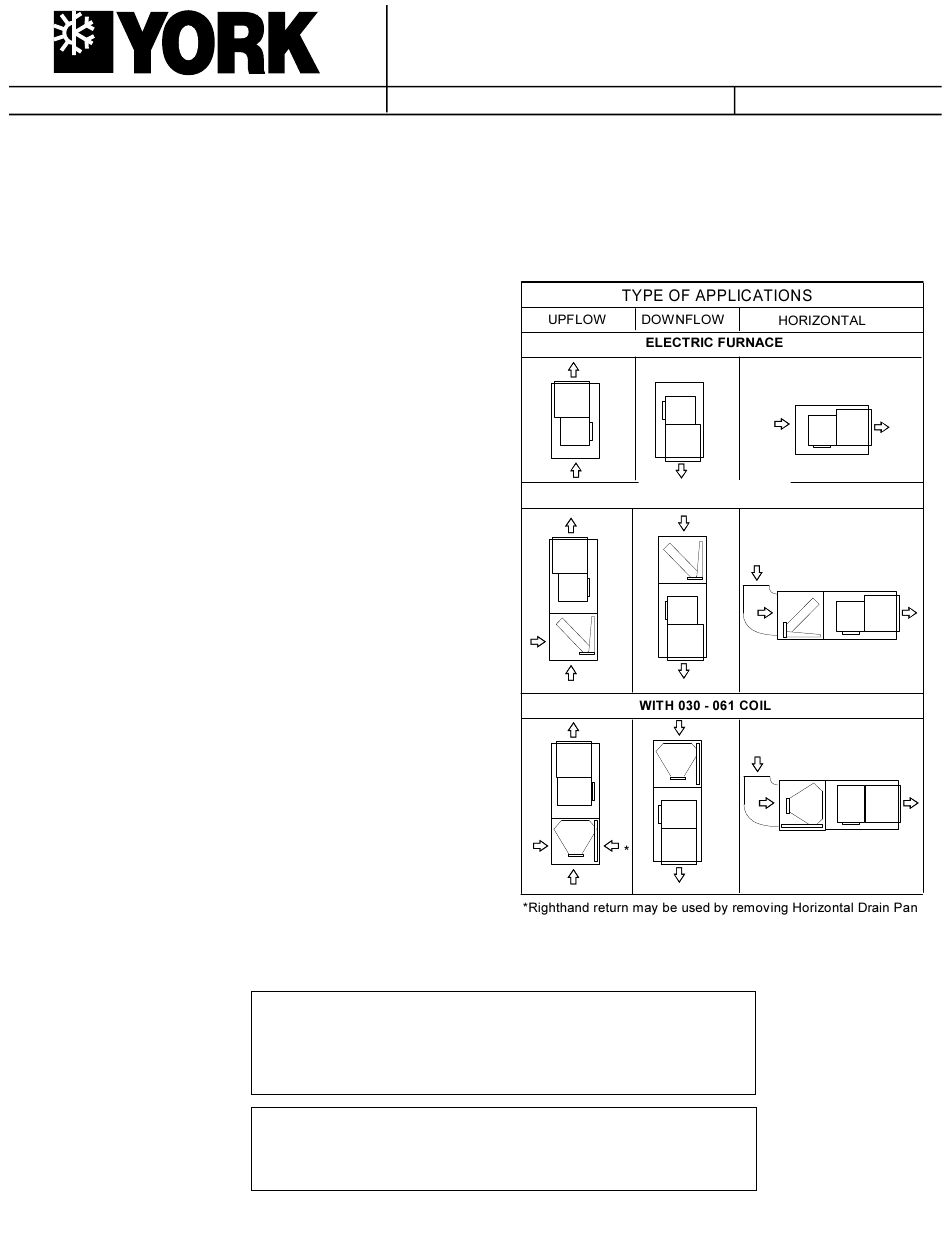

FIGURE 1 - Typical Component Application
CAUTION
WARNING
535.03-N1Y (594)
WITH 024 COIL
035-10809
Advertisement
Table of Contents
Related Manuals for York N1VSD10A06
Summary of Contents for York N1VSD10A06
- Page 1 WARNINGS are given to alert the installer that personal injury speed blower sections. and/or equipment damage may result if installation procedures are not handled properly. N1VSD10A06 N1VSD14A06 N2VSD20A06 The blower section is the basic component of an indoor modular system which may be combined with various accessories listed...
- Page 2 535.03-N1Y 3. Precautions should be taken to locate the unit and ductwork LIMITATIONS so that supply air does not short circuit to the return air. These units must be wired and installed in accordance with all national and local safety codes. 4.
-
Page 3: Duct Connections
535.03-N1Y air duct and plenum. This clearance must be maintained liquid line connection and distributor. The orifice is identified on a up to 3 feet a long the supply air duct. See Figure 2. label next to the liquid connection. When a discharge plenum forms part of the duct work, it too must The orifice that is shipped with the coil is based on the “most sold”... - Page 4 535.03-N1Y NOTES: Power wiring may be brought into the unit through one of the knockouts in either the top or the right side panel. Multiple knockouts are provided to accommodate all of the electric heat and transformer accessories that are available. Use the knockouts that provide the best wire routing for the accessory being used.
-
Page 5: Electrical Connections
535.03-N1Y be terminated at the transformer or electric heater box. Refer to ELECTRICAL CONNECTIONS Tables 2 and 5 for single source wire sizes. Also see Figure 5. Wire Transformer Kit or Electric Heater per wiring diagram on the accessory. Typical field wiring is shown in Figures 9, 10 and 11. ALTERNATE LINE POWER CONNECTIONS CAUTION: Break off tab must be removed from 2HW electric When desired or required by local conditions the units equipped... -
Page 6: Low Voltage Control Connections
535.03-N1Y Field supplied low voltage wiring must be kept as short as possi- ble and away from the blower motor wires. Refer to Table 2, 3 or FAN MOTOR SPEED TAP RECEPTACLE 208/230V 5 for minimum wire size. ON TRANSFORMER OR HEATER ACCESSORY The 24 volt power supply is provided by an internally wired low VARIABLE PURPLE... -
Page 7: Maintenance
535.03-N1Y heat pump CFM selections. Find the recommended system air- Refer to Table below for the type of system installed. set the flow in the table for the installed Air Handler model. “DELAY” jumper tap position horizontally on the connector board for the appropriate setting. - Page 8 535.03-N1Y TABLE 1 - CFM / TAP SELECTION MODEL HI SPEED COOLING AND HEAT PUMP CFM SELECTION “COOL” Tap Jumper at “A” Jumper at “B” Jumper at “C” No Jumper “ADJ” Tap Cubic Foot Per Minute (CFM) Jumper at “B” 1000 No Jumper 1050...
- Page 9 535.03-N1Y TABLE 4 - ELECTRICAL DATA / HEATER ACCESSORY Total Heat KW Staging Heater Min. CFM Blower Accessory Cooling or Size Model No. Heat Pump 208/240 208/240 208/240 208/240 208/230-1-60 HEATERS 2HW06500506 3.8/5.0 13.0/17.1 3.8/5.0 2HW06500806 5.0/7.5 19.1/25.6 3.8/5.0 1.8/2.5 2HW06501006 1000 7.5/10.0...
- Page 10 535.03-N1Y CONNECTOR BOARD O U T D O O R U N I T CONNECTOR T H E R M O S T A T BOARD THERMOSTAT OUTDOOR UNIT X or L B or C NOT USED N O T N O T U S E D DEHUMIDIFICATION CONTROL CONNECTION...
-
Page 11: Cooling With Electric Heat
535.03-N1Y INDOOR UNIT CONNECTOR BOARD O U T D O O R THERMOSTAT U N I T DEHUMIDIFICATION CONTROL CONNECTION W / W 1 FIELD ( " HU M ID I S T A T " J U MP E R M U ST B E RE M OV E D) INSTALLED JUMPER COOLING WITH ELECTRIC HEAT... - Page 12 HEAT PUMP MODELS E*FH FIGURE 11 - Control Wiring with Electric Heat - HEAT PUMP P.O. Box 1592, York, Pennsylvania USA 17405-1592 Subject to change without notice. Printed in U.S.A Copyright © by York International Corporation 1993. All Rights Reserved. Supersedes: 535.03-N1Y...
