Section 7 — Wiring Diagrams & Electrical Schematics

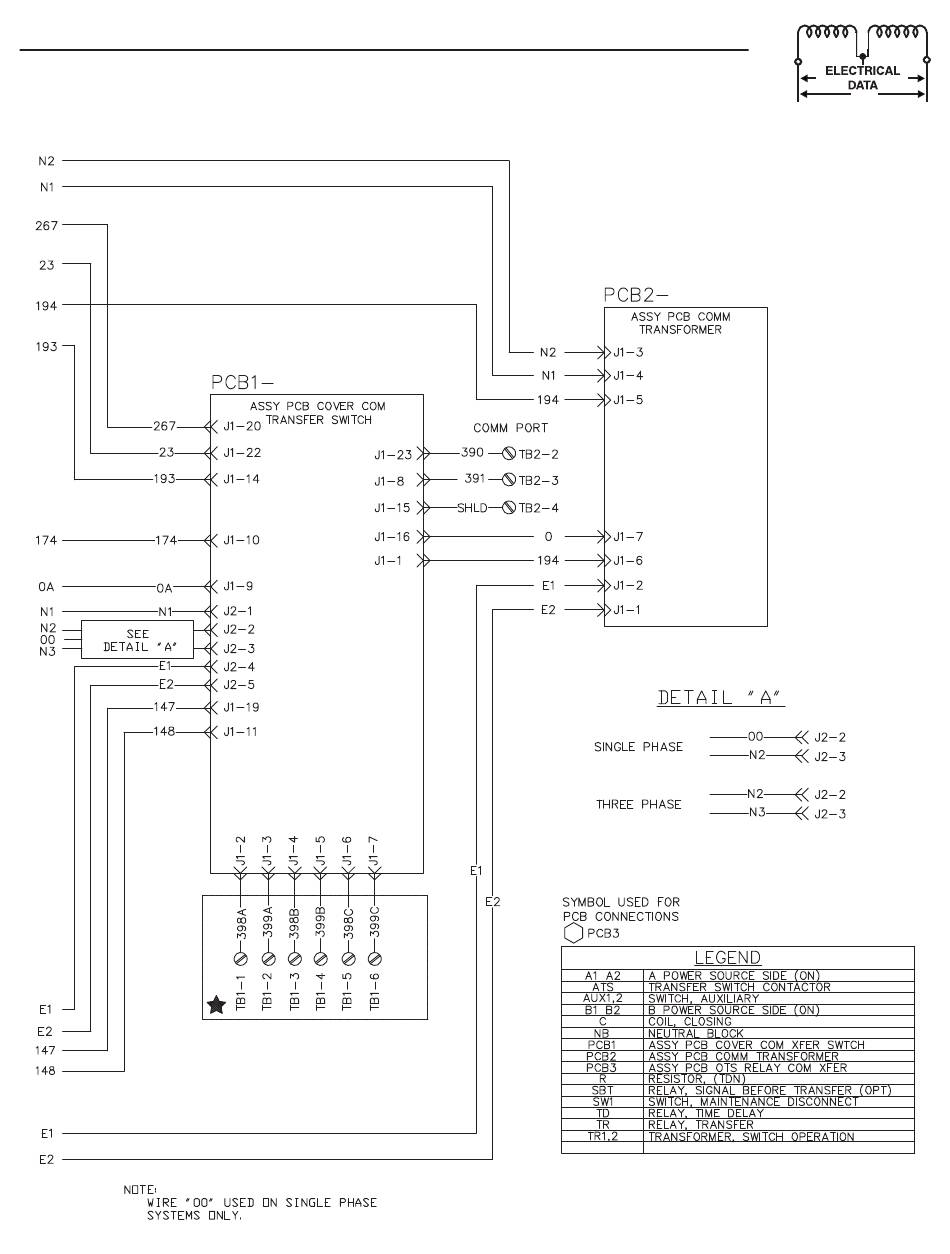

Electrical Schematic - 208/240V — Drawing No. 0F7042-B
