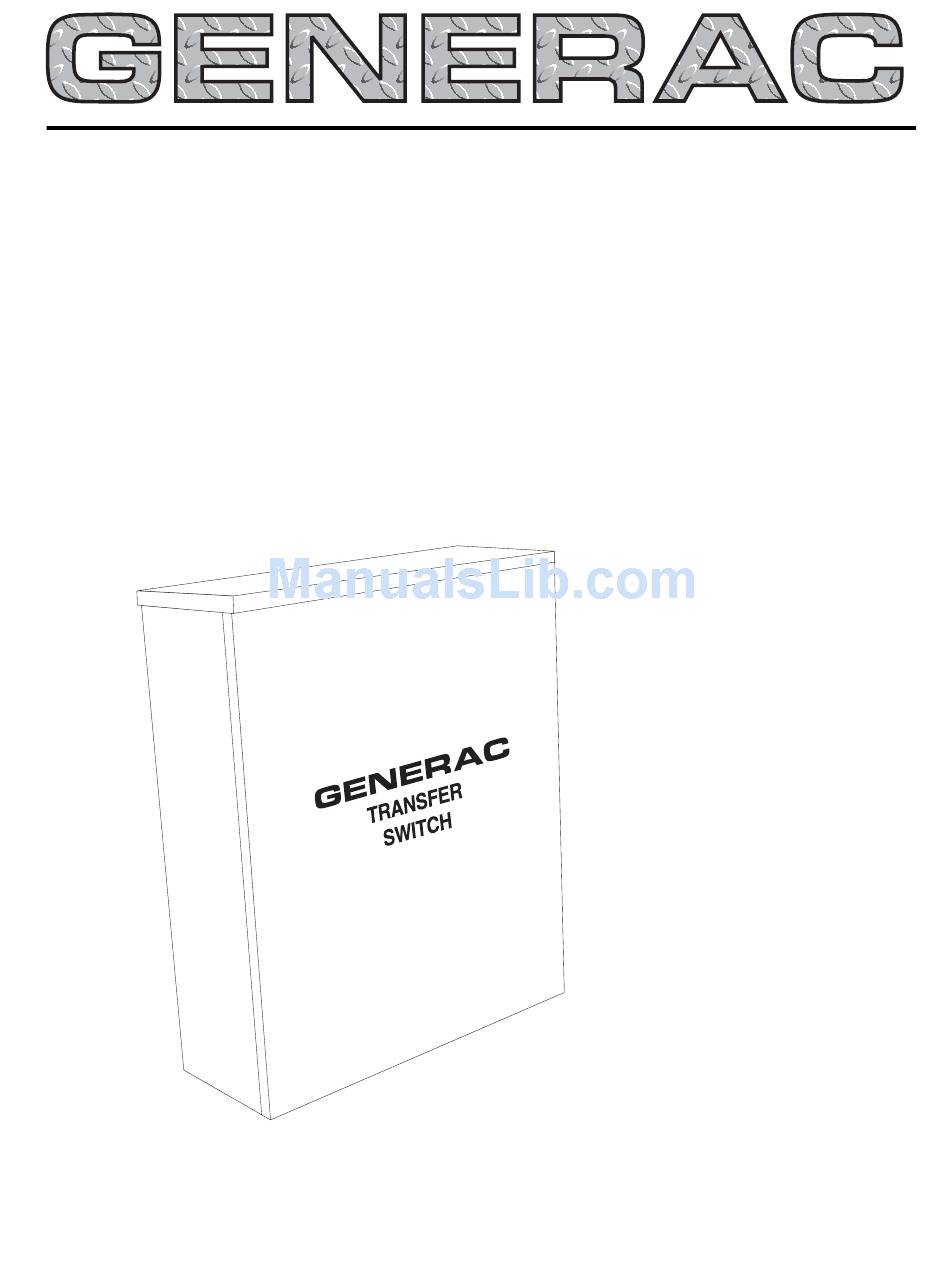

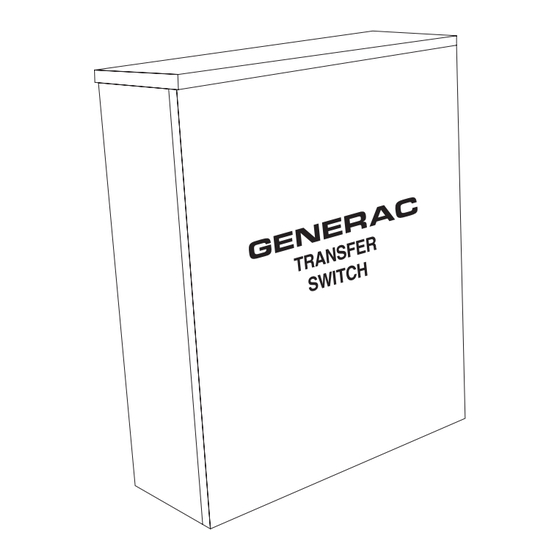

- Page 1 ® POWER SYSTEMS, INC. Owner’s Manual GTS “W” Type Automatic Transfer Switch 200 Amp, 250 Volts Model Nos. 004635-1 004635-2 This manual should remain with the unit.
-
Page 2: General Hazards
Also read the instructions and information on tags, decals, and labels that may be affixed to the transfer switch. Replace any decal or label that is no longer legible. DANGER! Connection of a generator to an electrical system normally supplied by an electric... -
Page 3: Table Of Contents
• Never work on this equipment while physically or mentally fatigued. • Keep the transfer switch enclosure door closed and bolted at all times. Only qualified personnel should be permitted access to the switch interior. • In case of an accident caused by electric shock, immediately shut down the source of electrical power. -
Page 4: Safety Rules
Generac recommends a copy of the SAFETY RULES are made and posted near the transfer switch. Also, be sure to read all instructions and information found on tags, labels and decals affixed to the equip- ment. -
Page 5: Section 2 - Installation
Never install a transfer switch that has been damaged. Install the transfer switch as close as possible to the electrical loads that are to be connected to it. Mount the switch vertically to a rigid supporting structure. -
Page 6: Connecting Start Circuit Wires
After tightening terminal lugs, carefully wipe away any excess corrosion inhibitor. All power cables should enter the switch next to the transfer mechanism terminals. Use a torque wrench to tighten the conduc- tors, being sure not to overtighten, or dam- age to the switch base could occur. -
Page 7: Section 3 - Operation
Step 1: With the handle attached to the actuating shaft, move handle in the direction of the arrow on the switch cover until it stops — DO NOT FORCE. Release handle slowly to allow the spring in the switch box to relax. “ON”... - Page 8 Section 3 — Operation Generac GTS “W” Type Transfer Switch 3. When certain that UTILITY supply voltage is cor- rect and compatible with transfer switch ratings, turn OFF the UTILITY supply to the transfer switch. 4. On the generator panel, set the AUTO-OFF- MANUAL switch to MANUAL position.
-
Page 9: Generator Tests Under Load
8. Set the generator’s main circuit breaker (CB1) to its OFF or OPEN position. 9. Set the Auto/Off/Manual switch to the OFF posi- tion to shut down the generator. NOTE: Do NOT proceed until generator AC output voltage and frequency are correct and within stated limits. -
Page 10: Section 4 - Mounting Dimensions Generac Gts "W" Type Transfer Switch Mounting Dimensions - Drawing No. 0D3714-B
Section 4 — Mounting Dimensions Generac GTS “W” Type Transfer Switch Mounting Dimensions – Drawing No. 0D3714-B Generac ® Power Systems, Inc. -
Page 11: Section 5 - Electrical Data
Section 5 — Electrical Data Generac GTS “W” Type Transfer Switch Interconnection Diagram - Drawing No. 074106-B LOAD LOAD UTILITY UTILITY Generac ® Power Systems, Inc. -
Page 12: Section 5 - Electrical Data Generac Gts "W" Type Transfer Switch 200 Amp, 2-Pole Switch - Drawing No. 0D3819-A
Section 5 — Electrical Data Generac GTS “W” Type Transfer Switch 200 Amp, 2-pole Switch – Drawing No. 0D3819-A WHITE LEGEND C - CONTACTOR ACTUATING COIL GTS - TRANSFER SWITCH CONTACTOR TR - RELAY, TRANSFER TS - TERMINAL STRIP (CUSTOMER CONNECTION) - Page 13 200 Amp, 2-pole Switch – Drawing No. 0D3819-A Section 5 — Electrical Data Generac GTS “W” Type Transfer Switch Generac ® Power Systems, Inc. 11...
- Page 14 Section 5 — Electrical Data Generac GTS “W” Type Transfer Switch 200 Amp, 3-pole Switch – Drawing No. 0D3818-A WHITE LEGEND C - CONTACTOR ACTUATING COIL GTS - TRANSFER SWITCH CONTACTOR PM - POWER MONITOR, 3 PHASE UTILITY TR - RELAY, TRANSFER...
- Page 15 Section 5 — Electrical Data Generac GTS “W” Type Transfer Switch 200 Amp, 3-pole Switch – Drawing No. 0D3818-A Generac ® Power Systems, Inc. 13...
-
Page 16: Section 6 - Exploded Views And Parts List Generac Gts "W" Type Transfer Switch 200 A, 2Pole Switch Assembly - Drawing No. 0E2868$-D
Section 6 — Exploded Views and Parts List Generac GTS “W” Type Transfer Switch 200 A, 2Pole Switch Assembly – Drawing No. 0E2868$-D 0A9949-S 14 Generac ® Power Systems, Inc. 0A9949-T 0A9949 0A9949-T 0A9949 0C7907H-S 0C7907H-S 0C7907H-S 0A9949-S 0 0... - Page 17 ** INSTALL ACROSS E & N TERMINALS ***INSTALL ON FRONT OF THE COVER (ITEM #20) Section 6 — Exploded Views and Parts List Generac GTS “W” Type Transfer Switch 200 A, 2Pole Switch Assembly – Drawing No. 0E2868$-D QTY. DESCRIPTION XFER SW-W 200A600V2P LUG SLDLSS 400-#4X1/4-20 CU7AL SCREW FHM M8-1.25 X 20MM CR...
- Page 18 Section 6 — Exploded Views and Parts List Generac GTS “W” Type Transfer Switch 200 A, 3-pole Switch Assembly – Drawing No. 0E4312$-F 0A9949-S 16 Generac ® Power Systems, Inc. C7907D C7907D-S A9949-S A9949 0A9949-S 0A9949...
- Page 19 ** INSTALL ACROSS E & N TERMINALS ***INSTALL ON FRONT OF THE COVER (ITEM #20) Section 6 — Exploded Views and Parts List Generac GTS “W” Type Transfer Switch 200 A, 3-pole Switch Assembly – Drawing No. 0E4312$-F QTY. DESCRIPTION XFER SW-W 200A600V3P LUG SLDLSS 400-#4X1/4-20 CU7AL SCREW FHM M8-1.25 X 20MM CR...
-
Page 20: Section 7 - Warranty Generac Gts "W" Type Transfer Switch
NOTE: ALL UNITS MUST HAVE A START-UP INSPECTION PERFORMED BY AN AUTHORIZED GENERAC DEALER. For a period of two (2) years or two thousand (2,000) hours of operation from the date of sale, which ever occurs first, Generac Power Systems, Inc. will, at its option, repair or replace any part(s) which, upon examination, inspection, and testing by Generac Power Systems or an Authorized/Certified Generac Power Systems Dealer, or branch thereof, is found to be defective under normal use and service, in accordance with the warranty schedule set forth below.
