Kemppi X8 MIG Operating Manual page 42

X8 MIG WELDER
Wire feed rolls, plastic
Wire feed rolls, metal
Filler wire
material
Fe, Ss (Al, Mc,
Fc)
Fc, Mc (Fe)
Al (Fc, Mc, Ss,
Fe)

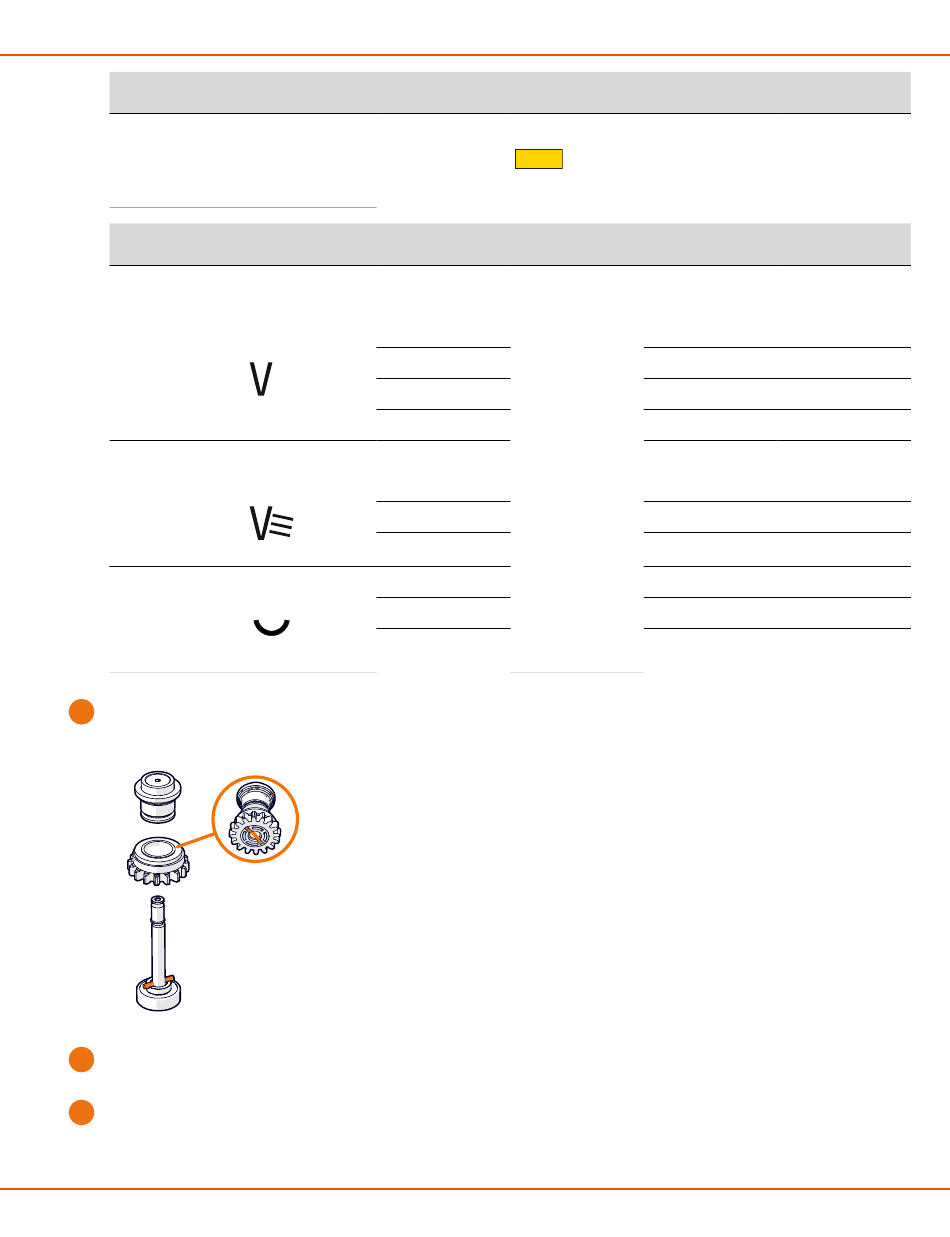

Place the feed rolls back to their places. Align the cut on a drive roll's bottom with the pin on the drive
5.
shaft.
Reattach the mounting pins to lock the drive and pressure rolls to their places. Align one of the cuts on
6.
the bottom of the pressure rolls' mounting pin with the stud on the mount.
Lower the pressure handle on the feed rolls and close the top cover.
7.
OPERATING MANUAL | EN
1.6
Feed roll profile Filler wire
diameter (mm)
V-groove 0.8−0.9
1.0
1.2
1.4
V-groove, 1.0
knurled
1.2
1.4−1.6
2.0
U-groove 1.0
1.2
1.6
Feed roll
identification
See the text on
the roll
42
W001071 W001072
Drive roll code Pressure roll
code
W006074 W006075
W006076 W006077
W004754 W004753
W006078 W006079
W006080 W006081
W006082 W006083
W006084 W006085
W006086 W006087
W006088 W006089
W006090 W006091
W006092 W006093
©
KEMPPI | 2018-09-28
2.3 Installation
