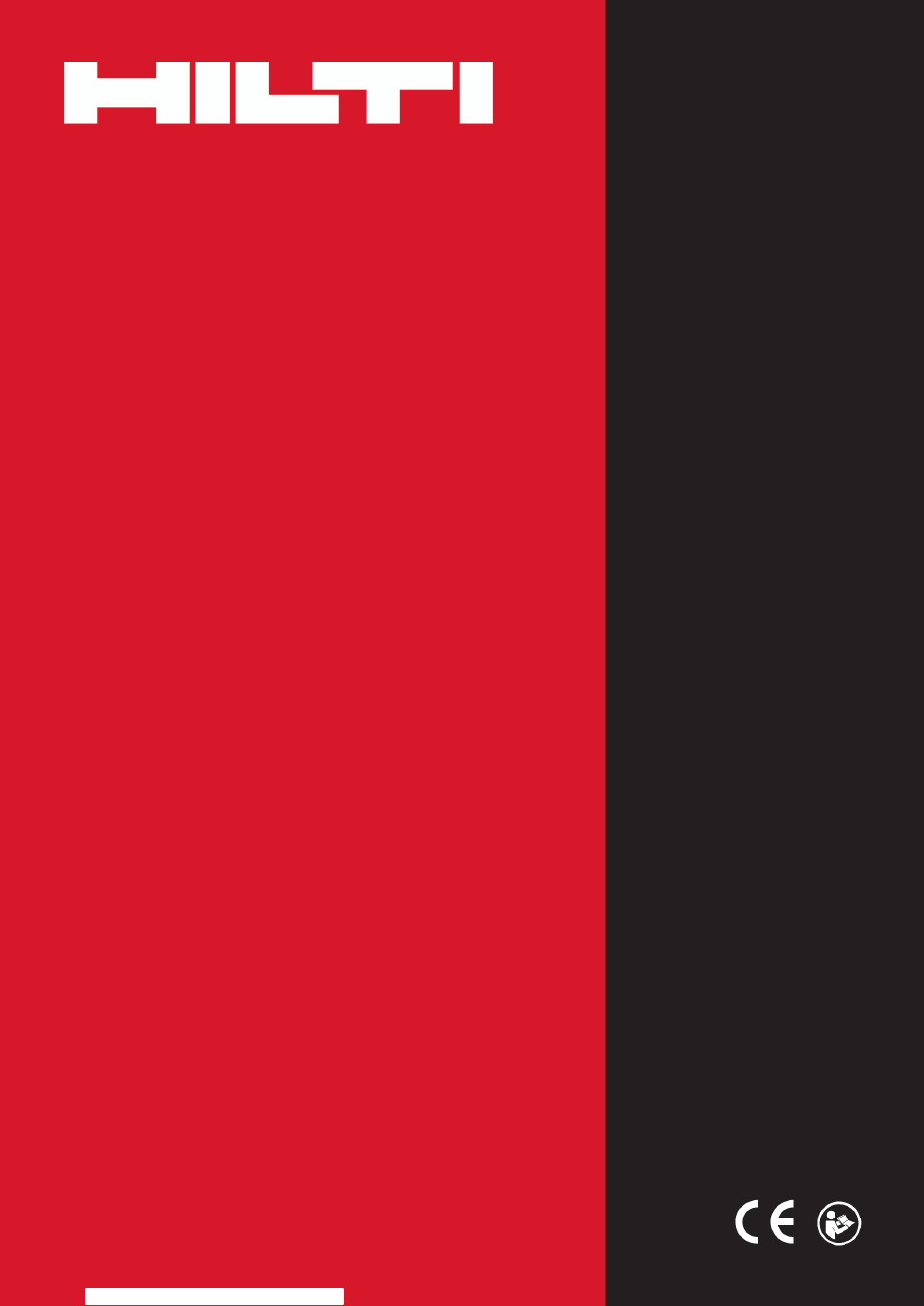

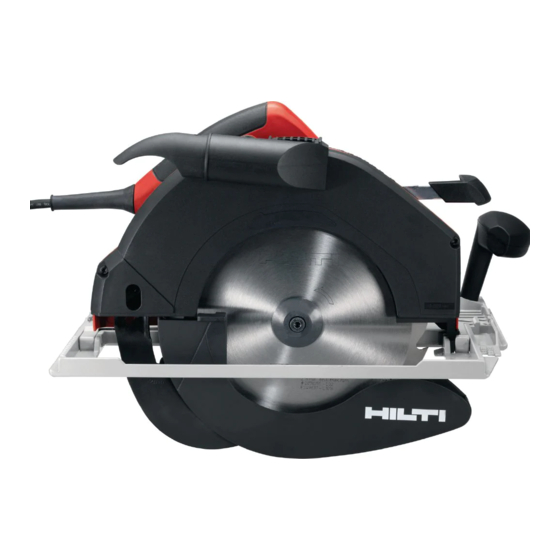

  • Page 1 WSC 85 English Printed: 07.09.2017 | Doc-Nr: PUB / 5138537 / 000 / 03...
  • Page 2 Printed: 07.09.2017 | Doc-Nr: PUB / 5138537 / 000 / 03...
  • Page 3 1.3 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
  • Page 4 A copy of the declaration of conformity can be found at the end of this documentation. The technical documentation is filed and stored here: Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | 86916 Kaufering, Germany 2 Safety 2.1 General safety precautions for power tools...
  • Page 5 Power tool use and care ▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. ▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
  • Page 6 ▶ Hold the saw firmly with both hands and position your arms to absorb kickback forces. Position yourself off to one side of the blade, never bring the blade into line with your body. Kickback can cause the saw to jump backwards, but by adopting suitable precautions the operator can control kickback forces.
  • Page 7 ▶ Always use the riving knife except when plunge cutting. Reinstall the riving knife as soon as you have finished the plunge cut. The riving knife interferes with plunge cutting and can cause kickback. ▶ The riving knife is effective only when it is in the kerf in the workpiece. The riving knife is ineffective for short cuts and cannot help prevent kickback in this situation.
  • Page 8 3 Description 3.1 Overview of the product English Printed: 07.09.2017 | Doc-Nr: PUB / 5138537 / 000 / 03...
  • Page 9 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.group 4 Technical data 4.1 Technical data...

  • Page 10: Operation

    WSC 85 Riving knife thickness (standard) 2 mm Weight in accordance with EPTA procedure 01 7.8 kg Protection class 4.2 Noise information and vibration values in accordance with EN 62841 The sound pressure and vibration values given in these instructions were measured in accordance with a standardized test and can be used to compare one power tool with another.
  • Page 11 4. Use the adjusting lever to set the cutting depth to 0. 5. Use the Allen key to turn the screw counter-clockwise to remove. 6. Remove the clamping flange. 7. Open the pivoting guard. 8. Hold the pivoting guard so that it does not move. 9.
  • Page 12 5.3 Adjusting the cutting depth 1. Release the lock. 2. Set the cutting depth with the lever for the cutting depth. ◁ The cutting depth is shown on the cutting depth scale. Note For a clean-edged cut, set cutting depth to the thickness of the material plus 2 mm. 3.
  • Page 13 1. Set the cutting depth. → page 10 ◁ Set the cutting depth to 0. 2. Position the saw on the workpiece. ◁ Bring the rear mark on the base plate into alignment with the cutting line. Note To reduce the risk of kickback, secure a stop piece to the workpiece directly behind the base plate. 3.
  • Page 14 5.5 Setting the cutting angle 1. Remove sawdust from the base plate. 2. Slacken the clamping screw. 3. Pivot the base plate to the desired cutting angle. ◁ The cutting angle is shown on the cutting angle scale. 4. Tighten the clamping screw. English Printed: 07.09.2017 | Doc-Nr: PUB / 5138537 / 000 / 03...
  • Page 15 5.6 Fitting / adjusting the rip fence (parallel guide) 1. To adjust the cutting width, slacken the clamping screws. 2. Push the parallel guide into the base plate as far as desired. 3. Tighten the clamping screws. 5.7 Switching the power tool on 1.
  • Page 16 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
  • Page 17 Printed: 07.09.2017 | Doc-Nr: PUB / 5138537 / 000 / 03...
  • Page 18 Hilti = registered trademark of Hilti Corp., Schaan 20170721 Printed: 07.09.2017 | Doc-Nr: PUB / 5138537 / 000 / 03...
